Release note October-December 2022

Tuesday, October 4, 2022

No.	Content	Target function	Abstract

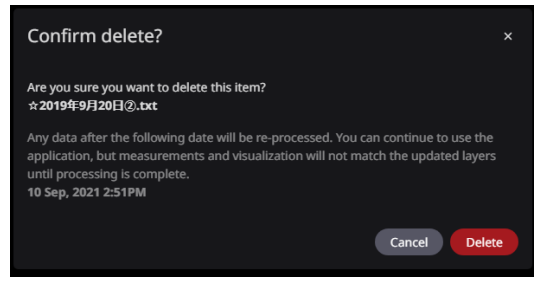

1	UI Improvement	Data layers	When deleting data on the Dashboard, a confirmation dialog has been improved. Previously, a confirmation message was simply displayed using the menu. This time, the confirmation dialog has been improved so that it is displayed when deleting data.
2	Bug fixing	Viewer	When registering DTM/Ortho data in a project that uses localization, an incorrect projection method was sometimes applied and the data was displayed in a different position than expected. This has been corrected to use the appropriate projection method.
3	Bug fixing	Viewer	When uploading multiple DTM files, the order of the files was sometimes swapped, causing errors in color conversion during the registration process. This has now been corrected so that it is set correctly.

２_<UI Improvement>


Tuesday, October 18, 2022

No.	Content	Target function	Abstract
1	Performance Improvement	Data layers	DTM/Ortho image acquisition speed has been increased by approximately 20%. The conventional method of sequential acquisition of topography and imagery has been changed to parallel processing, resulting in an approximately 20% improvement in operating speed. The processing time of survey data under certain conditions has been reduced.
2	Performance Improvement	Data layers	When an ortho image is imported, a job is executed in the background. In the past, survey data was not imported while this job was running. This time, the job has been modified to run in parallel.
3	Bug fixing	Data layers	The order in which various survey data were displayed was sometimes restored after reloading.
4	Bug fixing	Data layers	Fixed a case in which the tiling of orthoimages under certain conditions failed.

Saturday, November 5, 2022

No.	Content	Target function	Abstract
1	Bug fixing	Data layers	When uploading DTM files, display problems sometimes occurred, but the data integration process has been improved and they are now displayed properly
2	Performance Improvement	Data layers	When measuring polygons, a high load state occurred and the operation speed sometimes decreased, but this time the processing method has been improved to suppress the decrease in operation speed.
3	UI Improvement	Data layers	Improved to display a loading icon at the bottom of the screen while the viewer screen is loading.
4	Bug fixing	Data layers	Fixed the problem that some icons were not displayed correctly when using Safari.
５	Others	ー	he Smart Construction Dashboard icon has been updated.

１_<Bug fixing>
When uploading DTM files, display problems sometimes occurred, but the data integration process has
been improved and they are now displayed properly.

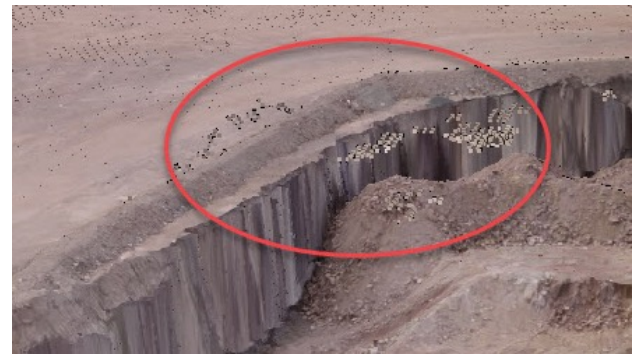

Example of a display that occurred before the release



３_<UI Improvement>
Improved to display a loading icon at the bottom of the screen while the viewer screen is loading.

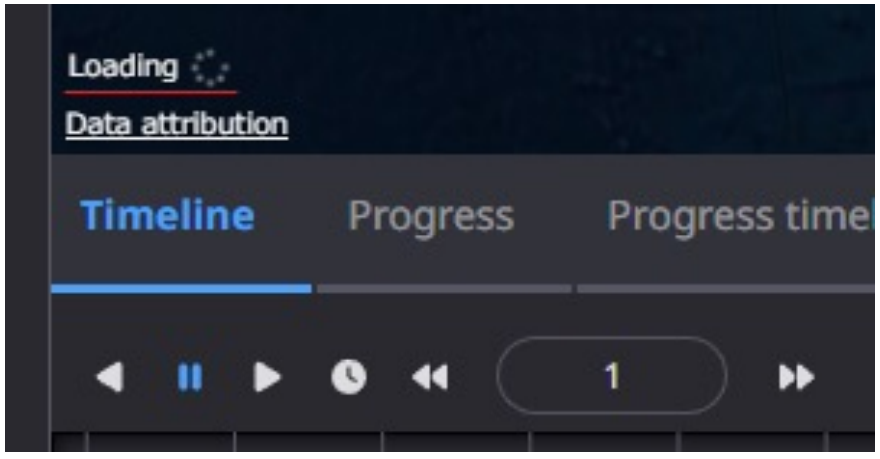

A loading icon display image (upper left of the image)

Tuesday, November 22, 2022

No.	Content	Target function	Abstract
1	Performance Improvement	Data layers	By reviewing the import process, the time it takes to display after uploading point cloud data has been greatly reduced (average about 40%).
2	Performance Improvement	Data layers	When importing a LandXML file with outlines created by external software, the boundaries could appear in unexpected areas. This time, it has been fixed so that it does not create a boundary line for the secondary outline.
3	UI Improvement	Viewer	You can now set the zoom position and direction for each project when you click the "Home" icon on the map.
4	Bug fixing	Data layers	Although registration of design data with long Japanese names sometimes failed, it has been corrected so that it can be registered correctly.
５	Bug fixing	Measurement	When creating an annotation and changing the display order, the changed order could not be saved correctly. This time, I fixed it so that it can be saved correctly.
6	Bug fixing	Data layers	When performing data linkage from Propeller's solution (Propeller), data was sometimes registered with incorrect height information, but with this improvement, it can now be read correctly.
７	Performance Improvement	Data layers	Coordinates in Trimble reference point files (dc) could be read incorrectly in certain cases. It will be fixed so that it reads correctly this time.
８	Performance Improvement	Machines	Improved the performance of the construction machine list display speed on Smart Construction Dashboard.

１_<Performance Improvement>

There are two steps to display point cloud data: (1) importing (uploading) point cloud data and (2) displaying
the imported point cloud data on the viewer (tiling).
• This improvement is related to ②. (* ① is highly dependent on communication speed)

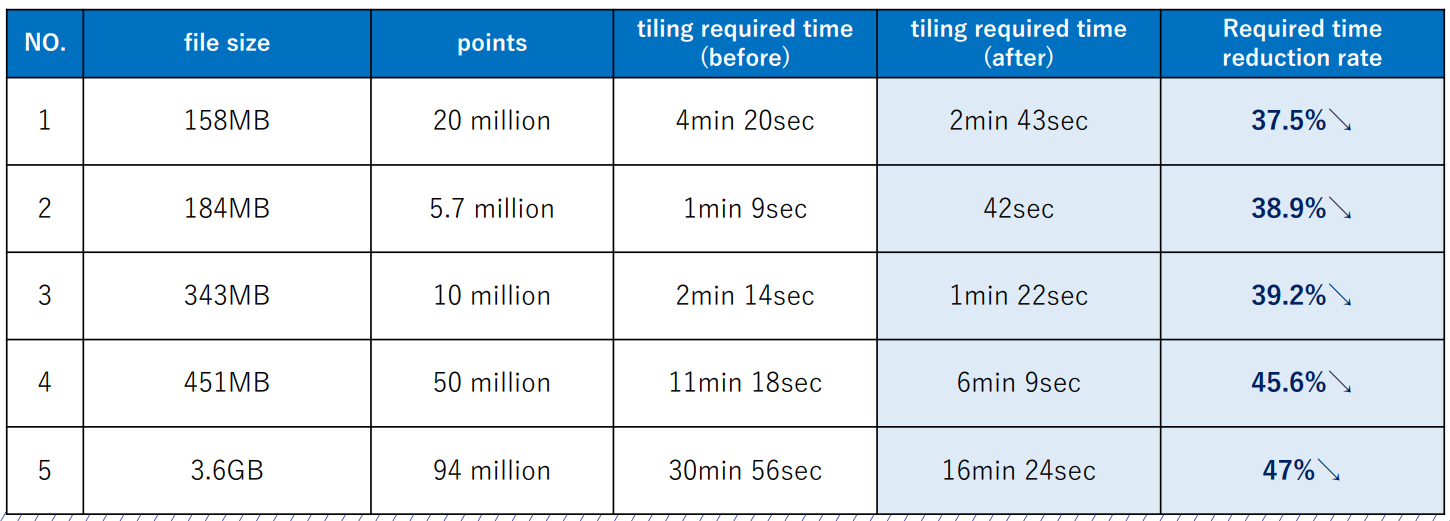

• The following data table is a reference value, and the required time may vary depending on factors such as the usage environment.

２_<Performance Improvement>

When design data is created in LandXML format with a specific tool, a supplementary outline may
be created for the drawing. Viewing this data on Smart Construction Dashboard could incorrectly
create borders for secondary perimeters.
Fixed to properly create borders for the original design surface.

original boundaries                                            Incorrectly created border in SCDB before this release

３_<UI Improvement>

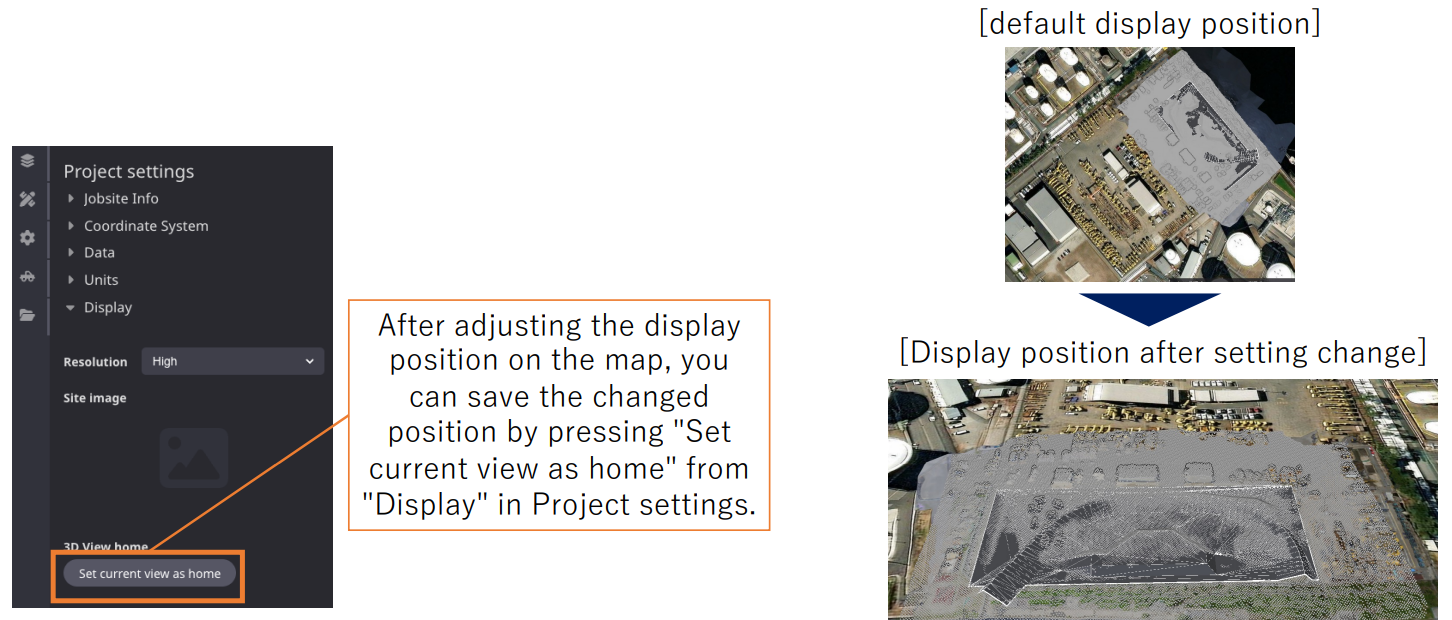

You can now freely set the center position, height, direction and angle for zooming when you click the
home icon for each project.

６_<Bug fixing>
When importing DTM/DSM data from the continental United States using Propeller Inc.'s
Propeller, the type of Geoid used did not match, and the height could not be read correctly.

[Vertical Datum]
EPSG 5703 (NAVD88 height)
[Geoid type used by each software]
Dashboard : Geoid18
Propeller : Geoid12b

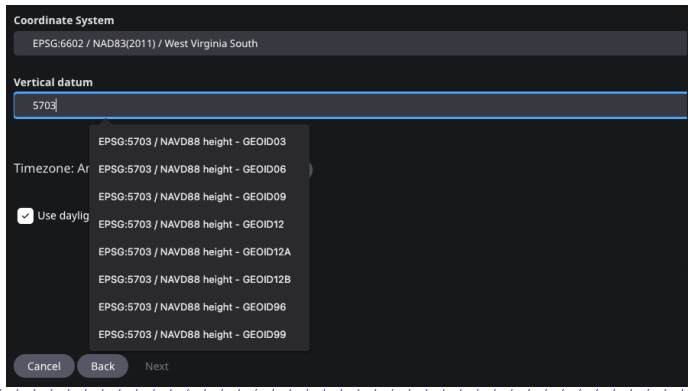

The geoids that can be used in EPSG 5703 (NAVD88height) are subdivided as shown on the right.
By selecting GEOID12B for the site CRS of the linked project, it is now possible to link correctly.
