2024/7/10
| No | Type | Function | Description |
| 1 | New | Data layer |
When the mouse cursor is hovered over an icon on the timeline, the type of registered data is displayed. User can check the timeline more easily. |
| 2 | New | Measurement | When using the Reference Volume feature, Users can now set values beyond the maximum and minimum terrain values (up to ±100m from the data threshold). This allows users to check the necessary soil volume even when the current topography requires significant embankment or excavation. |
| 3 | Bug fix | Measurement | When multiple assets were displayed on 2D cross section, the elevation difference was sometimes displayed incorrectly. This has been corrected so that they are displayed correctly. |
| 4 | Bug fix | Measurement | When re-importing annotations exported from the “Export Annotations” feature into Smart Construction Dashboard, the file name was not displayed correctly on the viewer. This has been fixed to display correctly. |
| 5 | Bug fix | Data layer | Some layers in a TP3 file containing multiple layers could not be displayed correctly on the 3D map. This has been corrected so that they can be displayed correctly. |
| 6 | Bug fix | Measurement | When certain characters were included in the annotation name, annotations could not be correctly output from the “Export Annotations” feature. This has been fixed to ensure correct output. |
| 7 | Bug fix | Measurement | Progress heatmaps were sometimes displayed on the Measurement screen. This has been corrected to display correctly. |
| 8 | Bug fix | Measurement Orders | The list of measurement orders could not be displayed correctly for a user with the "Admin" permission. This has been corrected so that it can be displayed properly. |

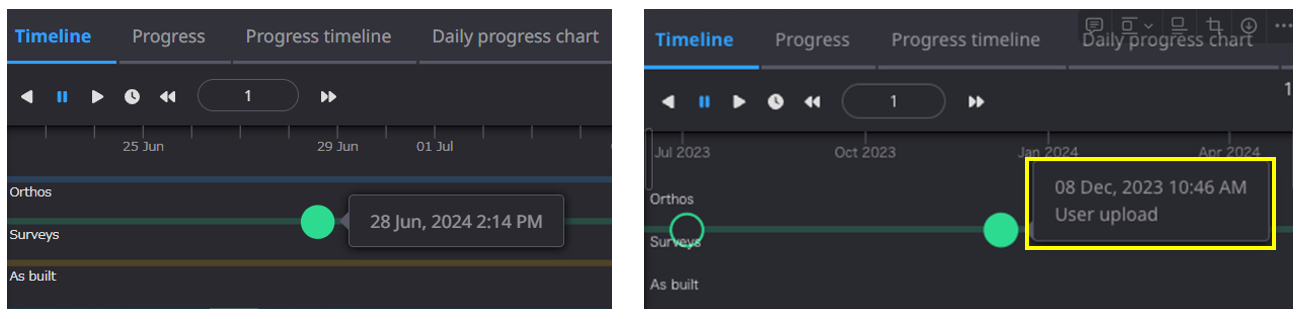

１．When the mouse cursor is hovered over an icon on the timeline, the type of registered data is displayed. User can check the timeline more easily.
before after

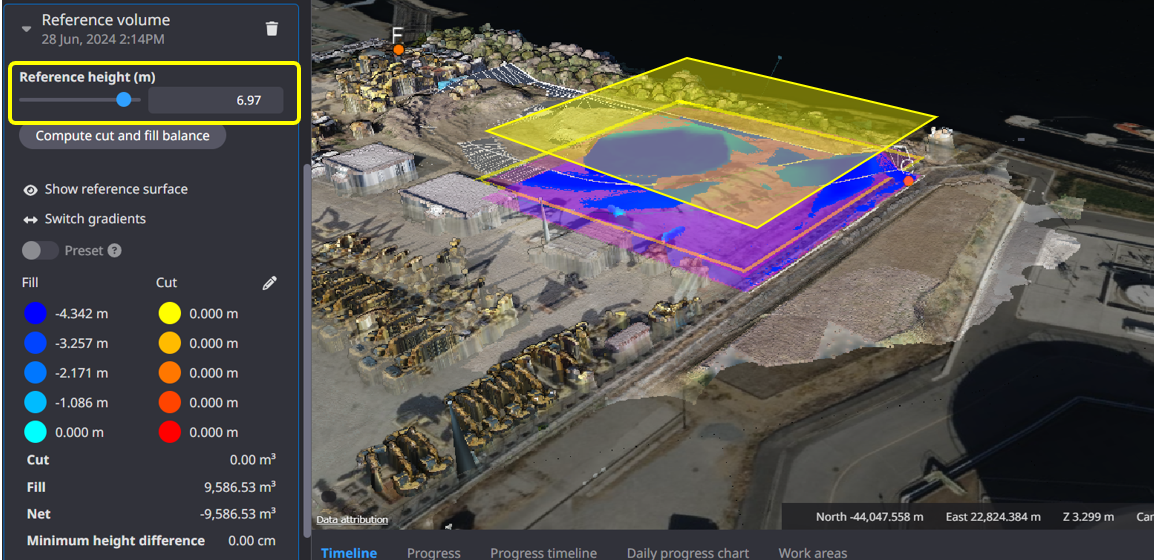

２．When using the Reference Volume feature, Users can now set values beyond the maximum and minimum terrain values (up to ±100m from the data threshold).
This allows users to check the necessary soil volume even when the current topography requires significant embankment or excavation.
2024/7/31
| No | Type | Function | Description |
| 1 | New | Measurement | A new line measurement , “Vertical difference,” has been added. The height difference of each vertex of a line can now be measured and displayed on the screen. |
| 2 | Bug fix | Measurement | When displaying heatmaps of progress and measurements, the heatmaps were sometimes displayed slightly off target. This has been corrected so that they are displayed correctly. |
| 3 | Bug fix | Measurement | In the color gradation settings for measurements, colors on the heatmap were not displayed properly when presets of gradation were used. This has been corrected so that they are displayed correctly. |
| 4 | Bug fix | PDF report | When the initial camera position of a project was updated, the updated camera position was not reflected in the PDF report. Fixed so that the report is created with the updated camera position. |
| 5 | Others | Label |
The following label updates in product have been made. -The expression of progress rate was changed to %. |
| 6 | New | Data layer | JXL format is now available when using localization in project settings. |
| 7 | Bug fix | Help |
[EU Customers Only] |
| 8 | Bug fix | Data layer (Survey Edit) | When deleting unnecessary objects by "Survey edit", a problem in which structures such as bridges over rivers could not be removed along the ground surface has been corrected. |
| 9 | New | Project Files | Smart Construction Groupware launch for North American Customers. |
Details of release items

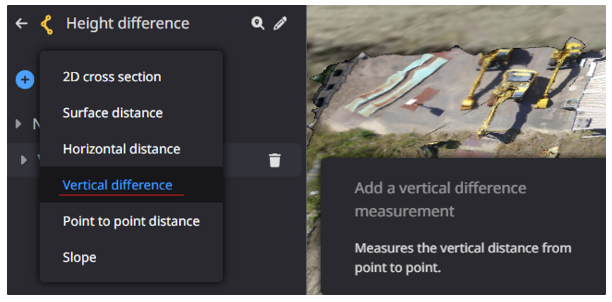

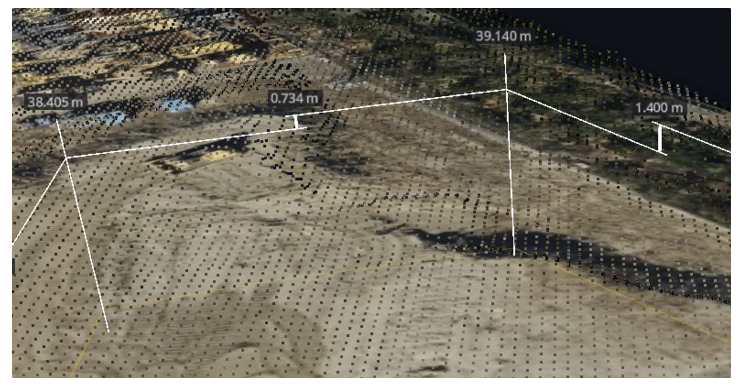

1. “Vertical Difference” measurement newly added to line annotation.
<Description>
It is now possible to calculate the vertical difference of each vertex of a line annotation.
1)Create a line annotation and measure the “Vertical difference”.
2)The height difference at each vertex is shown graphically.

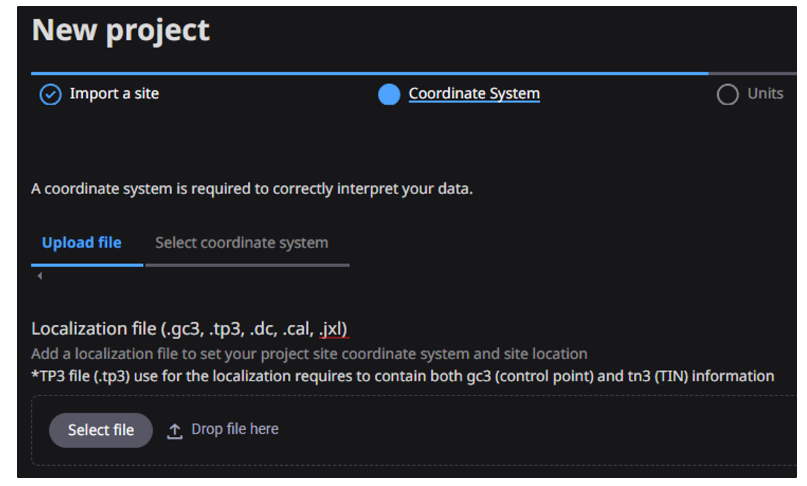

6. JXL format is now available as localization file
<Description>
JXL format is now supported as a file format for localization, making it more convenient to use in integration with Trimble.
8. Added the ability to add a Bleak line to the unwanted object removal area in the Survey Edit function.
<Description>
Previously, the point cloud editing function for removing unwanted objects could only attach a plane to the area to be removed, making it impossible to remove a bridge over a valley. Now, a function to add a break line to the unwanted object removal area has been added, allowing the user to specify the removal area more flexibly.

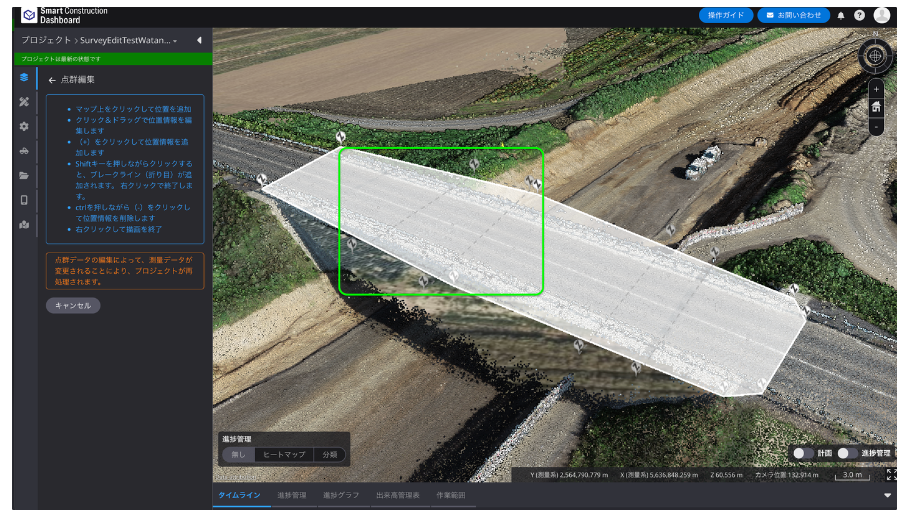

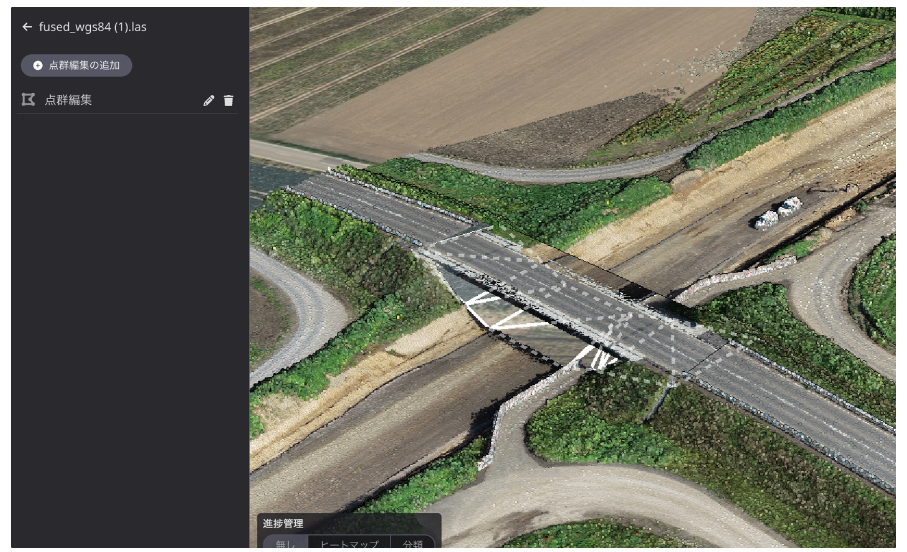

Specifying a Break line in Survey Edit
After specifying the removal area, break lines can be added by holding down Shift and clicking on the screen.
Specified break lines
Once new object removal area has created and saved, the removal area will be divided along the break line and start processing of the point cloud retiling.
2024/8/7
| No | Type | Function | Description |
| 1 | Improvement | Base Map |
The source map information will be changed. |
2024/8/21
| No | Type | Function | Description |
| 1 | New | PDF report | The following improvements have been made to the PDF report -A summary page has been added to make it easier to understand the overall status of the project. -A legend has been added to the 2D cross sections. |
| 2 | New | Data layer |
It is now possible to clip (extract) more detailed data within the target design when downloading the integrated terrain in LandXML format. |
| 3 | Bug fix | Data layer | The As-built process was sometimes not completed. This has been corrected so that the process will be completed correctly. |
| 4 | Bug fix | Measurement |
When displaying the heatmap of the measurement, the following problems could occur -The heatmap is displayed slightly out of alignment with the target surface. Corrected to display the heatmap properly. |
| 5 | Bug fix | Measurement |
When downloading annotations as DXF files, the following problems could occur -Annotation order and folder structure were not correct. Above problems were corrected so that the files could be converted and downloaded correctly. |
| 6 | Bug fix | other | When downloading screenshots from the left sidebar, screens could not be downloaded correctly. This has been fixed properly. |
| 7 | Bug fix | Data layer | Linework could not be converted to annotations when the layer name contained double-byte characters. This has been corrected so that it can be converted correctly. |
| 8 | Bug fix | Data layer | The calculation results of the smart volume sometimes changed according to the height of the camera on the 3D map. This has been corrected so that the result of calculation become same. |
| 9 | Others | Data layer | Changed the base Map |
Details of release items

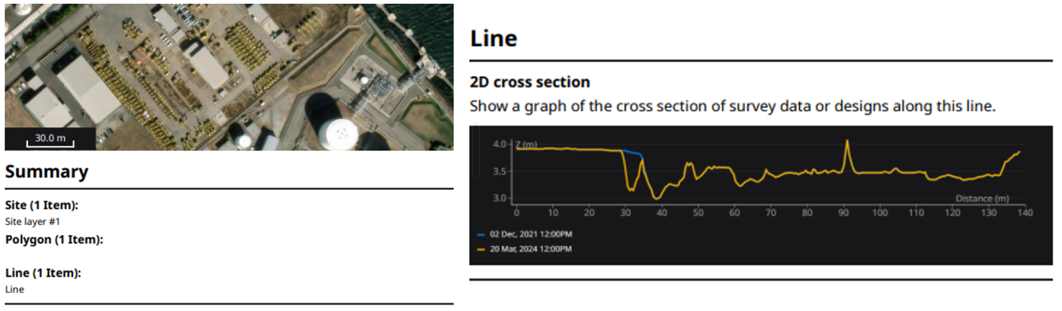

1. Improve PDF reporting.
The following improvements have been made to make PDF reports easier to understand.
Added summary page
The summary page of the report can now be displayed.
Added legend for 2d cross section
When displaying a 2d cross section view, legend is now displayed in the lower left corner of the image.
2. It is now possible to clip (extract) more detailed data within the target design when downloading the integrated terrain in LandXML format.
-
Data is extracted and downloaded based on the selected design data within the target design area.
-
It is now possible to download more detailed data (0.5m mesh TIN).

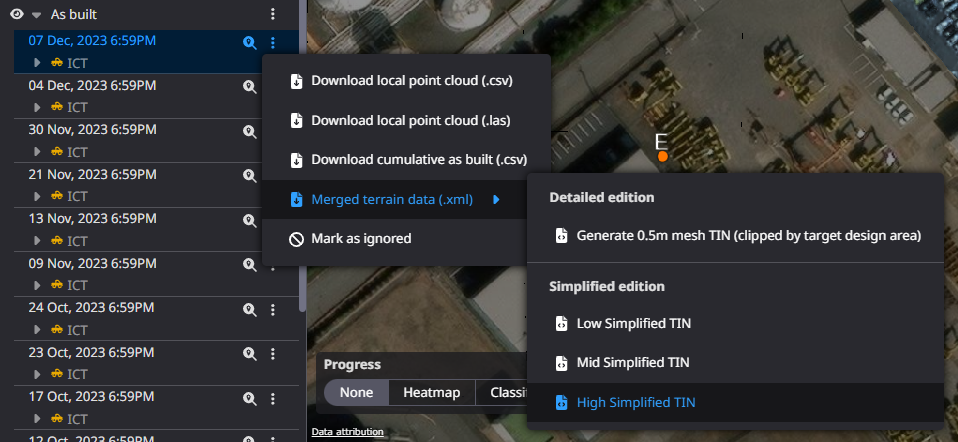

How to use
-
Select the option button for each survey data or construction history data within the data layer.
-
Choose “Download merged...” from the options menu.
-

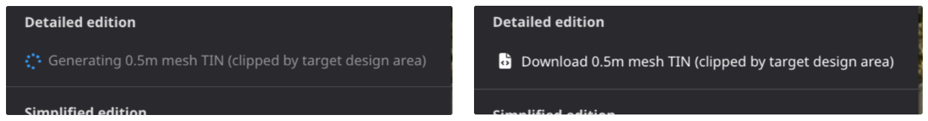

In the expanded menu, select the “Generate 0.5m mesh TIN data (clipped by target design area)” button. The data generation process will begin.
-
Once data generation is complete, the button name will change to “Download 0.5m mesh TIN data (clipped by target design area).” Click the button to start the download.
UI Change with this release
-
In the options menu, change the wording from “Merged terrain data.(xml)” to "simplified edition"
-
In the expanded menu, relocate the item
Low/ Mid / High simplified TIN
in preparation Ready for download

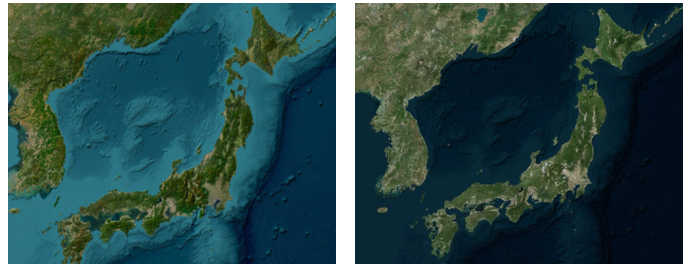

9. Change The base Map
The base map has been changed.
New Before
2024/9/11
| No | Type | Function | Description |
| 1 | Enhancement | Measurement | When measuring the “Vertical difference” of a line, the expression displayed in the left panel has been improved for easier understanding. |
| 2 | Bug fix | Data layer |
After processing As-built data, the loading icon would remain on some As-built data. Once processing is complete, the as-built status has been fixed to clear correctly. |
| 3 | Bug fix | File transfer | When user sent files to machine, the file ID was sometimes displayed as file name in the notification. This has been corrected so that the file name is displayed correctly. |
| 4 | Bug fix | Measurement |
In projects with many measurements registered, it sometimes took 4-5 seconds to return from the measurement details screen to the list screen. This has been corrected so that the transition can be made quickly. |
