Quick Start Guide: Mavic 3 Enterprise

Recommended drone and settings

Model:Mavic 3 Enterprise

Conditions: For GSD 1cm

Flight Plan Setting 1

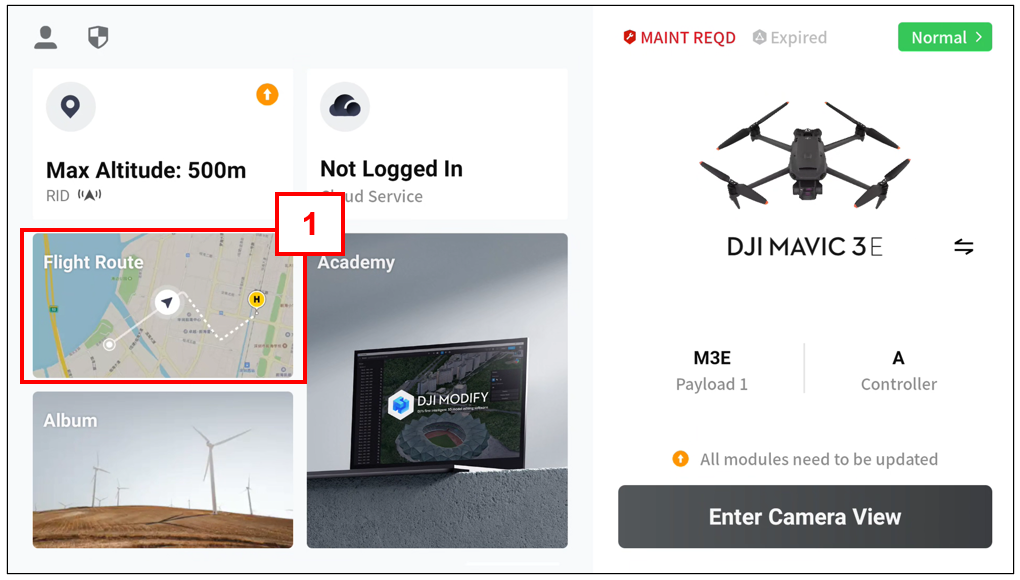

1．select the Flight Route .

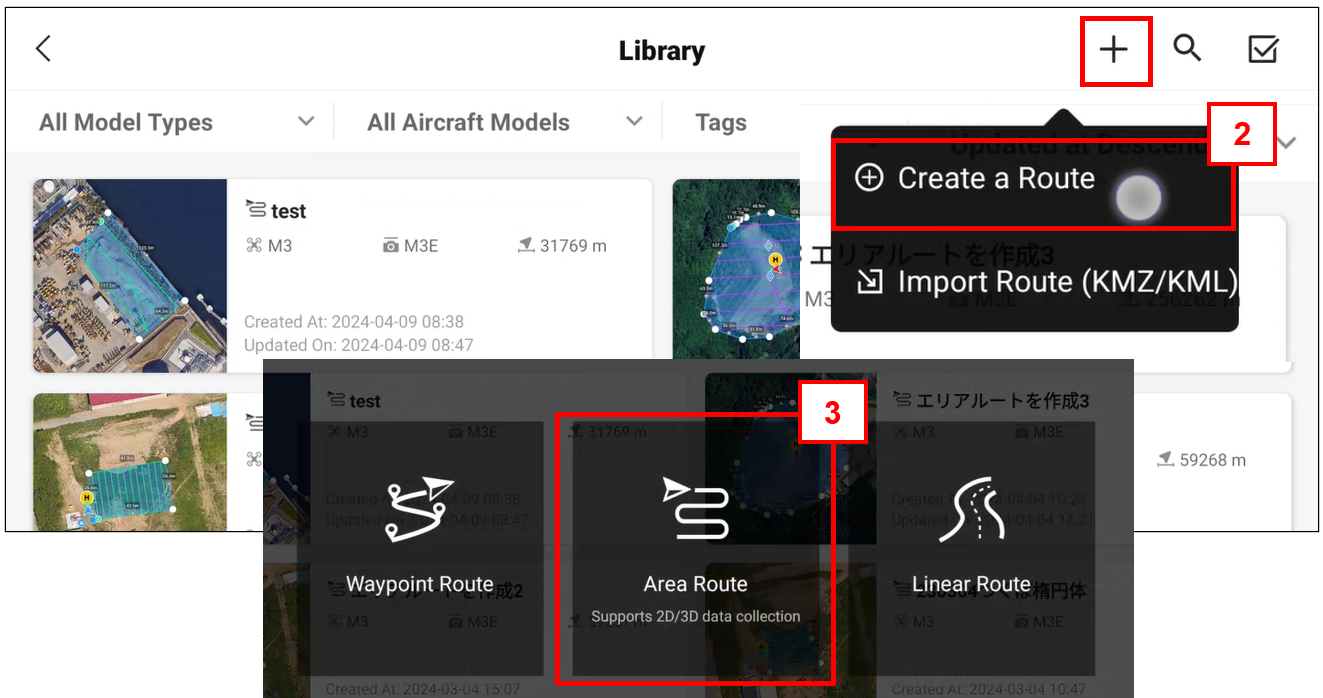

2．Tap the plus button and select the Create a Route.
3．select the Area Route.

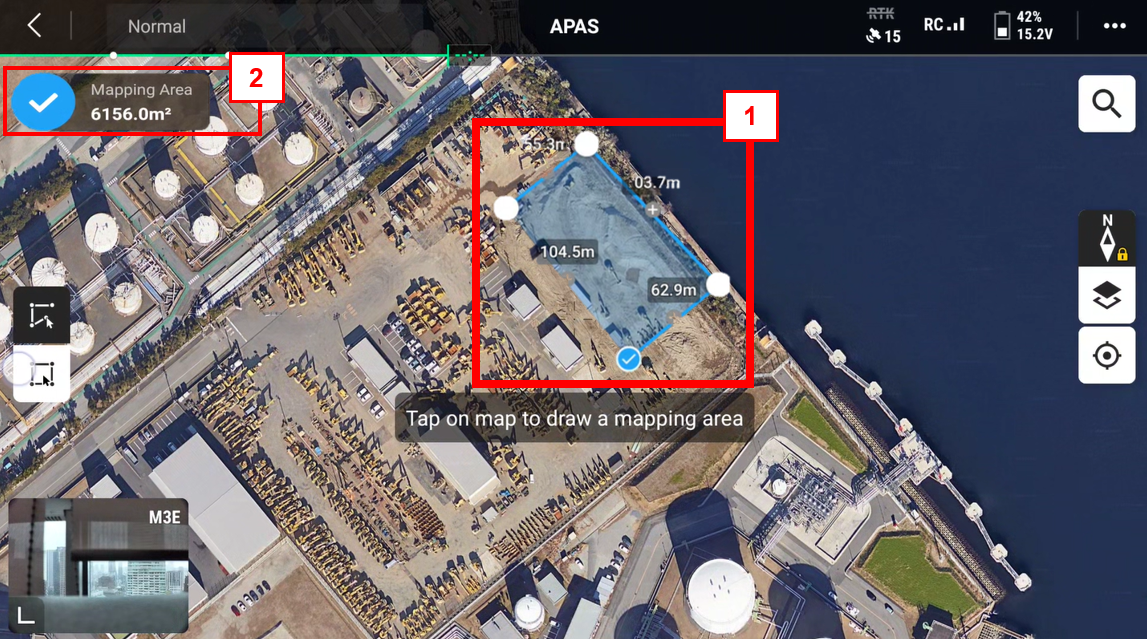

1．Draw a mappint area.
2．tap the mapping area after determine.

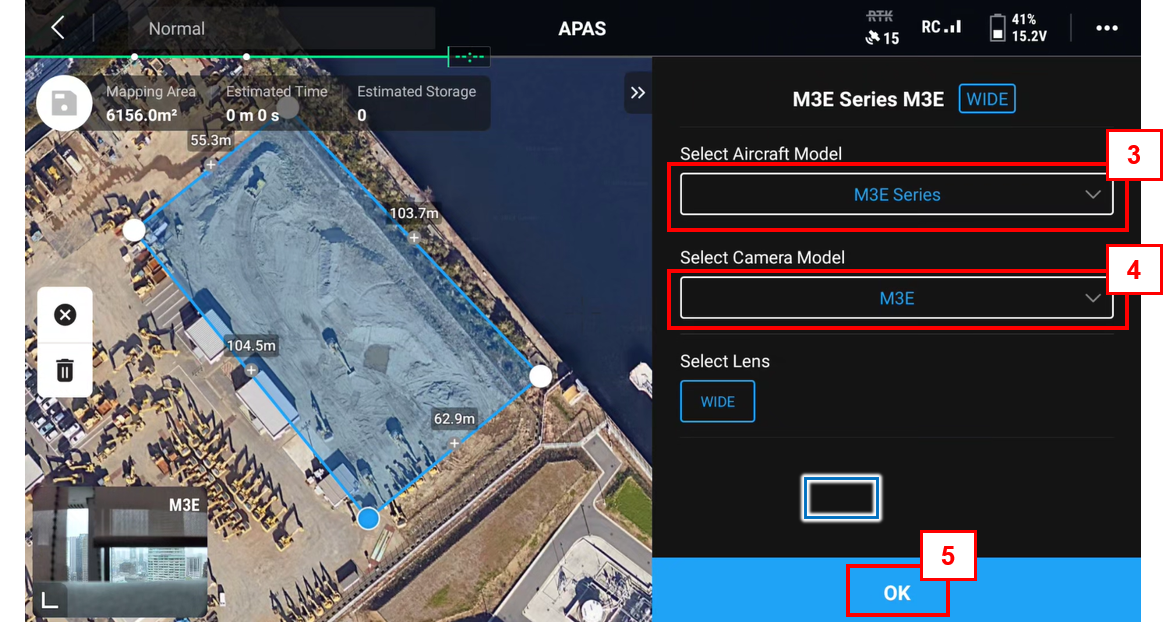

3．select the M3E Series.
4．select the M3E.
5．tap the OK button.

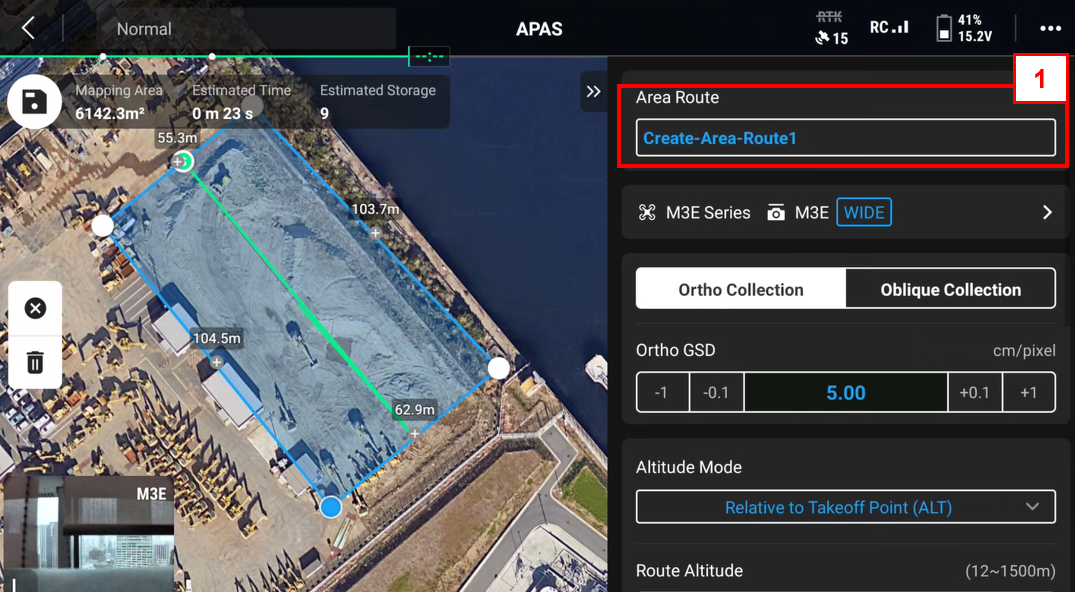

1．Enter the name of the flight plan.
The name of the flight plan is used for the name of the photo folder on the SD card. Do not use the following characters.

# pound	% percent	& ampersand	{ left curly bracket	} right curly bracket
\ back slash	< left angle bracket	> right angle bracket	* asterisk	? question mark
/ forward slash	blank spaces	$ dollar sign	! exclamation　point	' single quotes
" double quotes	: colon	@ at sign	+ plus sign	` backtick
| pipe	= equal sign	emojis	alt codes

Flight Plan Setting 2

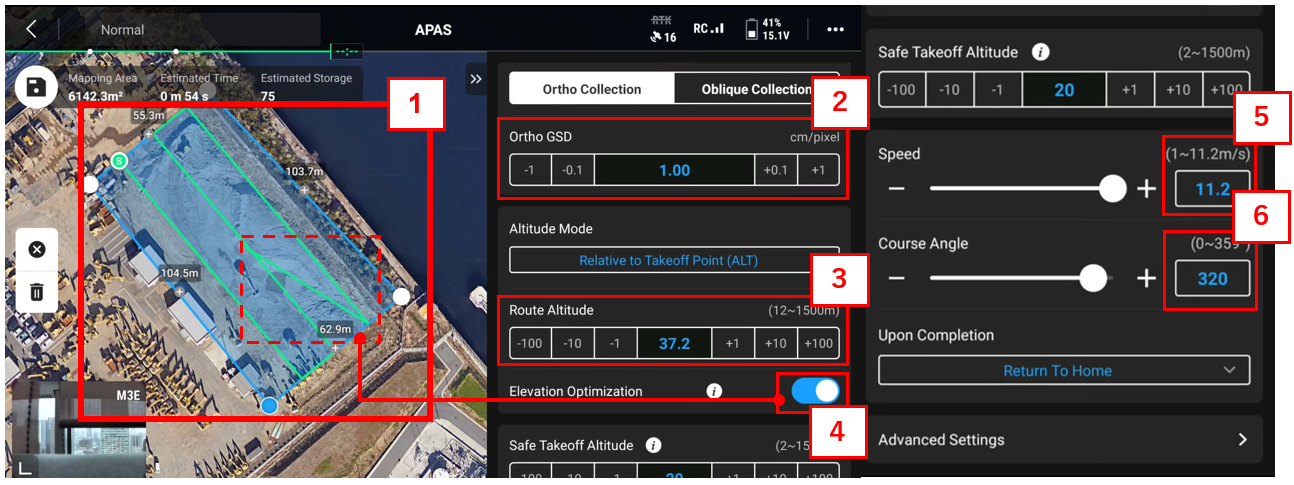

1．The green line is the flight path.
This is automatically calculated based on the mapping area, GSD and photo wrap rate settings.
2．Change settings according to resolution
3．The altitude is automatically calculated according to the GSD.
If you change the flight altitude, the GSD is automatically calculated.
4．Setting for oblique flight.
Please switch ON for higher accuracy.
5．Maximum flight speed is not a problem. Higher speeds may cause the flight path to be rounded and the drone to shake more. If high accuracy is desired, the speed must be reduced.
6．The direction of the flight path can be changed.

Flight Plan Setting 3

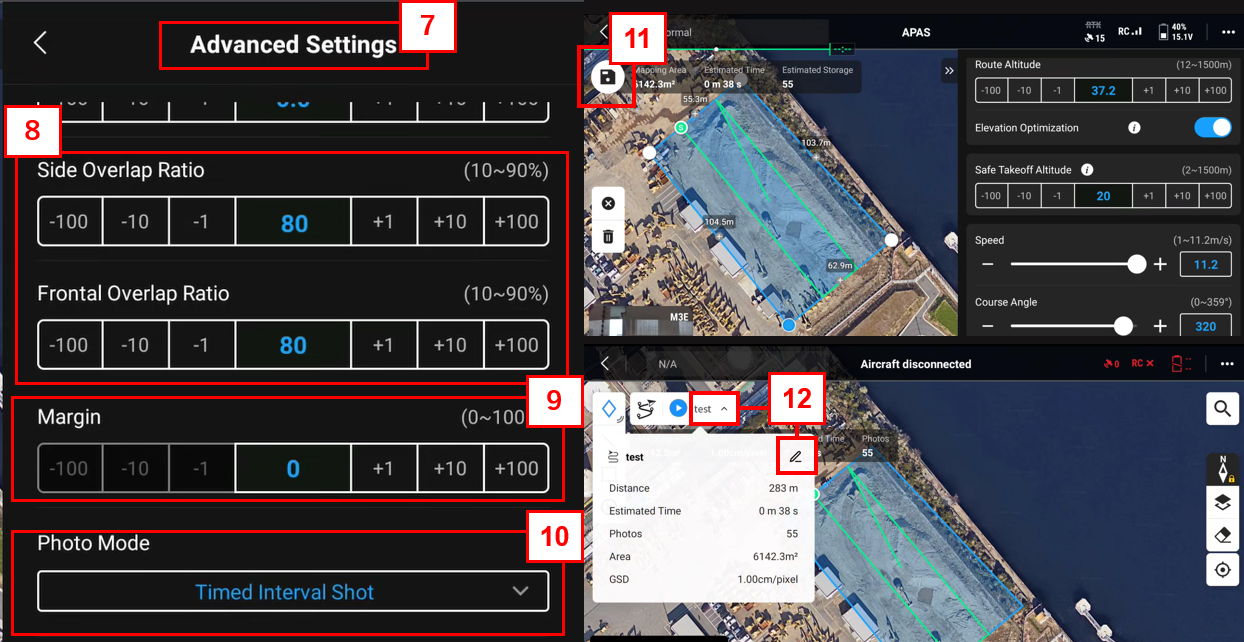

7．Tap the Advanced setting.
8．Set up Side overap Ratio and Frontal Overlap Ratio. (recommend Side 80% Frontal 80%)
9．Set up to fly wider around the perimeter of the mapping area.
10．The Distance Interval Shot is recommended as it reduces the number of unnecessary photos.

Editing after setup
11．Tap the save icon.
12.drill down the menu and tap the edit icon.

Flight Plan Setting 4

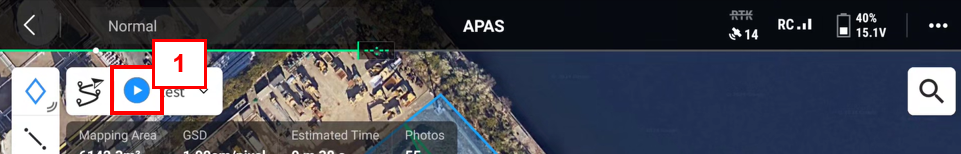

1.Tap the Flight execution.

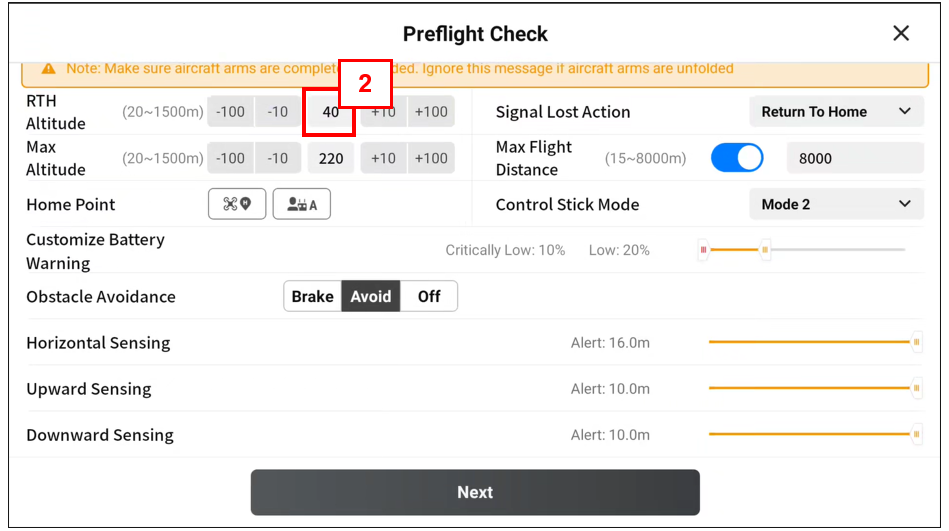

2.If this value is set equal to the height of the flight, the flight time is reduced.

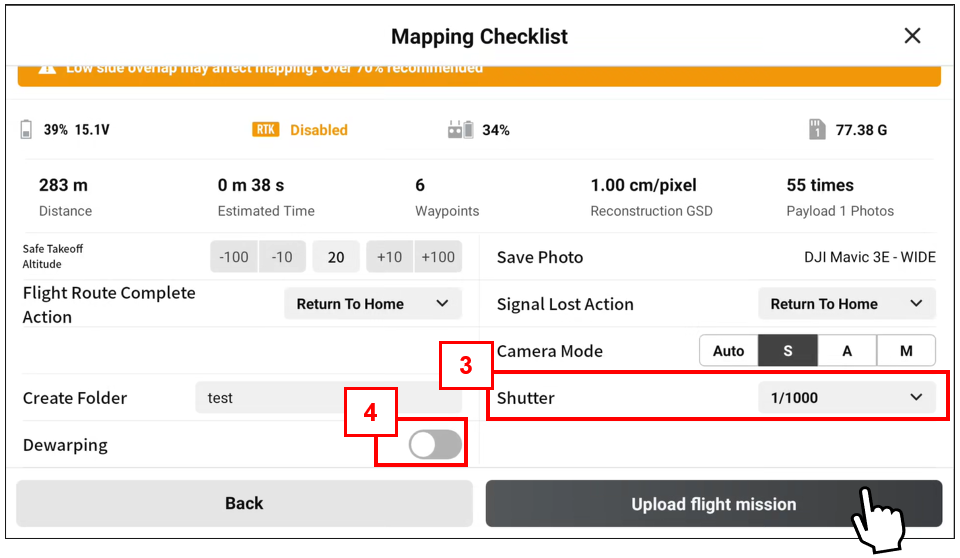

3.Set to 1/1000 to suppress motion blur.
4.select the trun off.

Supplementation

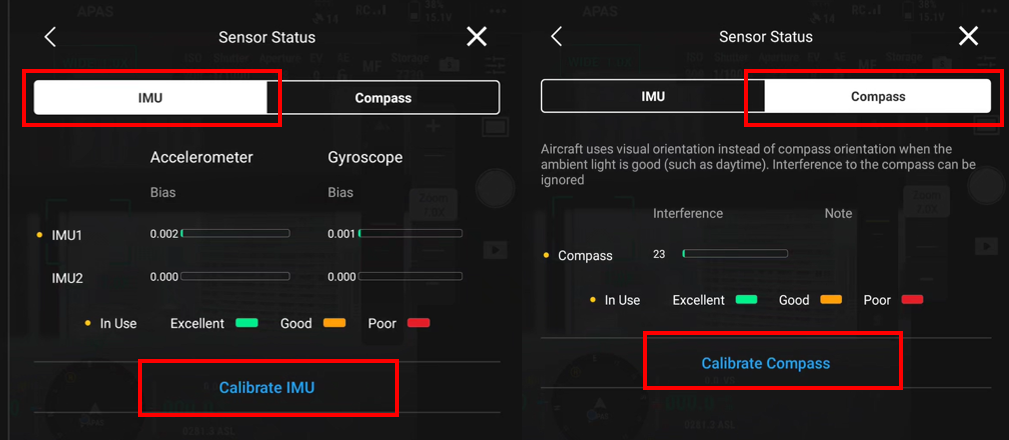

Sensor calibration
It is recommended that the drone body be calibrated periodically.

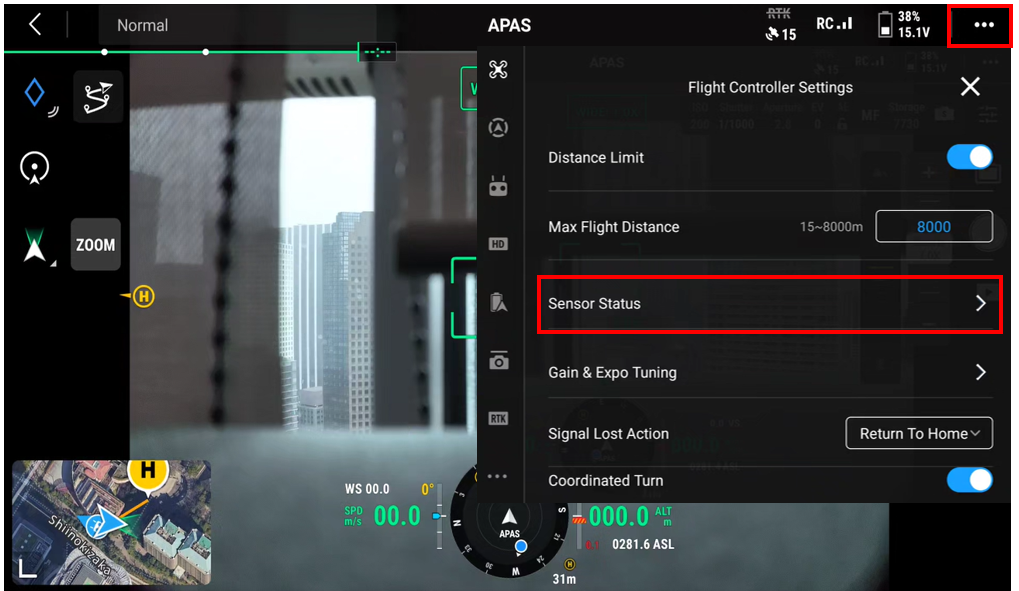

select the sensor status from menu button.


Calibrate the IMU and Conmpass
