We are pleased to announce the release of Smart Construction Dashboard periodic update with the following dates and details
2024/5/24
| No | Type | Function | Description |
| 1 | New | PDF Report |
When creating PDF reports, users can now choose whether to use point clouds (meshes) or ortho images for DTM survey data. If only the map is displayed when export to the PDF report, it will be import correctly by re-load (in advance examination, it was necessary re-load 2 times-4 times per 10times) |
| 2 | New | Data layer | When clamping linework which includes a large number of coordinates onto surface, a performance warning message is now displayed at the under the checkbox. |
| 3 | Bug fix | Project | The TP3 file used to create a project must contain TIN information. This information is now displayed on the project registration screen. |
| 4 | Bug fix | Measurement | The button for adding measurements to annotations has been moved to the top of the screen, making it easier for users to press. |
| 5 | Bug fix | Data layer | When registering a large number of ortho images all at once, the processing sometimes resulted in an error on the server side. Fixed so that ortho images could be registered correctly. |
| 6 | Bug fix | Machine | When some construction machine’s information could not be acquired, the loading icon would always remain displayed. This has been corrected to correctly handle the error. |
| 7 | Bug fix | Measurement | When displaying a 2D cross-sectional view, the elevation differences were not displayed correctly when user uses German, French, or Czech. This has been corrected to display them correctly. |
| 8 | Bug fix | Measurement |
Density registered for the soil type for measurement were not shown correctly in the labels of the measurement results. Corrected so that the density of the soil type is correctly displayed on the labels of the measurement results. |

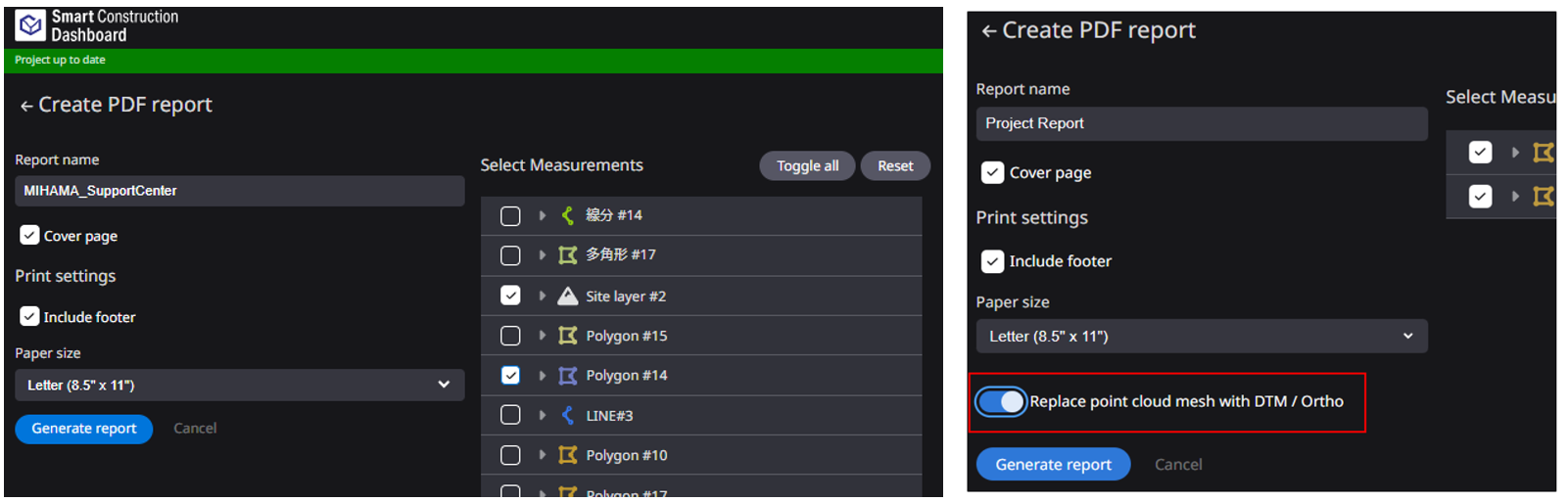

1. Ortho images are now available for DTM survey in PDF reports
<Description>
If project includes DTM survey, user can know select the data type to use for the PDF report from point cloud(mesh) and ortho image.
before after

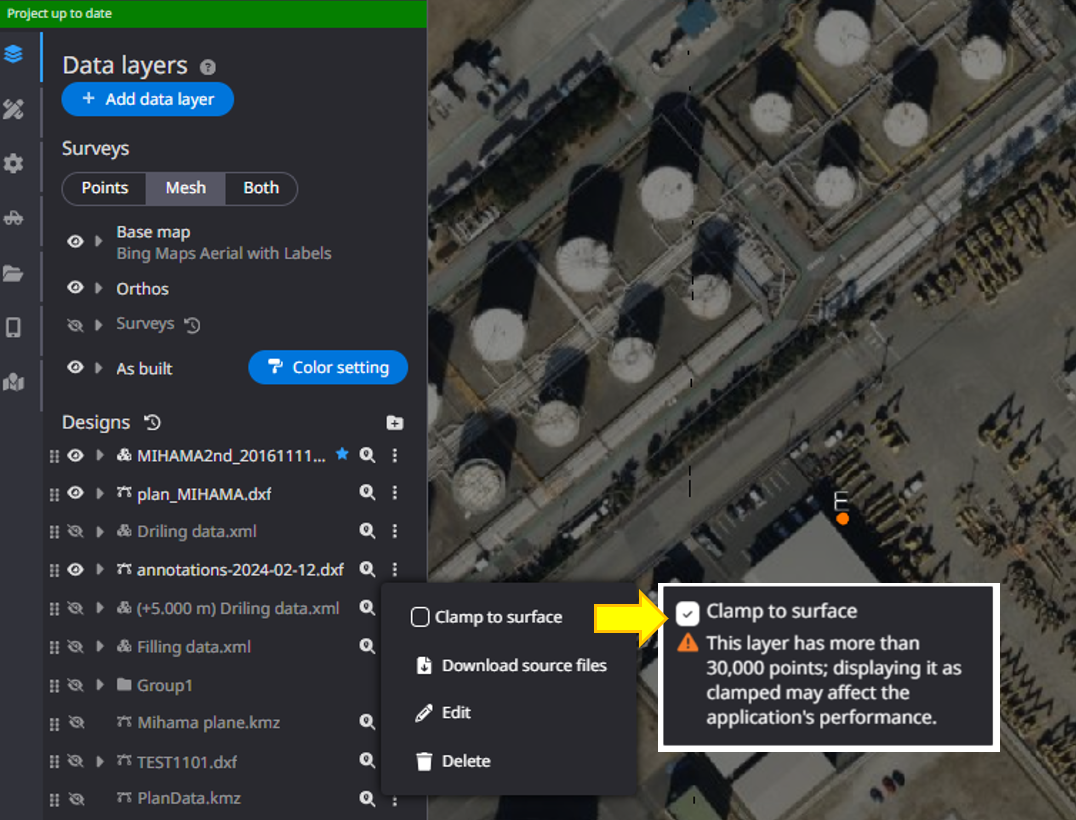

2. Warning message is now display when turning on clamping for Linework with a large number of points
2024/6/11
| No | Type | Function | Description |
| 1 | New | Data layer |
The display after pressing the 'Add data layer' button has been changed to a simplified format. |
| 2 | Bug fix | Measurement | Heat maps used for progress and measurement can now be displayed transparently. User can check the heat map by comparing it with the topography. |
| 3 | Bug fix | Measurement |
The execution method of data measurement and calculation has been improved. (Measurement is still available while the project is being updated.) |
| 4 | Bug fix | Data layer | Geoid hBG03 (Belgium) is now available. |
| 5 | Bug fix | Data layer | When survey data in DTM format was registered, it was sometimes automatically displayed transparently. This has been corrected so that users can set it up correctly. |
| 6 | Bug fix | PDF report | When creating PDF reports, some survey data and progress labels were not displayed correctly. This has been corrected so that they are displayed correctly. |
| 7 | Bug fix | Data layer |
When registering As-built, an error occurred and registration could not be completed. This has been corrected and is now correctly registered. |
Details of release items

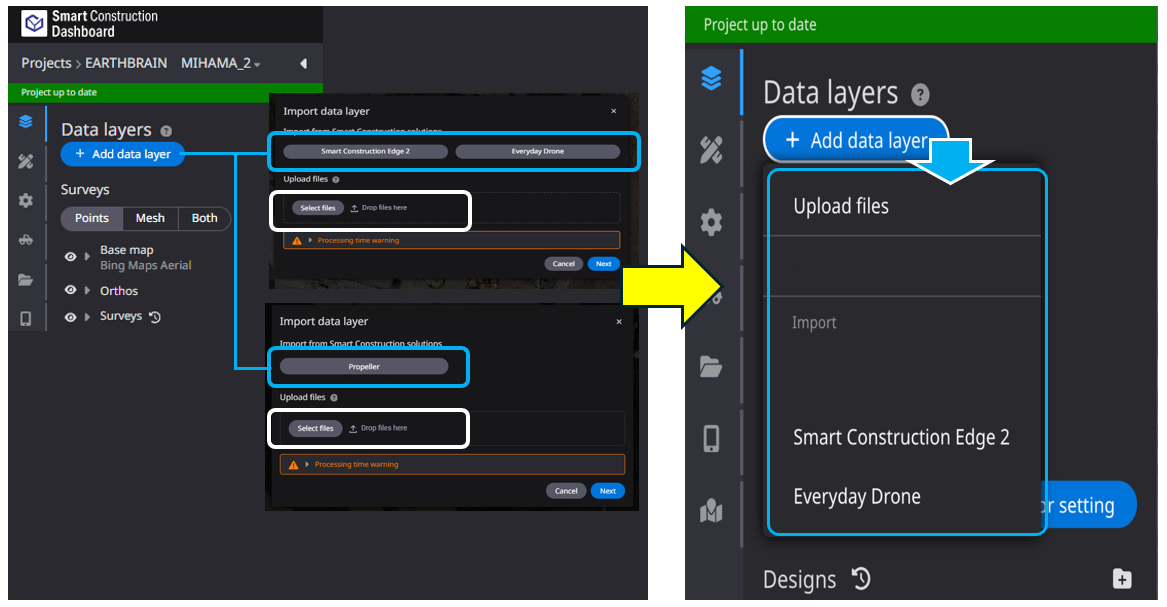

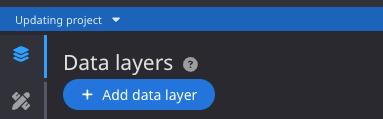

1. The display after pressing the 'Add data layer' button has been changed to a simplified format.
Description
- The display for registering data in the Smart Construction Dashboard has been changed to a simpler format.
- Previously, after pressing the 'Add data layer' button, a separate screen opened for data capture and file upload. In the new version, a menu is displayed below the button.
- The menu content displayed varies depending on the content of the customer's license.
before after

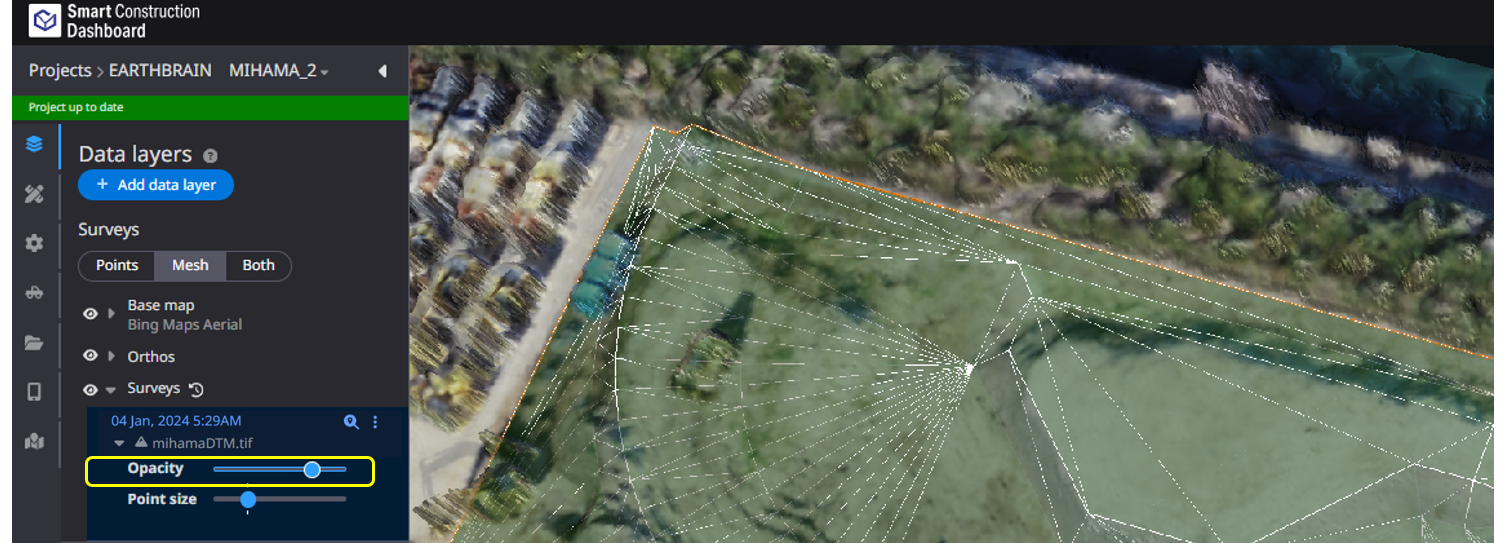

2. Heatmap can be displayed transparently
Description
- Heat maps used for progress and measurement can now be displayed transparently. User can check the heat map by comparing it with the topography.
2024/6/27
| No | Type | Function | Description |
| 1 | Bug fix | Measurement |
Annotation and measurement operations were sometimes very slow in projects with many annotations registered. This has been fixed so that they can be displayed correctly. |
| 2 | Bug fix | Measurement | When creating a measurement and displaying a heat map, it was not displayed for some areas of the target design. This has been fixed so that heatmaps are displayed for all areas. |
| 3 | Bug fix | Data layer | When the data layer screen was displayed after the measurement screen was viewed, design data that had been hidden could be shown. This has been fixed so that non-displayed design data is not visible. |
| 4 | improvement | Action guide |
Fixed so that when clicking on Action Guide, the user is redirected to a dedicated KAL page. |
