Introduction

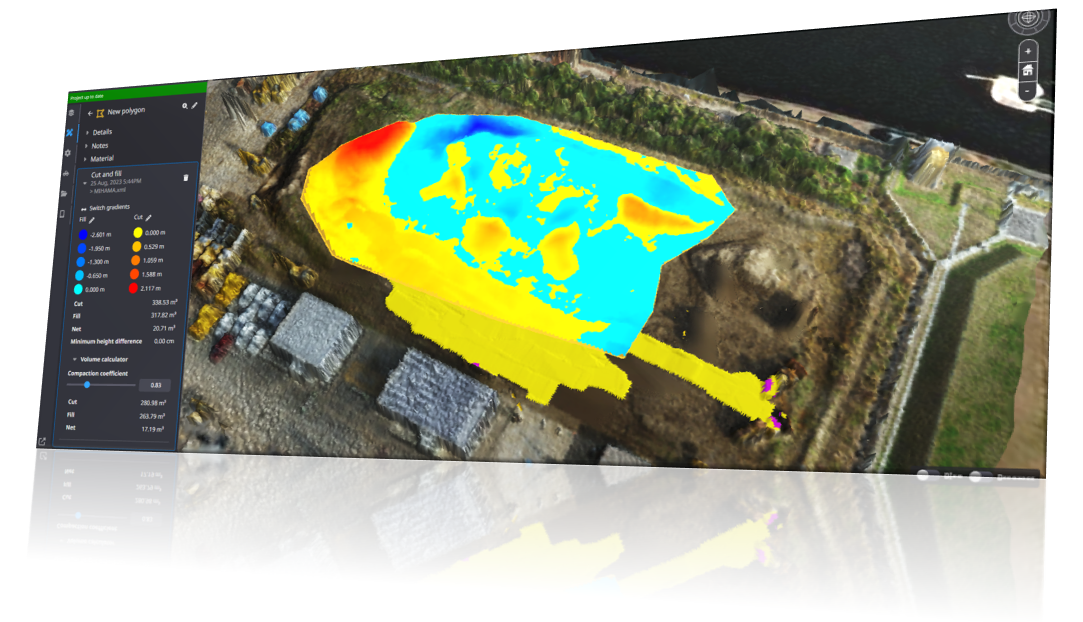

This article provides a detailed explanation on how to measure the cut and fill volume in a selected area.
By comparing the reference topography data with the target shape, it is possible to determine the excess or deficiency of soil volume relative to the target shape.
feature
The earthwork calculation area is defined by the overlap between the selected “Source shape” and the data chosen as the “target shape”.
Earthwork calculations determine cut and fill volumes based on the target shape.
Calculations are performed using representative points within a 50cm grid.
This one-to-one data comparison yields straightforward earthwork results.

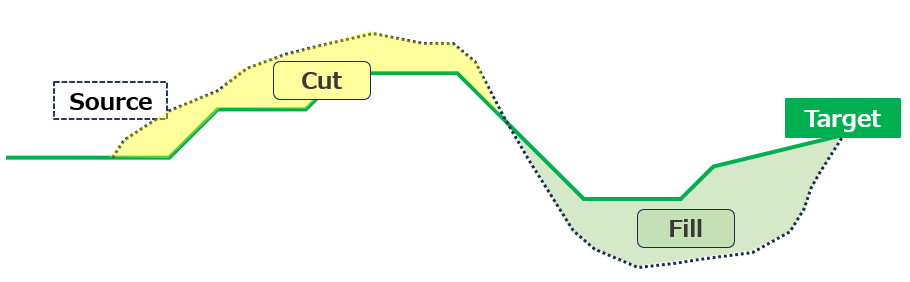

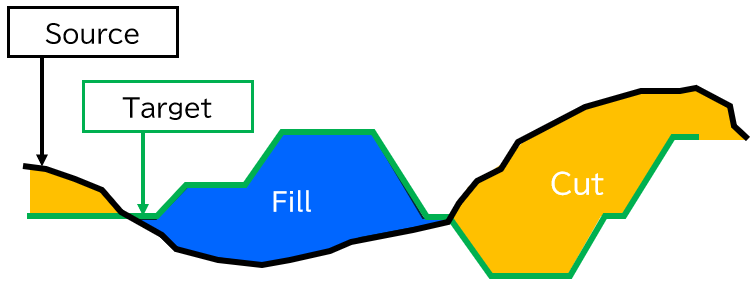

Schematic of Source shape (selected terrain data) and target terrain (design data)

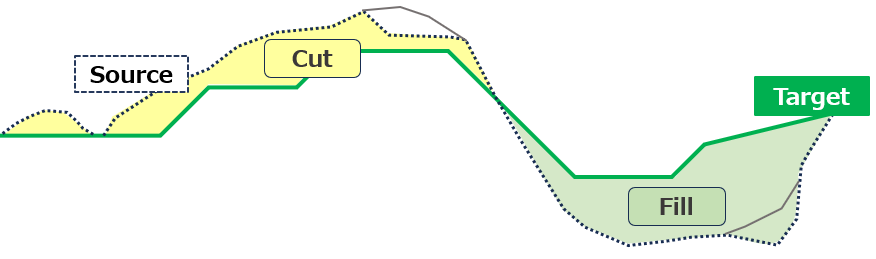

Pre-construction case

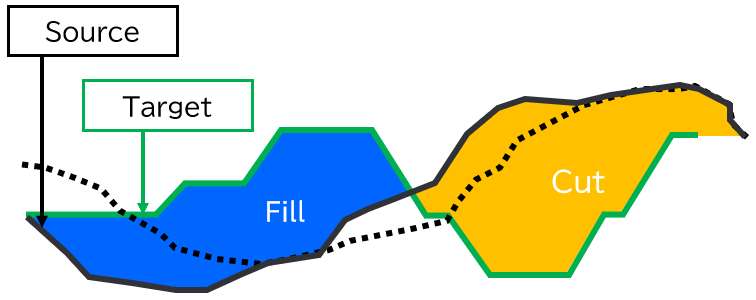

Post-Construction Examples
【Comparison with terrain digging in temporary storage/fill areas after initial digging】
Procedures and Explanation

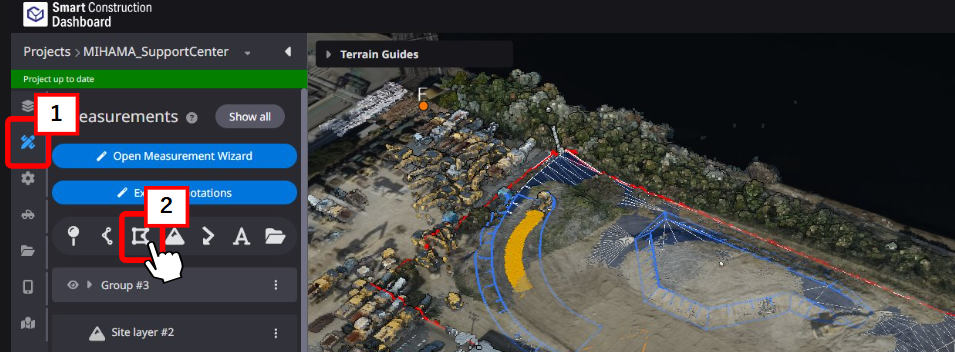

1. Click on the 【"1" measurement icon】 in the side panel.
2. Select 【"2" Polygon 】 from the annotations.
Polygon: Measurement tool for a partial area

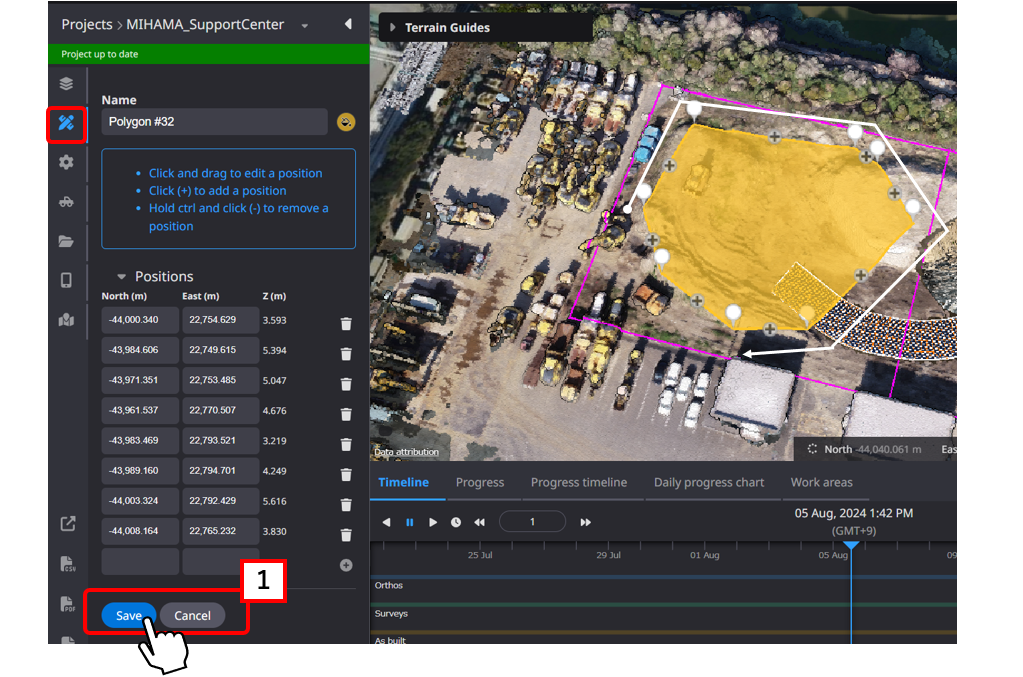

Left mouse click to enclose the desired area, right mouse click to exit and 【"1" Save.】
Click here to customize annotation information.

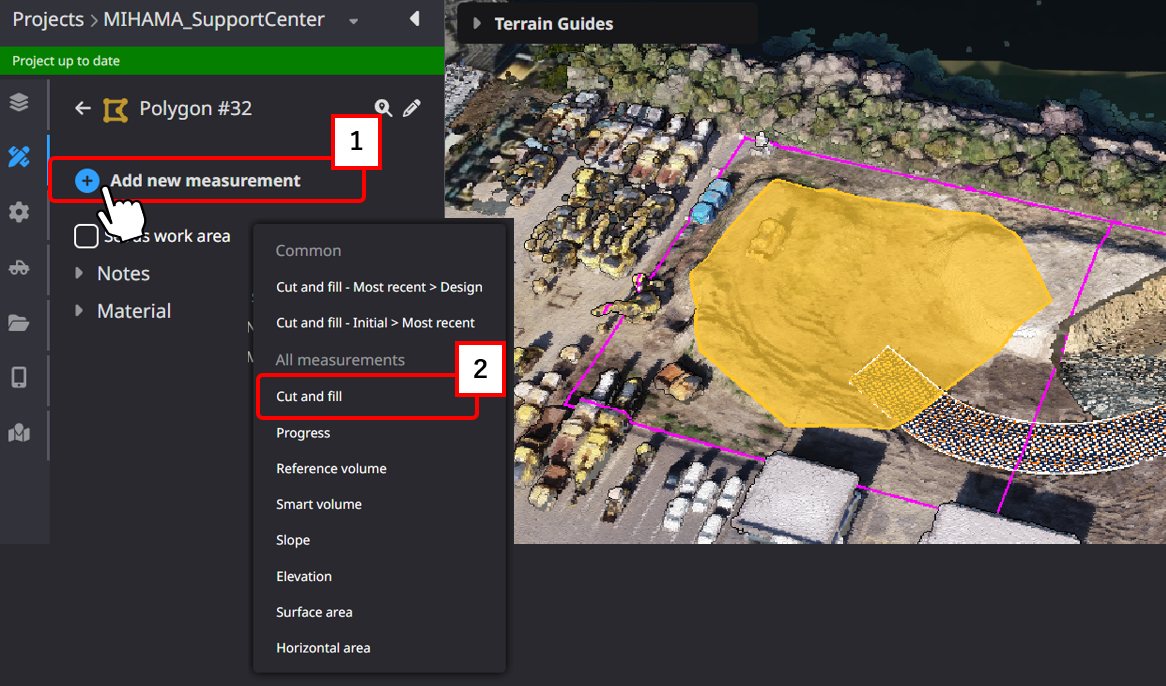

3. Click 【"1" Add new measurement.】and select 【"2" Cut and fill.】

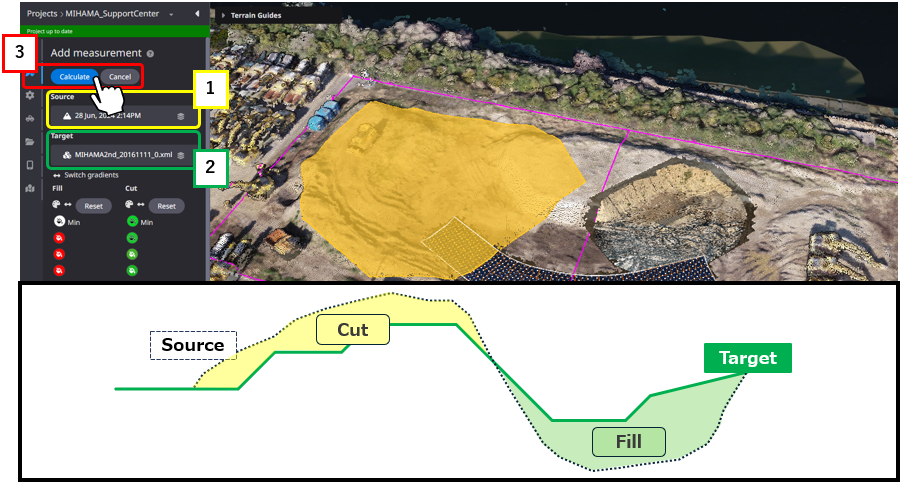

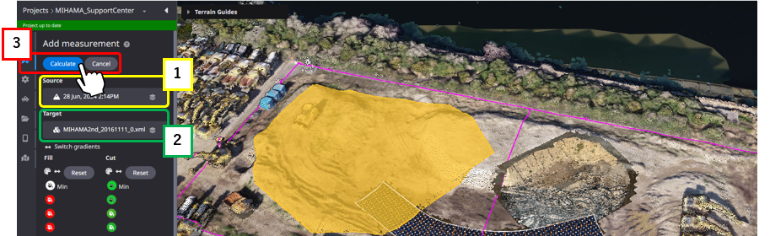

4. Confirm the 【"1" Source】 and 【"2" Target.】
Calculations are performed based on the selected Source and Target.
5. Click 【"3" Add Measurement】

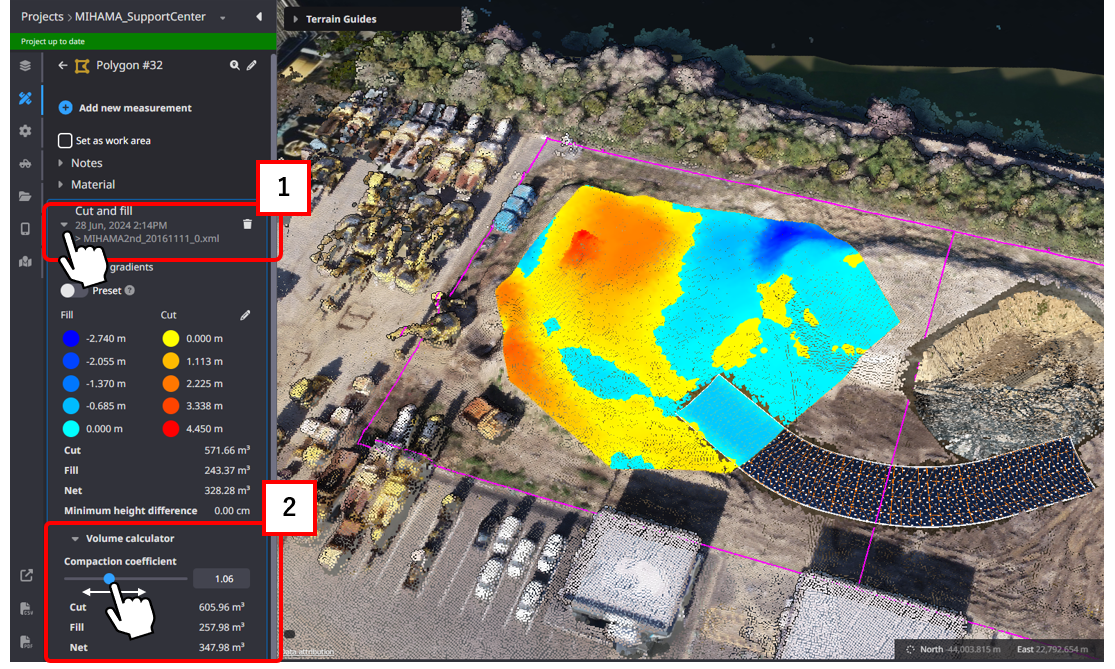

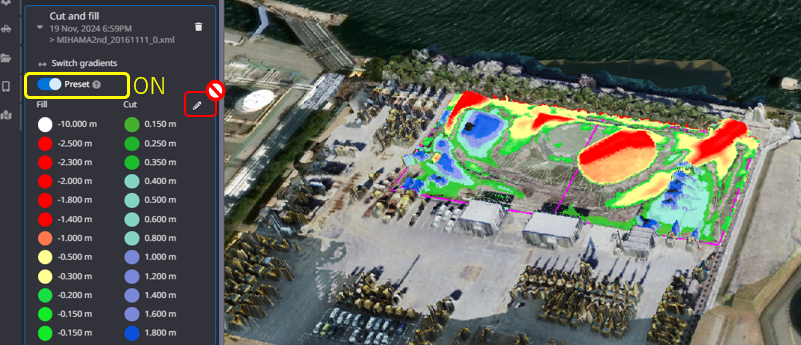

6. The calculation results will be reflected in the tab of the created polygon.
If the heat map is not displayed, click the 【"1" ▶】 button to display it.
【"2" Compaction coefficient】 can be set and soil volume can be calculated as an optional function.
Supplementation
If you would like to customize the threshold and color information of the measurement results, click here.
