We are pleased to announce the release of Smart Construction Dashboard periodic update with the following dates and details.
| No. | Type | Function | Description |
| 1 | Enhancement | 3D icon | User can now create folders to group icons and change the display order of icons using drag-and-drop. This allows for convenient management of multiple 3D icons. |
| 2 | Enhancement | Data layer | When creating annotations from boundaries of design, volume calculations could take a long time if the boundary had many points. Therefore, we have prepared an option to simplify the boundary's points when creating annotations. |
| 3 | Enhancement | Measurement | When creating 2D Cross section, user can now select target data in the sidebar for measurement. It is now easier to check the selected data. |
| 4 | Bug | Machines | When displaying the operational history of ICT machine, the location for the selected date was sometimes not shown. This has been corrected to display correctly. |
| 5 | Bug | Measurement | Resolved an issue that caused the screen to refresh repeatedly while displaying measurement results or gradient settings, interrupting user operations. The screen now remains stable without automatic refreshes. |
| ６ | Bug | Data layer | When registering a TP3 design file containing multiple layers, layers were sometimes registered in an order different from the file. It has been fixed so that it can be registered with the same layer order as the file. |
| ７ | Bug | Measurement | When selecting a polygon to calculate its surface, the surface area might not have been calculated correctly in some cases. This has been fixed to ensure accurate calculations. |
| ８ | Bug | Measurement | When contour lines were downloaded, their elevation units were always created in meters. It has been fixed so that the units automatically change to match the project's unit. |
| ９ | Bug | Measurement | When displaying measurement results for line or polygons, annotation lines on the map were sometimes hidden. It has been fixed so that annotations display correctly on the map. |
| 10 | Bug | Measurement | When showing the result of elevation for surveys, the heatmap occasionally extended beyond the target area. It has been fixed so the heatmap now displays correctly within the selected area. |
1. Simplified boundary point options are provided to enable faster volume calculations.
When creating annotations from design, if the number of boundary points exceeds 100, the following dialog will now appear. Selecting “Convert Simplified” reduces the number of points and creates annotations that enable lightweight volume calculations.

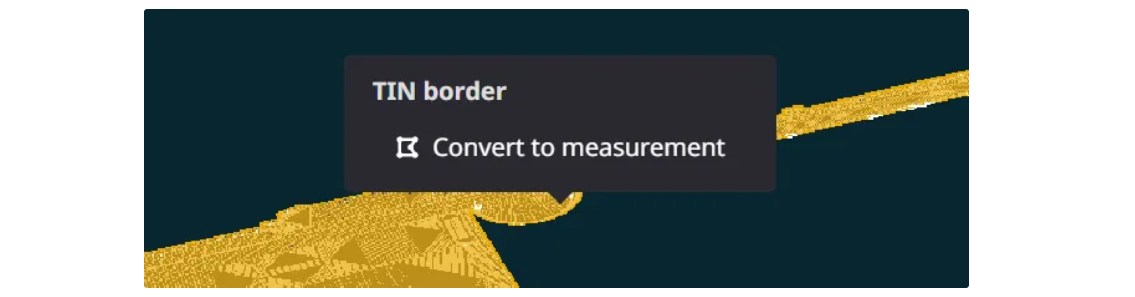

[Create Annotation from Design]

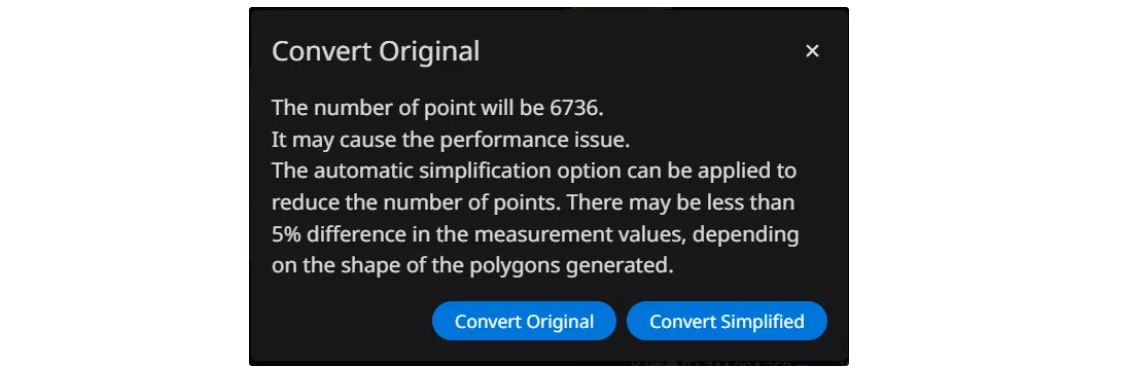

[The dialog to select Simplify option]
