How to check the elevation history of selected points.

Introduction

This article provides a detailed explanation on how to check the elevation history of selected points.
You can check the variation of elevation values for a specified point based on the registered terrain data.

Procedures and Explanation

1. Click on the measurement icon.

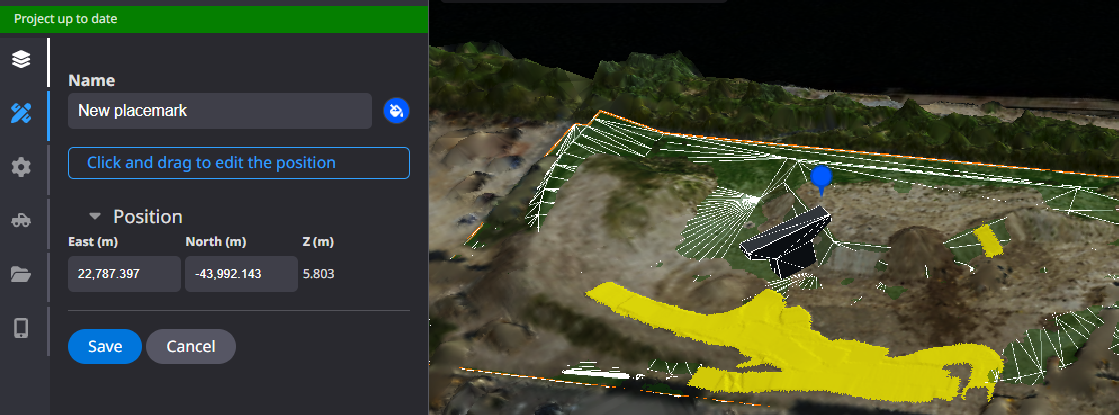

2. Select "Placemark".

Click the left mouse button to specify a point on the terrain and "Save".
Click here to customize annotation information.

3. Click "Add new measurement".

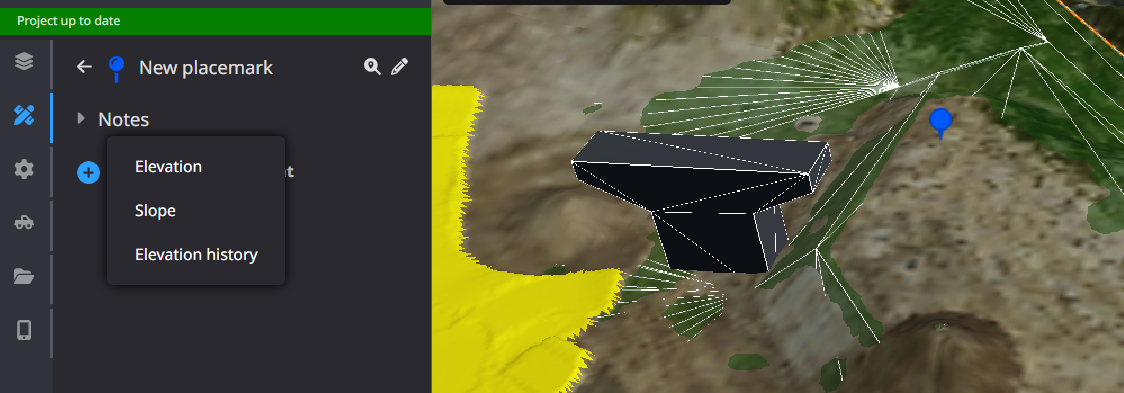

4. Select "Elevation history".

Refer to the registered terrain data to display the changes.

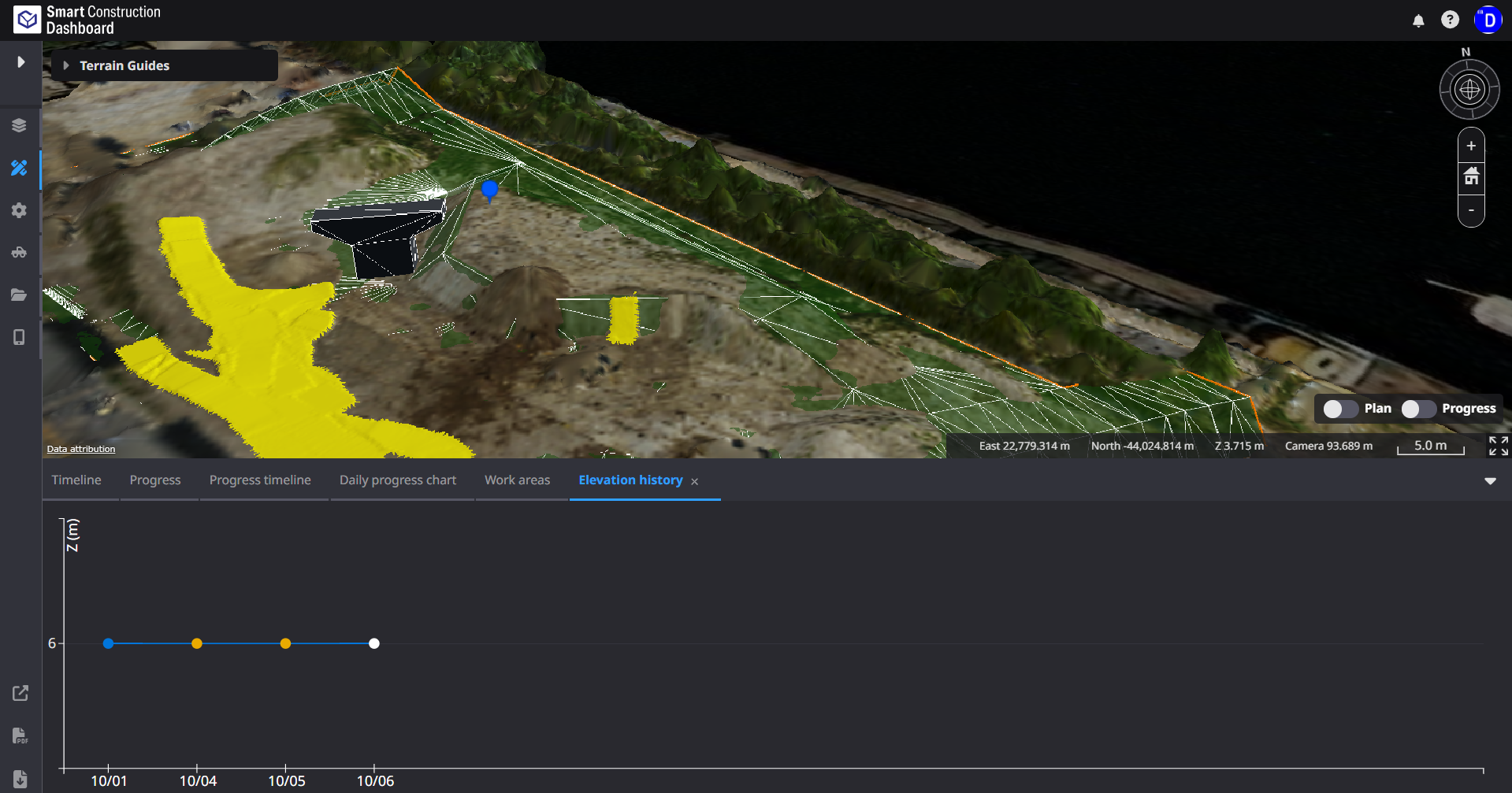

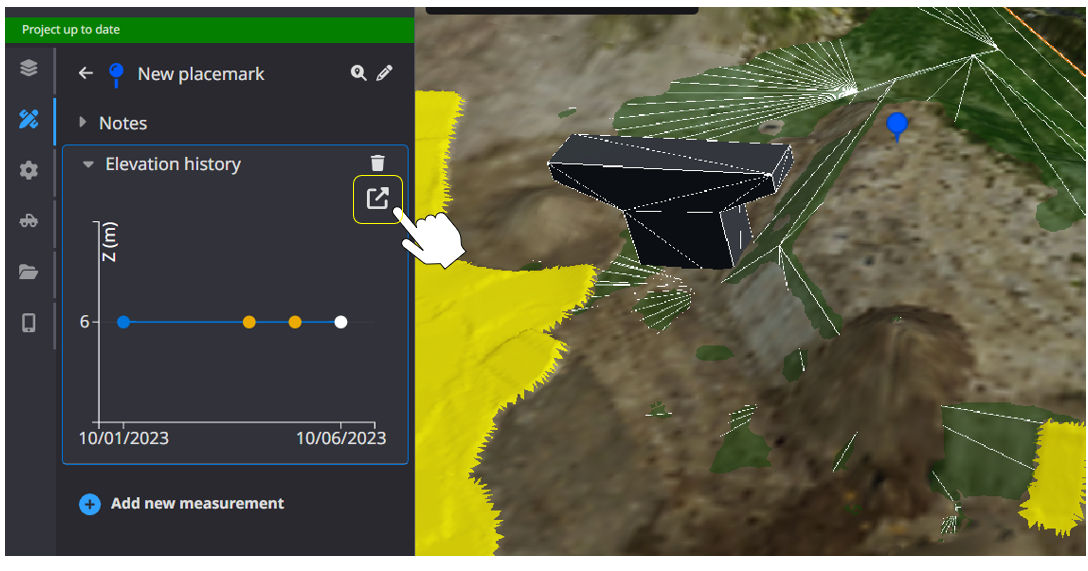

5. Click on the "Zoom" button to display the data in the under panel.

"Zoom"

Supplementation

If there is a lot of terrain data displayed in the "Elevation History" in the under panel, you can slide the elevation history table by holding the left mouse button and moving it to the left or right.
