Introduction
This article provides a detailed explanation on how to check the difference in elevation between points placed on terrain data.
Procedures and Explanation
1. Click on the 【"1"measurement icon.】
2. Select the 【"2"line segment】 from the annotations.

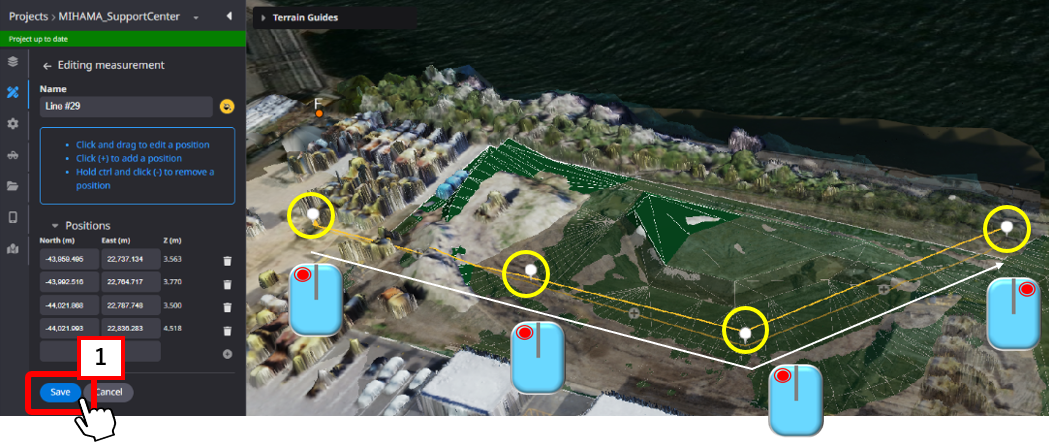

Click the left mouse button to draw a transect/section line at the desired location, right click to close and 【"1"save.】
Click here to customize annotation information.
Click here to customize annotation information.

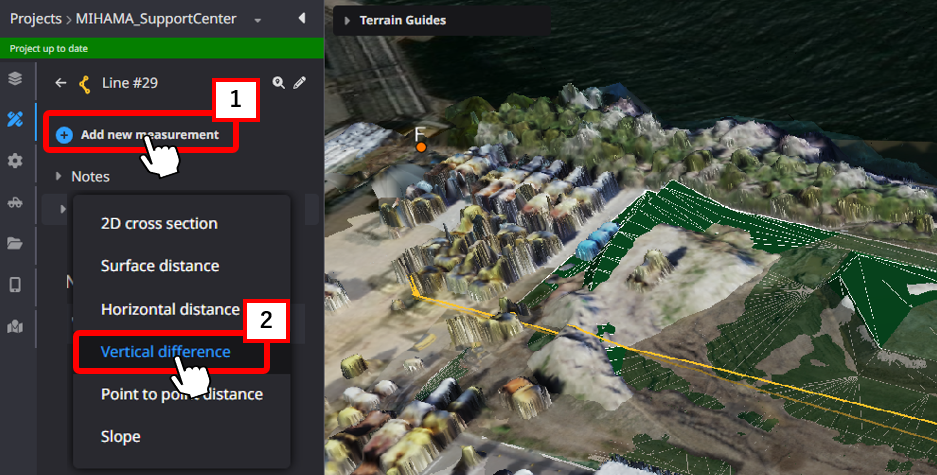

3. Click 【"1 ”Add new measurement.】
4. Select 【"2 ”vertical difference.】

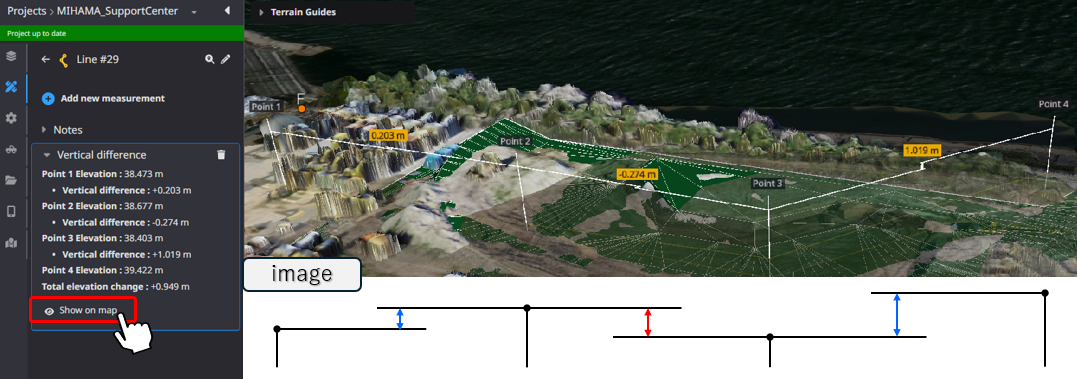

5. The height difference between points will be displayed.
The display icon can be switched between visible and invisible.
