Notes on registering top view data.

Issue

What you should do when registering top view data (DXF format) in Smart Construction Dashboard？

Answer

• When registering top view data (DXF format), please set colors in the layer layer on the CAD data.


• Color settings for lines and polylines cannot all be reflected, only on the layer are effective.


• Since hatching information within CAD data cannot be reflected, please hide and lock it within the CAD layers beforehand to exclude it from the floor plan.


• Please verify that the scale of the imported floor plan data is in units (m) and that the coordinate system matches the project settings information.

Explanation

For more information, please refer to the following

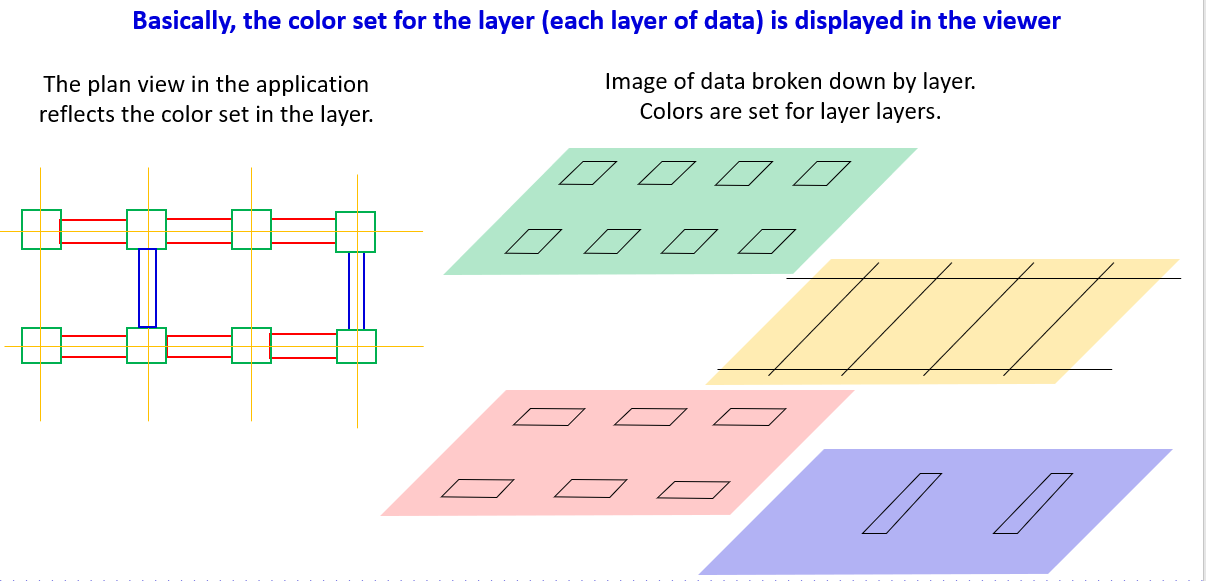

About the color display of top views in the Smart construction Dashboard

Notes

If a color is set for the line itself in a layer, the first color set in each layer will be reflected.
Not all layer colors can be read.

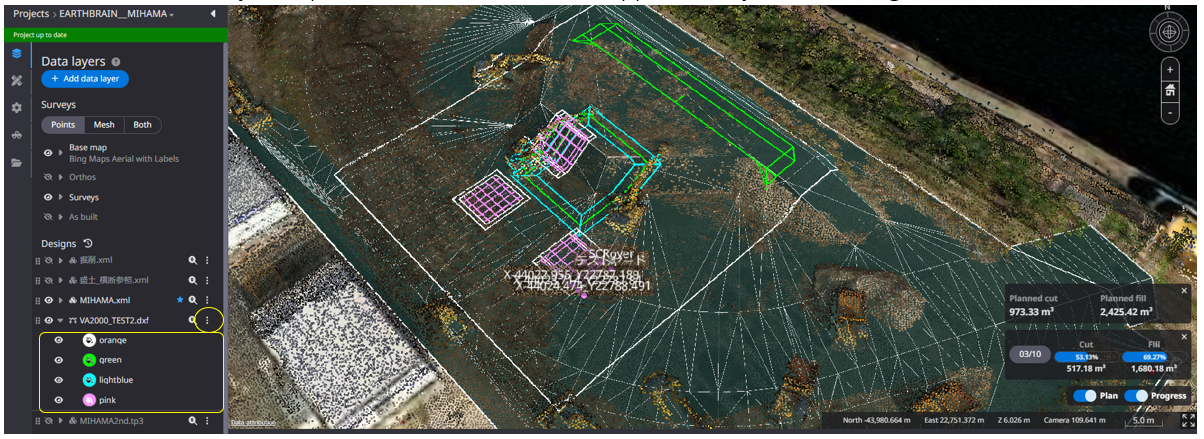

If the expected color is not reflected, you can change it in the application.
