How to customize the annotation information

Introduction

This article provides a detailed explanation on how to set up the annotation information you have created to customize it.

You can customize annotation to your liking.

Procedures and Explanation

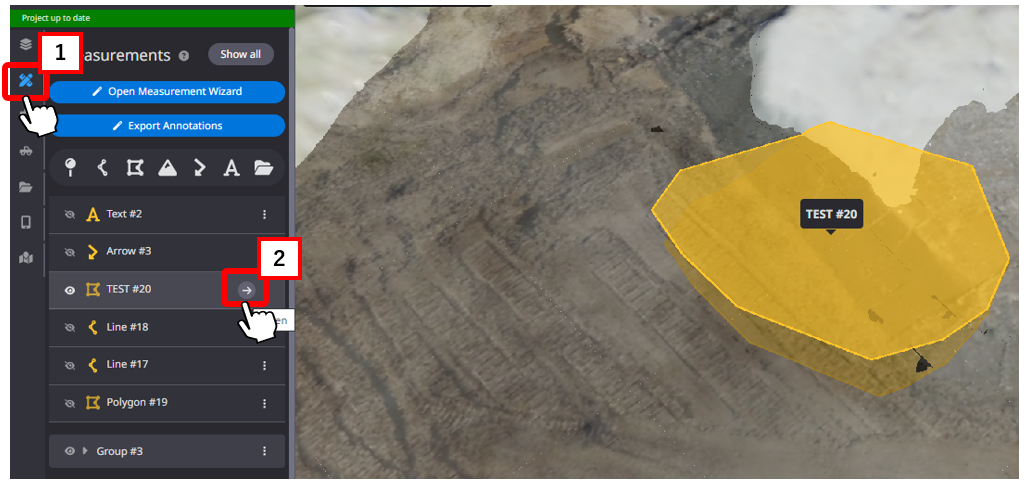

Each annotation can be edited by clicking the edit icon (pencil button) after 【"2"selecting the annotation.】

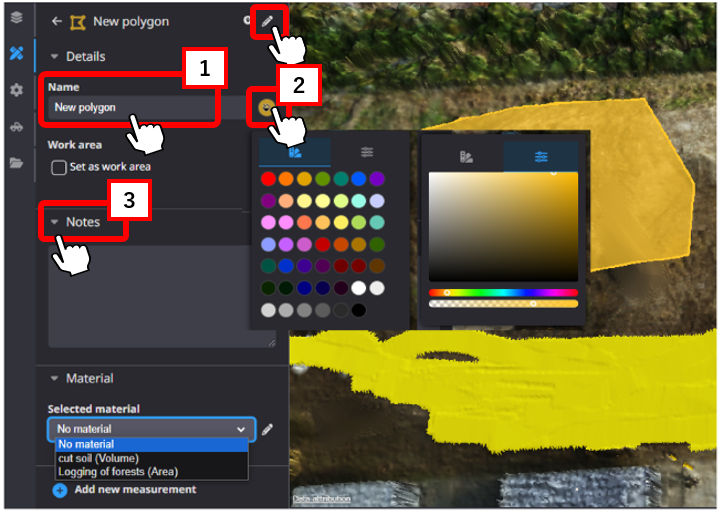

Name change

Click 【"1"Name】 to change it.

Change Color/Transparency

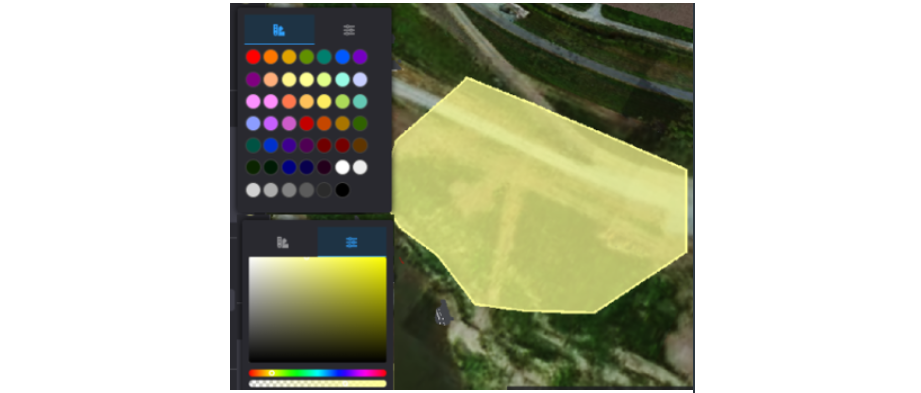

Click on the 【"2"】 to change the color and transparency of the enclosed area.

Notes

【"3"Notes】 is used to share information with relevant parties.

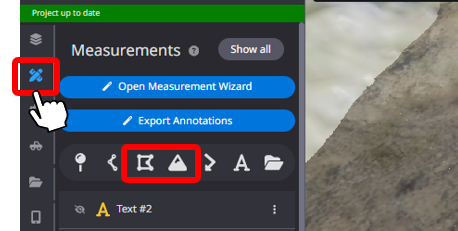

The following functions are available only for "Polygon" and "Construction area".

Materials

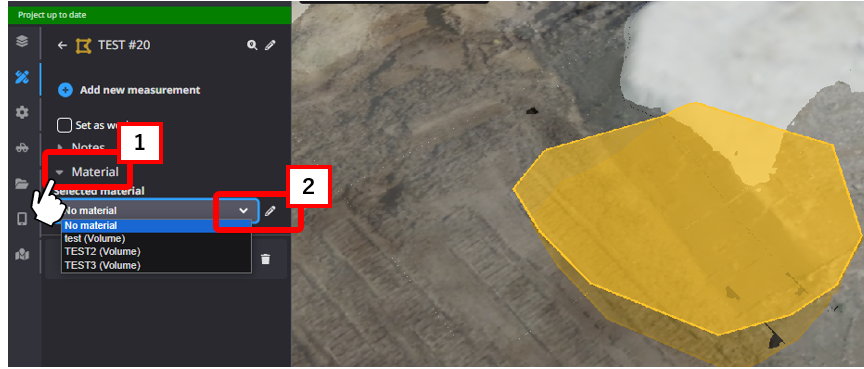

Click 【"1" Material】 and【"2"select the material or click pencil button】 to edit.

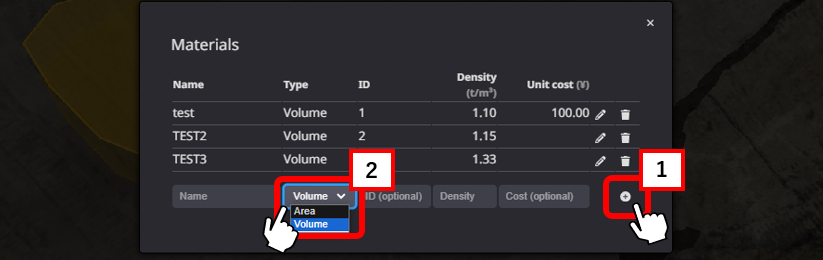

2) In the edit display, select "Volume" or "Area" from the 【"2" Type】 section.

*Perform the soil volume calculation after selecting the soil type.

*This is used for cost calculation at the time of measurement, etc.

*Since Dashborad viewers (jobsite staff) can view this information, please be careful when entering the unit price.

*It is recommended that the ID be an arbitrary number, etc.

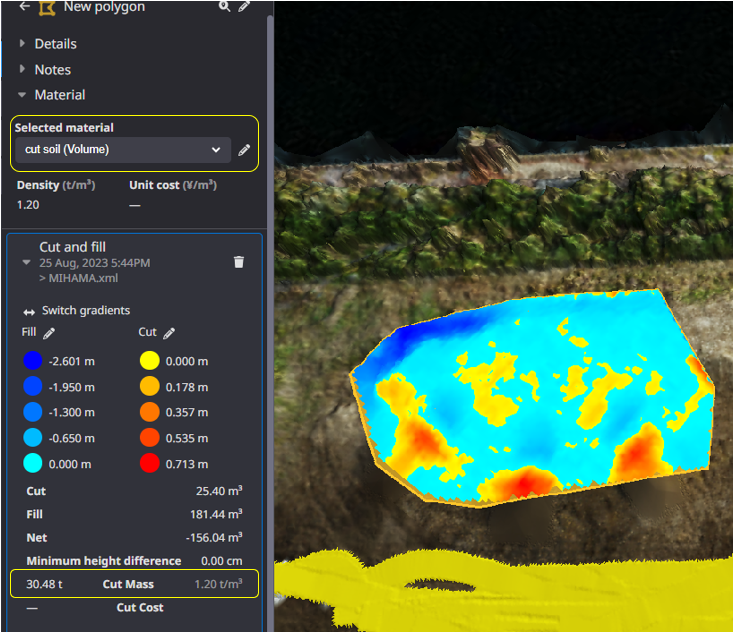

〔Volume〕
Soil volume measurement will be reflected in the results according to the soil type.

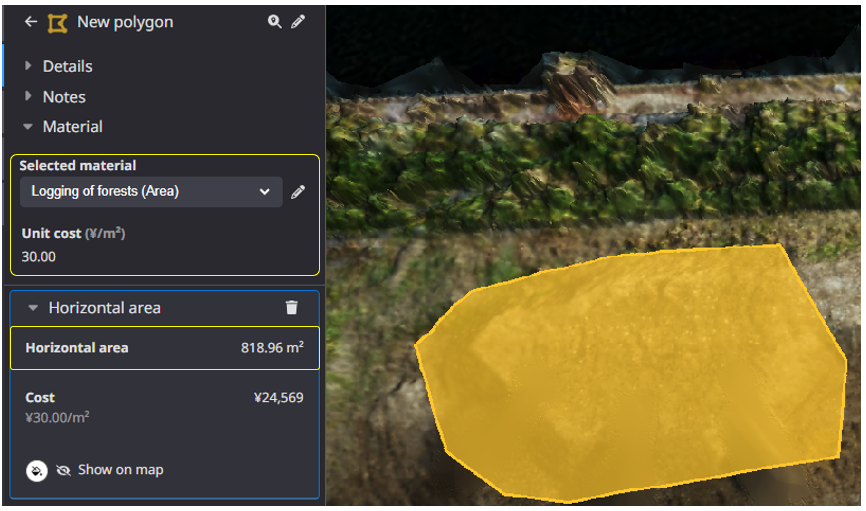

[Area]
Enter a unit price and measure the area, and the cost according to the unit price will be reflected in the measurement results.

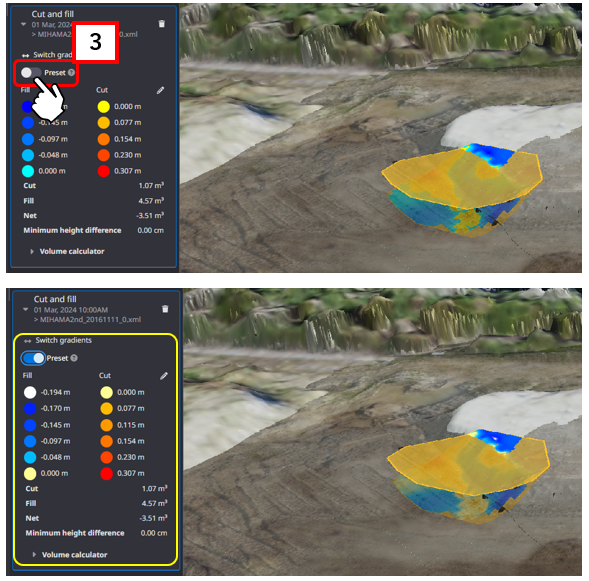

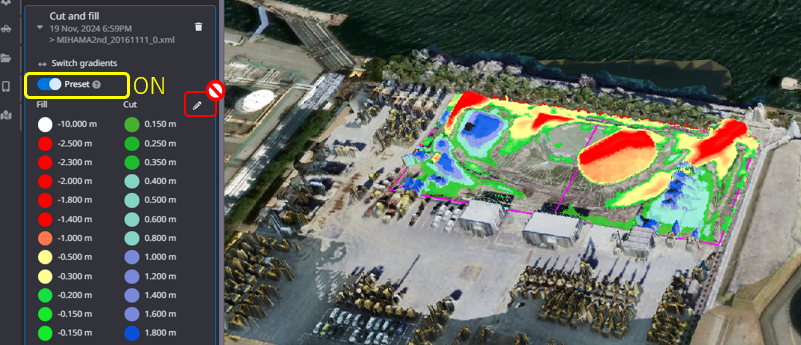

Preset Function

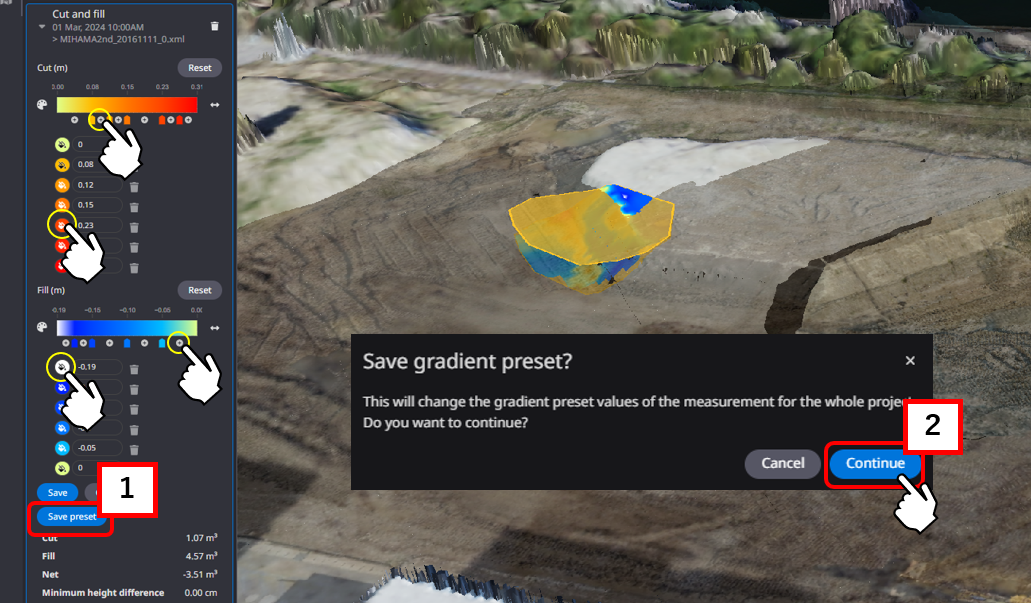

After saving the changed threshold and color settings【"1", "2"】, click the 【"3" Preset】 when displaying other measurement results to reflect the saved settings.
