How to register and set up geographic information data.

Introduction

This article provides a detailed explanation on how to register and set geographic information data

In this article, KMZ files, KML files, GeoJson files, etc. are used as geographic information data.

These data will be superimposed on the terrain in the application and used.

Procedures and Explanation

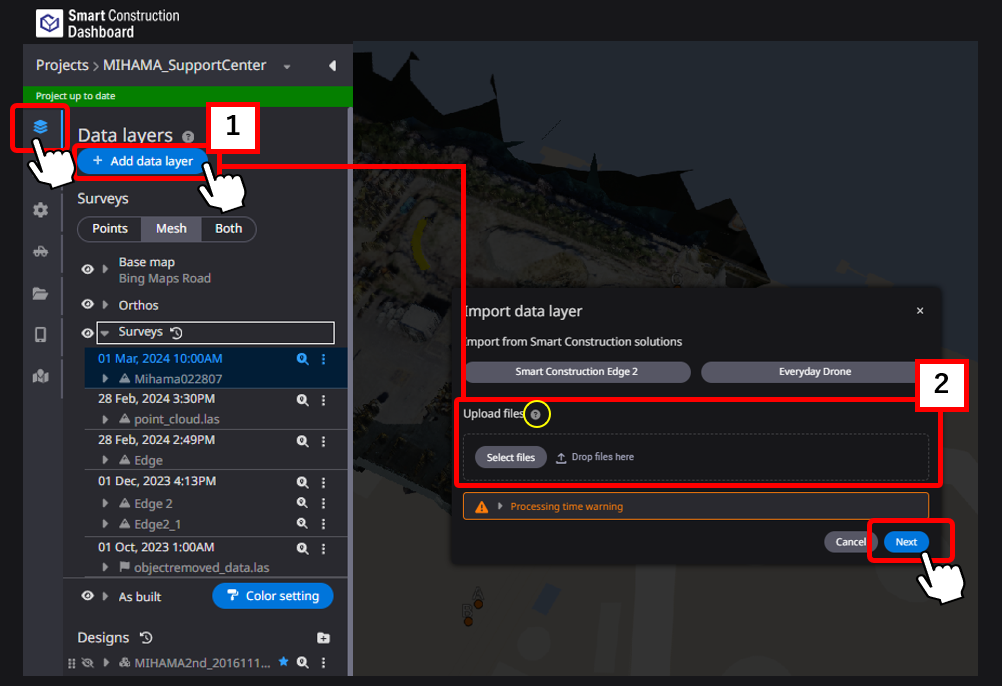

1. Click 【"1"Add data layer.】

2. 【"2"Upload design data files by drag & drop or from a local folder.】

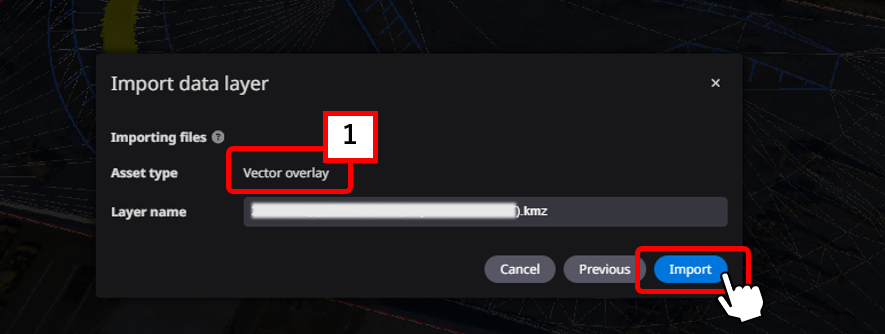

3. 【"1" Vector overlay】 will be displayed in the "Asset type".

Supplementation

Display of geographic information data

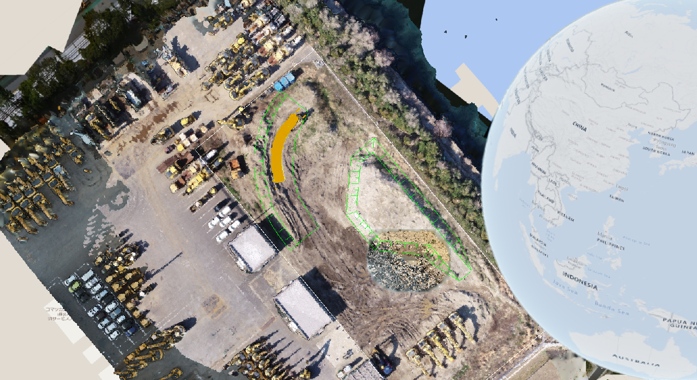

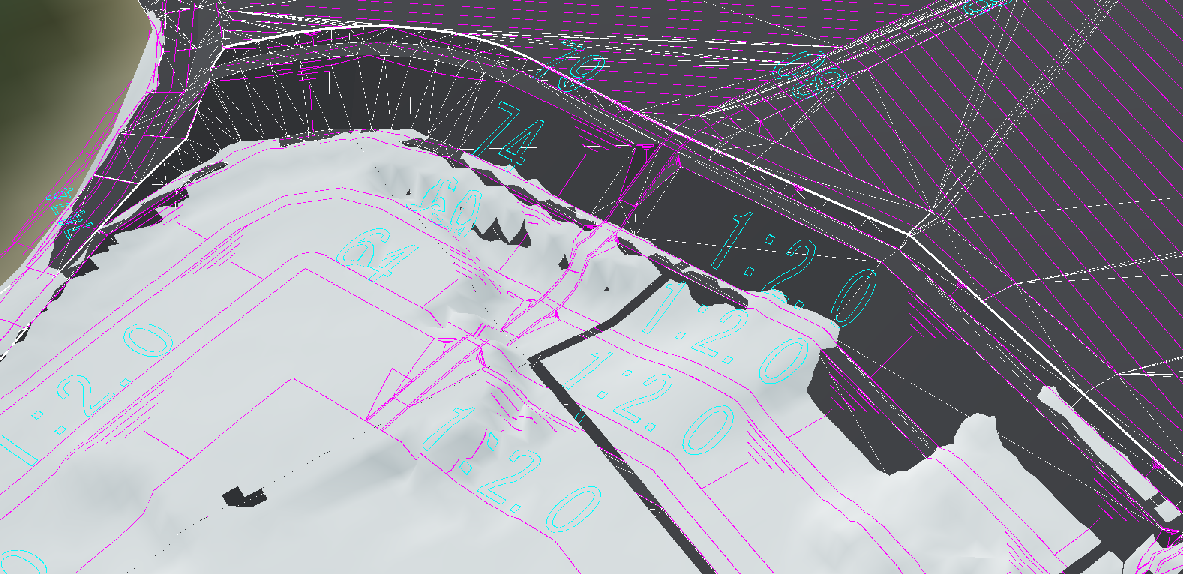

The layer color set in the CAD data is reflected, and the numerical values in the data are the same type as the lines.

When there are many types of lines, there may be a delay depending on the memory usage of the PC. Therefore, it is recommended to select the required type (enable/disable layers) in the CAD software in advance and upload the data.

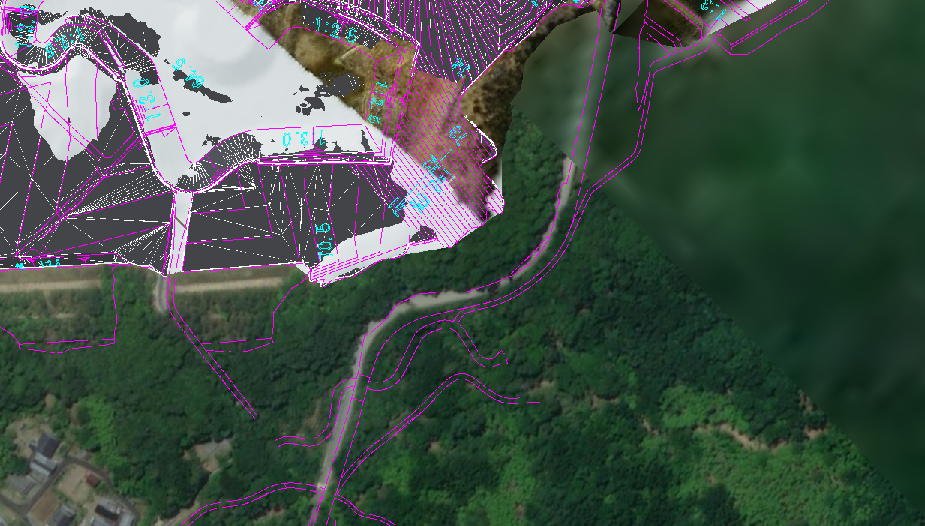

When the "Clamp to surface" checkbox is checked in the menu of the registered data, the data will be superimposed on the design data and displayed.

The displayable area includes the outside of the design data.
