Introduction

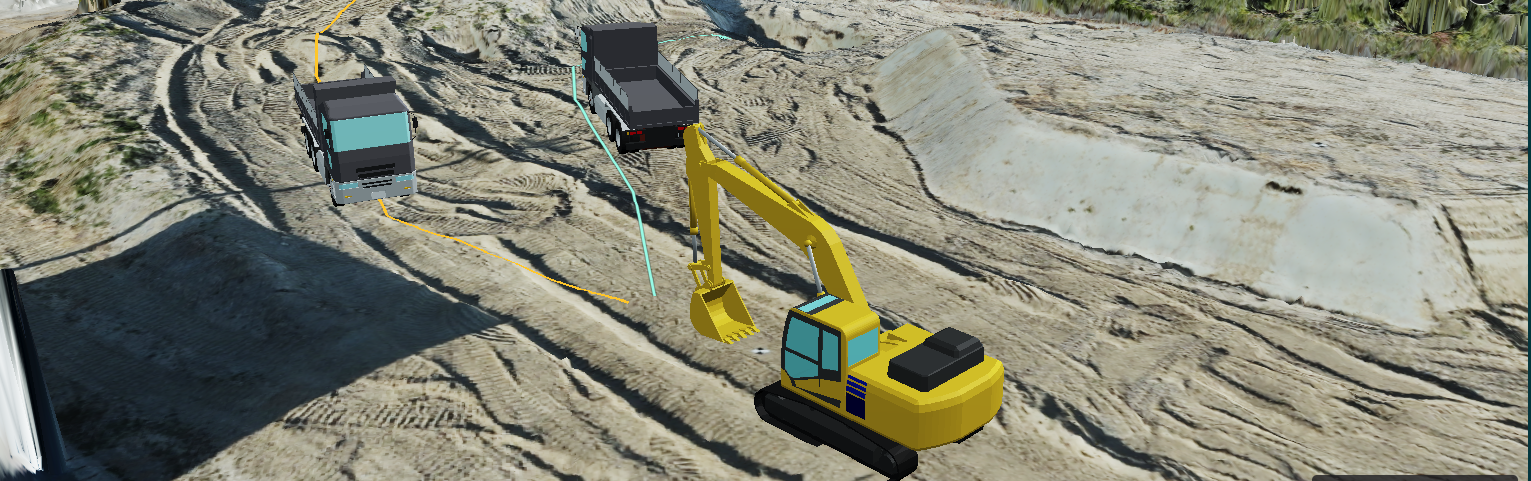

This article provides a detailed explanation on how to place construction equipment on the terrain of a project site.
By placing the machine on the terrain, the 3D data can be used for daily construction studies.
As of May 2025
Release icons are only available for excavators 0.7㎥ class, bulldozers 20t class, and 10t dump trucks.
Procedures and Explanation

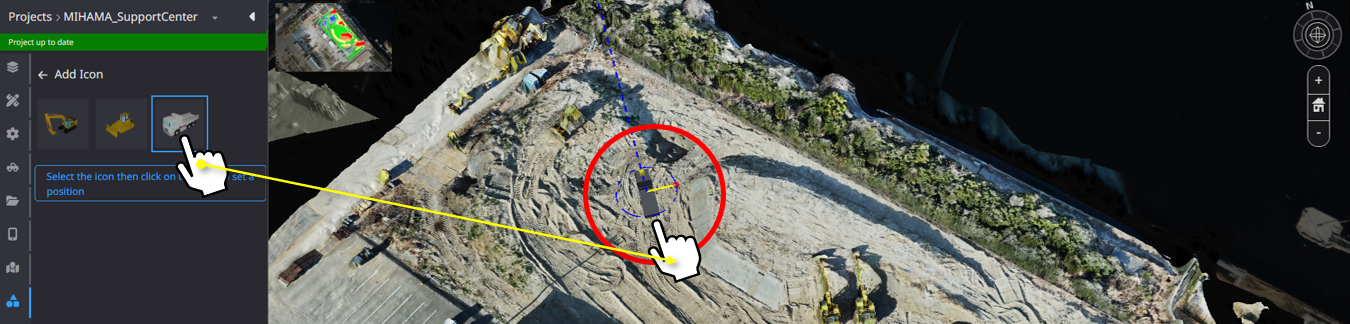

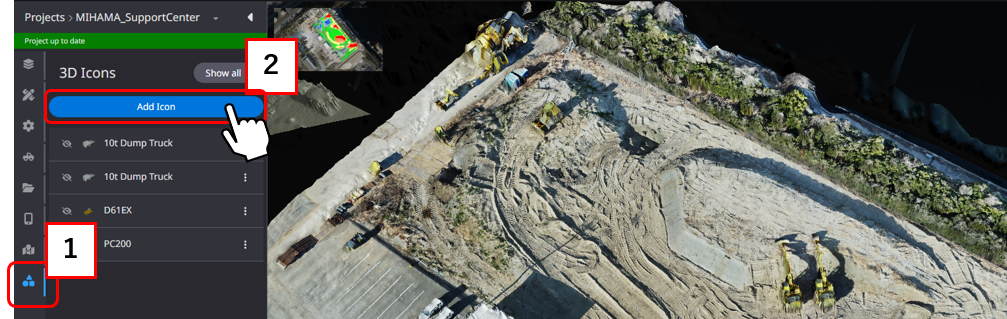

1. Select the 【"1" 3D icon】 in the side panel and click 【"2" Add Icon.】
2. Select the construction equipment you want to place, and click the left mouse button at the position where you wish to place it.

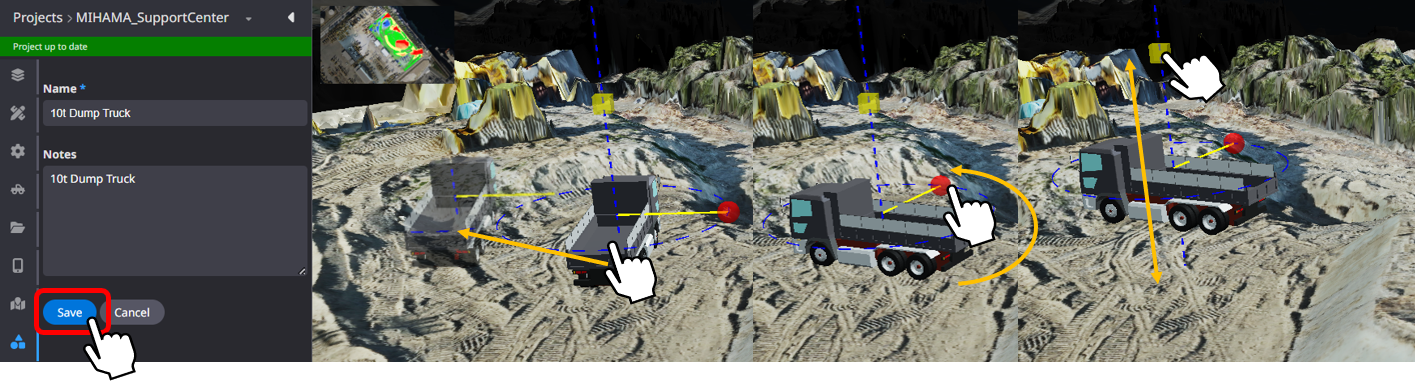

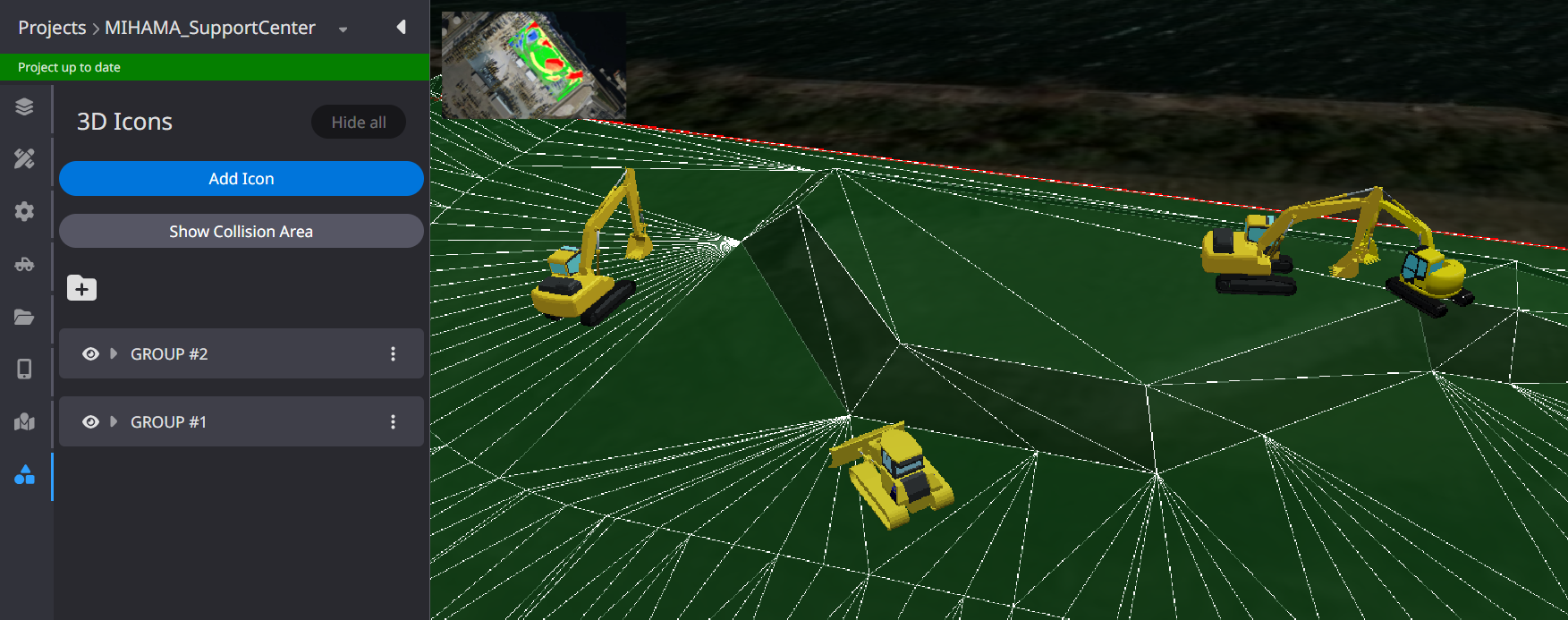

3. Adjust the position of the 3D icon.
Click and hold the machine itself to move it, click and hold the red point to rotate it, and clic and hold the yellow point to adjust its height.

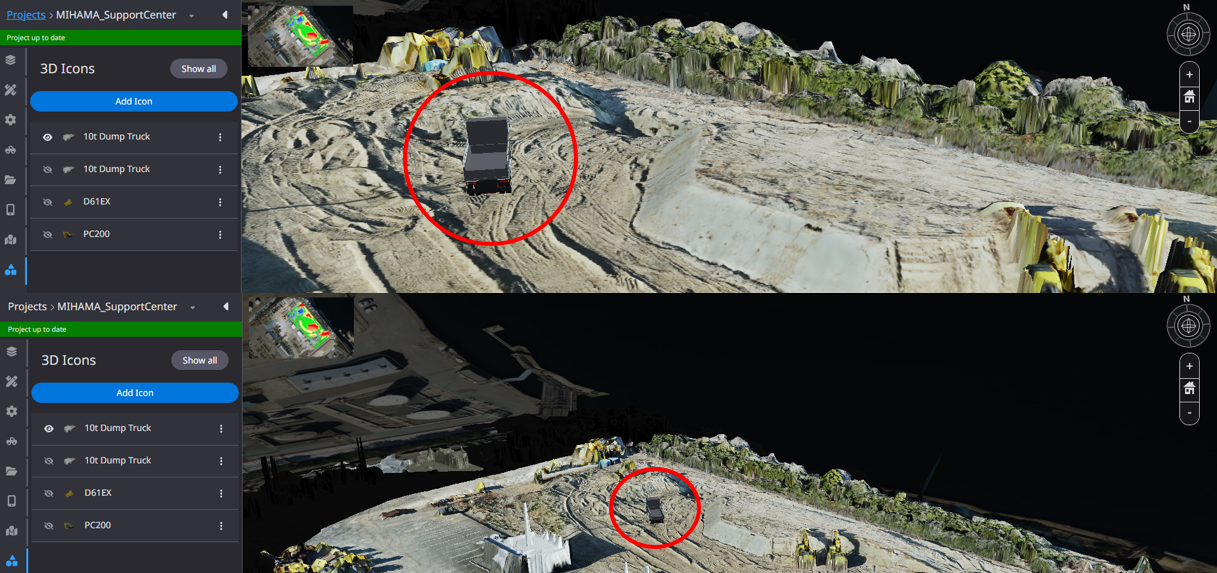

4. The 3D icons you set will be automatically adjusted when you zoom in/out with the mouse.
Supplementation
Scale and height adjustment of 3D icons

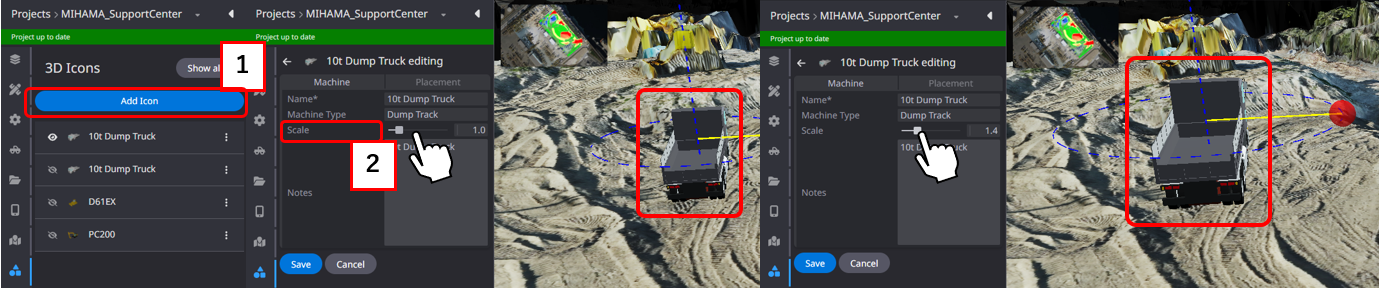

If you click again the icon which is set, you can change the size (scale) of the model and place it.
The height of the model can be adjusted using any input value.
Procedure

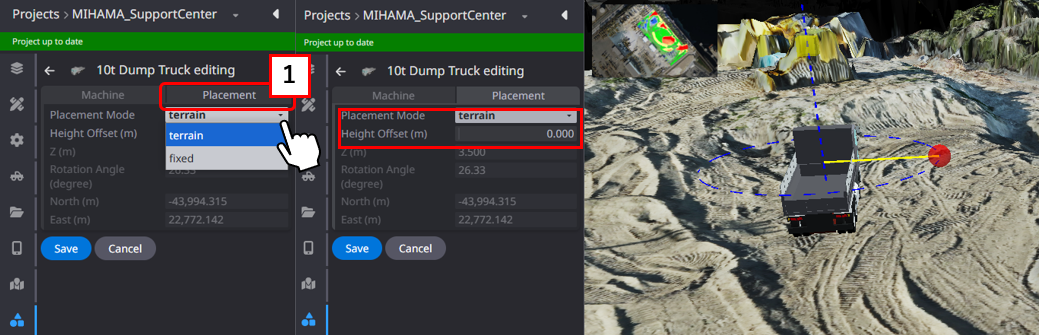

With 【"1" terrain】 selected, change to the desired height in the height offset (m), select 【"1" fixed】, and save.
terreain: Set the icon based on the height of the terrain
fixed: Offsetting to any height is possible.
