Notes on registering top view data.

Issue

What to do when registering top view data (DXF format) in Smart Construction Dashboard.

Answer

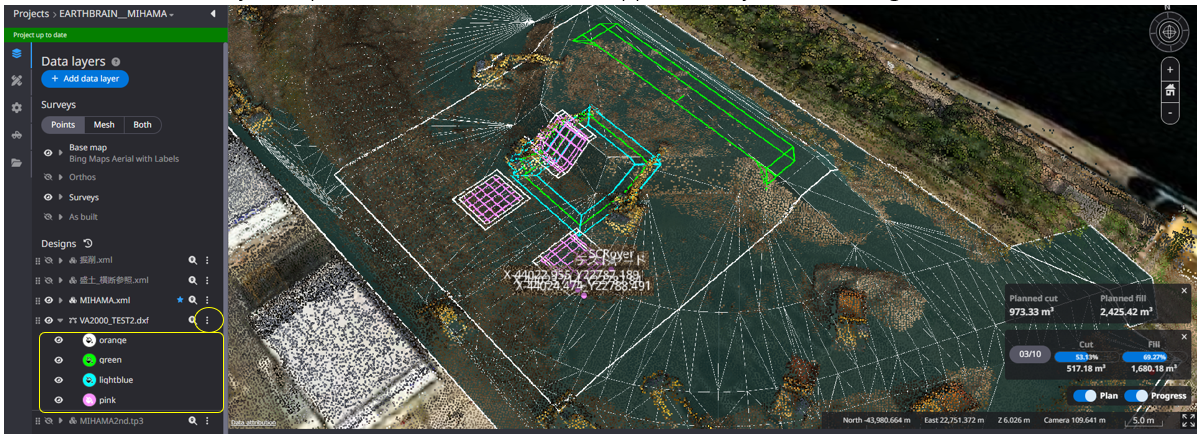

When registering top view data (DXF format), please set colors in the layer layer on the CAD data.

Color settings for lines and polylines cannot all be reflected, only on the layer are effective.

Explanation

For more information, please refer to the following

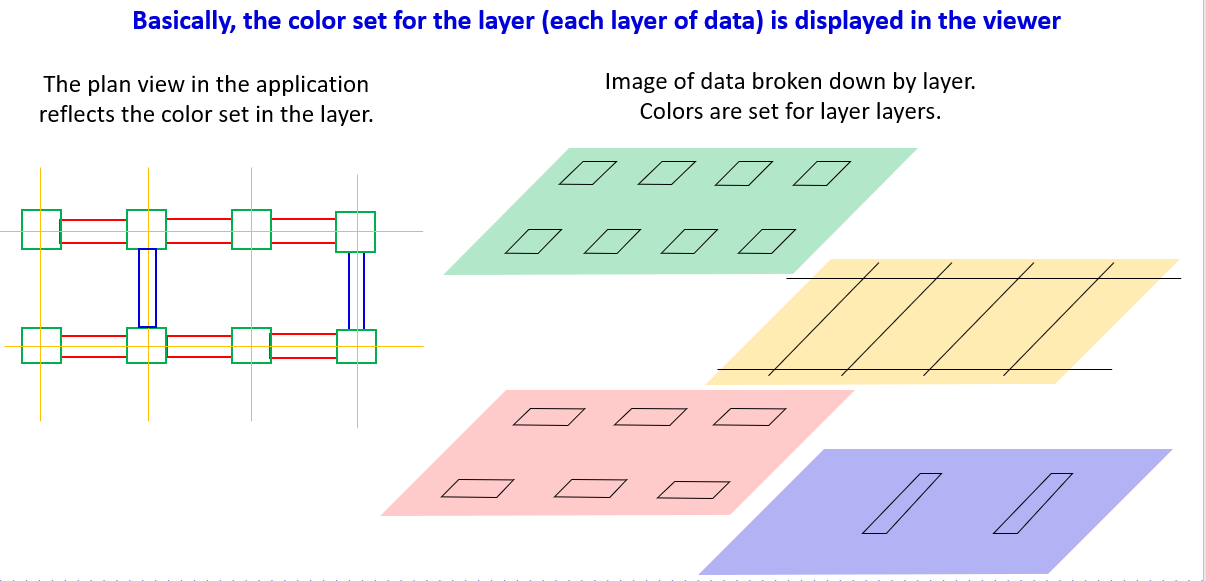

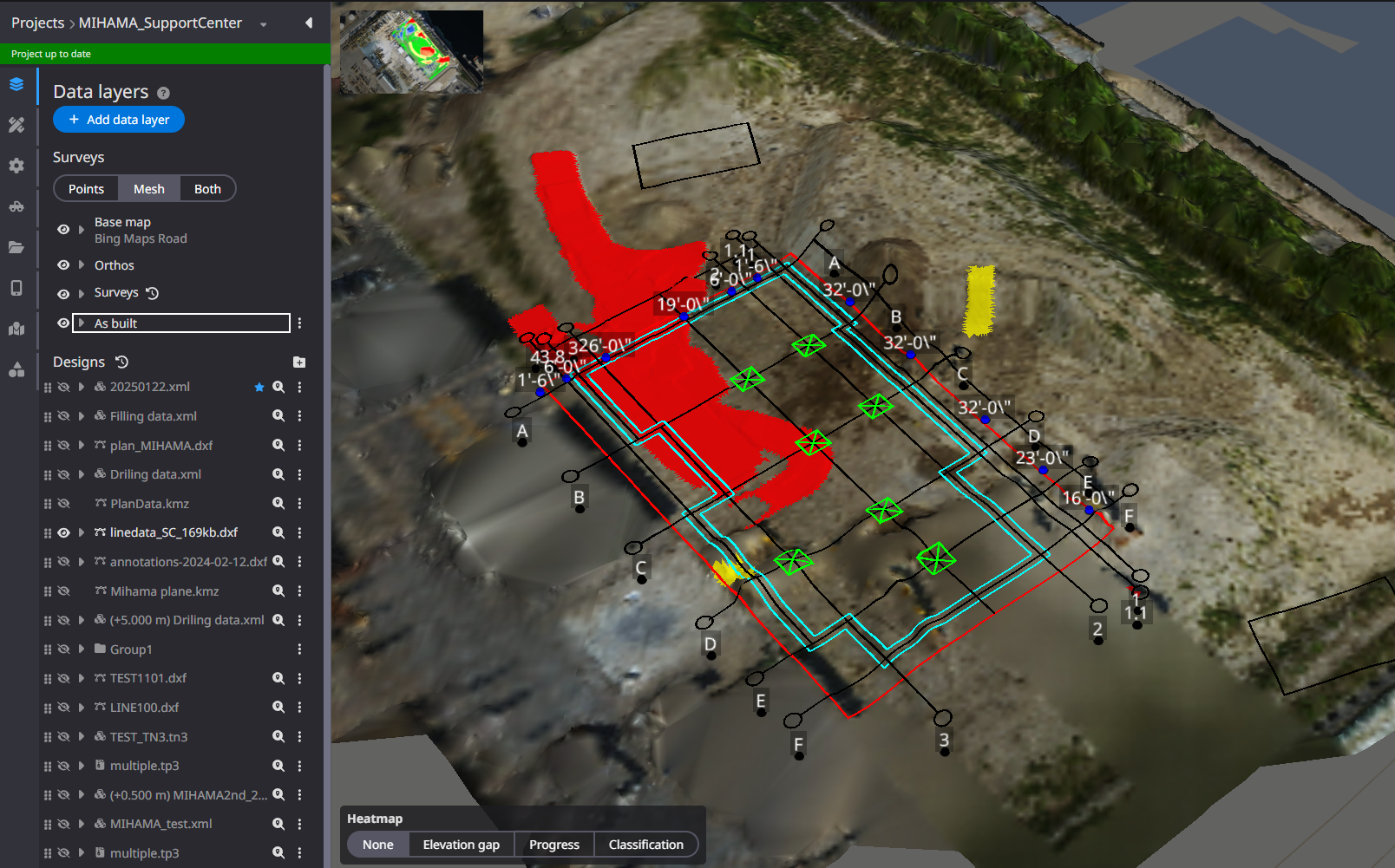

About the color display of top views in the Smart construction Dashboard

Notes

If a color is set for the line itself in a layer, the first color set in each layer will be reflected.
Not all layer colors can be read.
If the expected color is not reflected, you can change it in the application.
