【Process drone data】What are the Validation results for each step?

Question

What are the Validation results for each step?

Answer

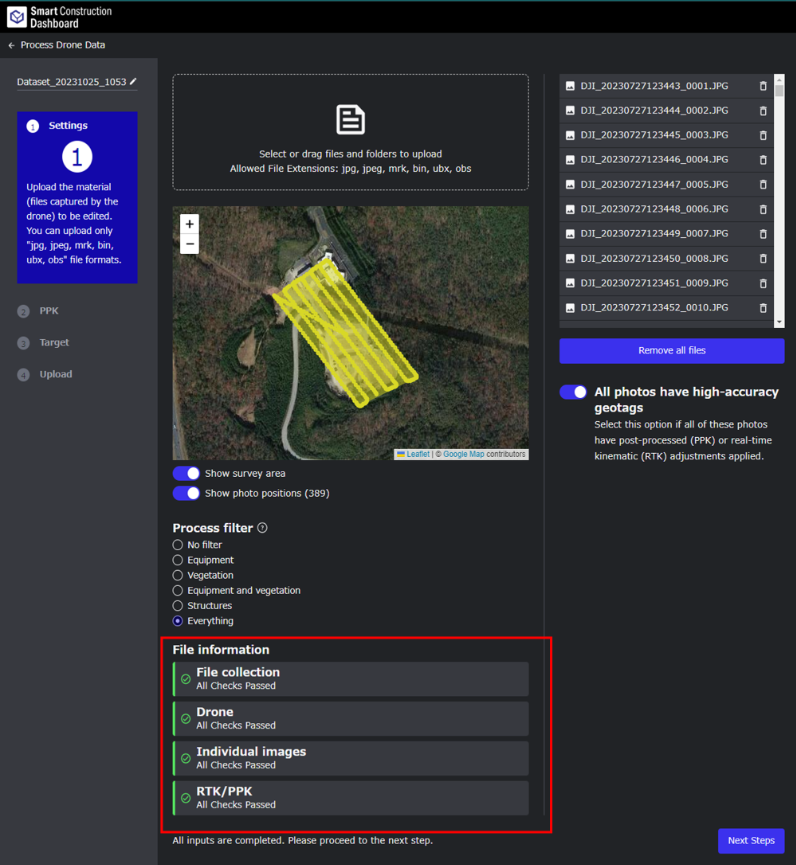

Settings screen

Validation type	OK	NG	Summary	Corrective Actions and Guidance
File collection	Pass	Fail10 or more image files are required	Check to see if there are more than 10 image files. If it is not enough, it will display '[False, '10 or more image files are required']'. Displays Pass if there are more than 10.	Upload image files must be at least 10
Drone	Pass	Not RecommendUse recommend drone	Displays whether the drone model is supported if it exists. If not present, displays a warning message for "Drone camera is not recommended" and whether the drone is supported.	Use supported recommended drones *Recommended for DJI M3E/M300RTK/P4RTK only (as of 2024/5/1)
Individual Images	Pass	Fail	Make sure the .MRK file matches the JPG.	Ask me to recheck the file configuration
RTK/PPK	Pass	Fail[PPK] Include GNSS (xxx.obs file) in the file[RTK]Not enough images with RTK flight fix	If the RTK flag is ON, check if the exif file contains enough images with the RTK flag, and if it is OFF, check if the PPK file (xxx.obs) exists. Display a corresponding error message if each condition is not met	Drone on RTK flight Please check the RTK flight settings for users. *FAQ Check the drone flight method For drone users on PPK flights, please check if the .obs is present inside the uploaded file

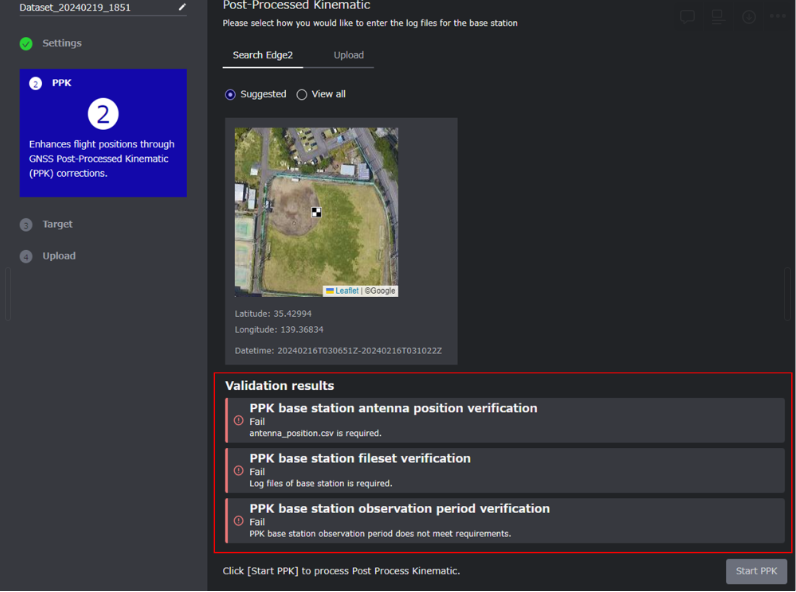

PPK screen

Validation type	OK	NG	Summary	Corrective Actions and Guidance
PPK base station antenna position verification	Pass	Failantenna_position.csv is required.	We are checking if you have uploaded the antenna information of the drone base station.	Make sure that antenna_position.csv is uploading with xxx.obs and xxx.nav files.For Edge2, drag and drop everything directly under "20230XXXTXXXXXXZ-20230XXXTXXXXXZ"
	PPK base station fileset verification	Pass	FailLog files of base station(xxx.obs file) is required.	We're checking if you've uploaded xxx.obs and xxx.nav files.
	PPK base station observation period verification	Pass	FailPPK base station observation period does not meet requirements.	We are checking whether the drone-based logging time uploaded above covers the drone flight time.
