Introduction

This article provides a detailed explanation of the setup process for linking Smart Construction Dashboard Edge2 with your project site to directly upload data after measurement processing.

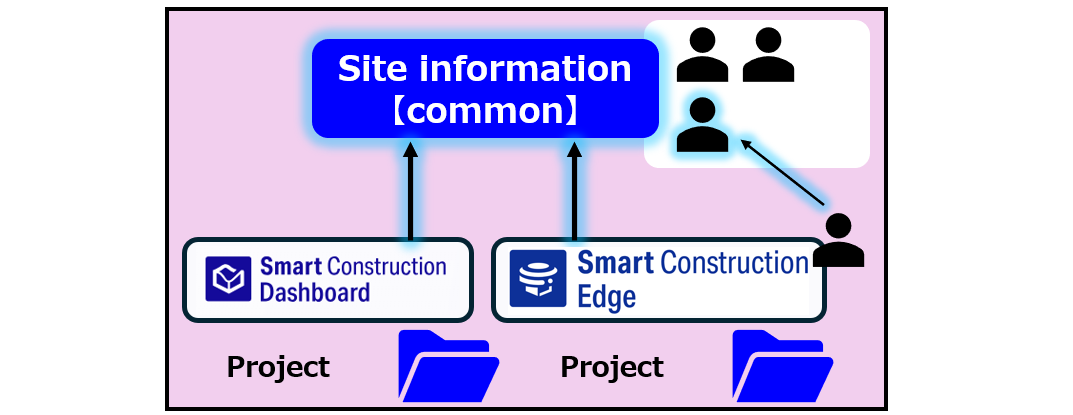

You must first join the members of the site information where the data will be uploaded.

Procedure

How to import Survey Data ：Application: Smart Construction Edge2

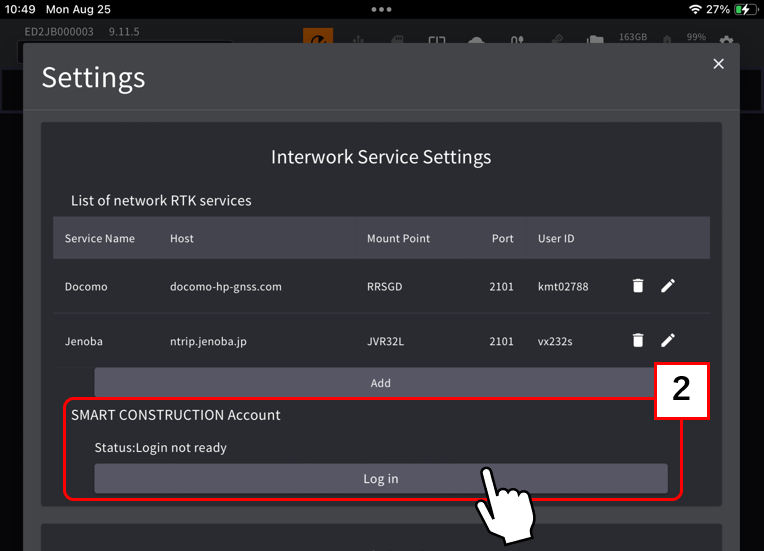

1． 1. Launch the Smart Construction Edge2 application and tap the “Settings icon”.

Tap the “SMART CONSTRUCTION Account” login button in the settings.

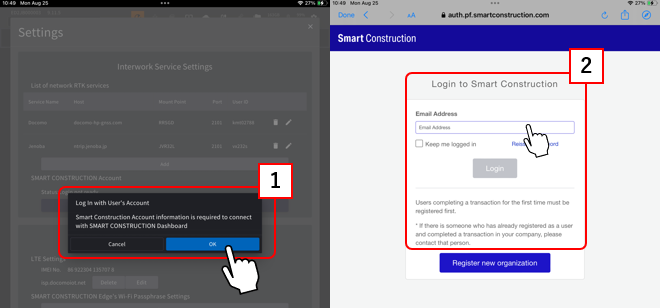

2. Click “OK” to proceed to the login screen and log in using your existing Smart Construction account.
No new company registration is required.

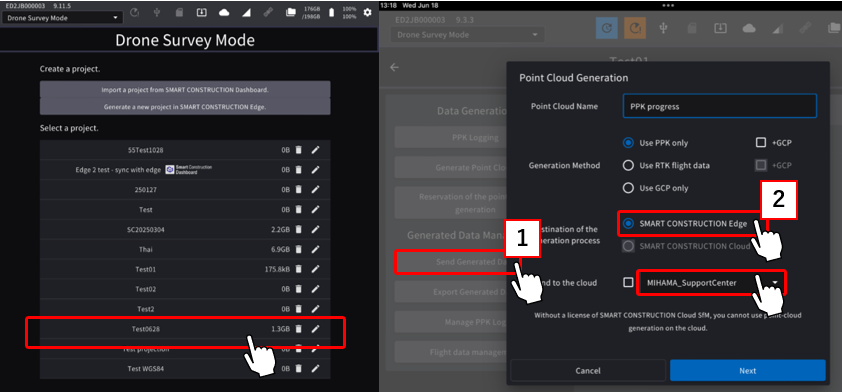

3．To transfer processed data, select the project with processed data, choose “Send to Cloud,” select Smart Construction Edge, and tap the displayed project.

After transfer: Application: Smart Construction Dashboard

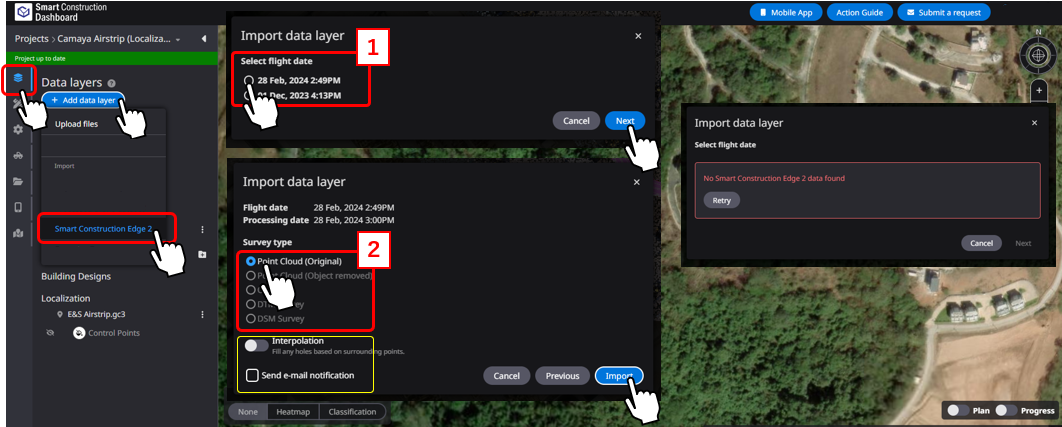

1.  Click the Data Layer icon, then click "Add Data" and then click "Smart Construction Edge2".

After a few seconds, the list will finish loading and display the processed survey data list within Smart Construction Edge2.

２.  Select the survey data you wish to upload from the list, click “Next,” choose the type of survey data to upload, and click “Import.”

Depending on your purpose, please use the optional point cloud interpolation feature or data upload notification feature.
If in case data cannot be found, one possible reason is that the user has not yet joined the project site.

For information about the “Interpolation” option feature, please refer to : How to use Advanced setting in survey data
