"As-built data(Construction history data) not reflected on site."

Issue

Machine construction history data (Asbuilt) are not reflected on the project site

Status update not completed

Typical causes

1) Machine configuration is not complete.

2) Target and preconstruction have not been completed on the project site.

3) Machine is starting work outside the project site area.

4) Project site status is not updated, status does not change

If the above items do not apply and the cause is unknown, please contact the Support Center with the site name or URL, etc.

answer

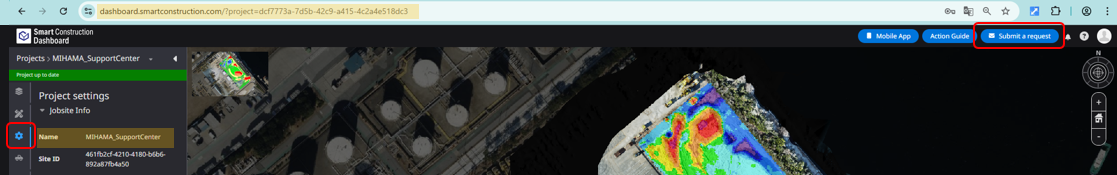

1) Check that the necessary settings have been completed on the construction equipment side.

For more information on machine setup, please click here.


How to link automatically with the construction history data of ICT machine.

How to automatically link the construction history.【3DMG by Smart Construction】

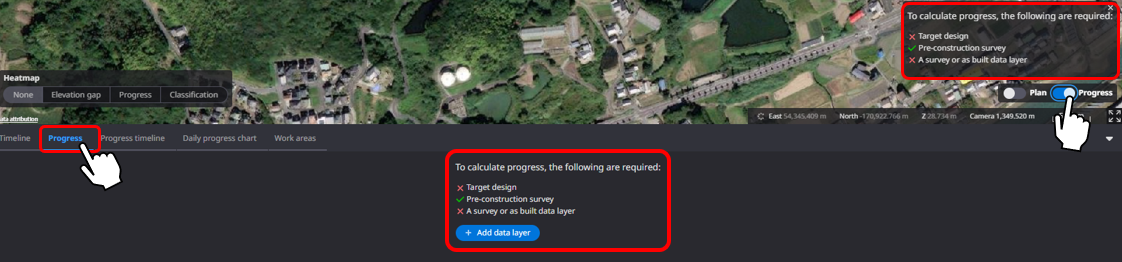

2) If no target and preconstruction data is established at the project site, the As-built data will not reflect on the job site.

The status of the settings can be checked from the following tab keys.

・How to set up target data.

How to register and set up survey data

・How to set up preconstructution data.

How to register and set up design data

3) As-built data will not be reflected if work was performed outside of the set target data area.

FAQ
What's the range of AsBuilt data acquisition?

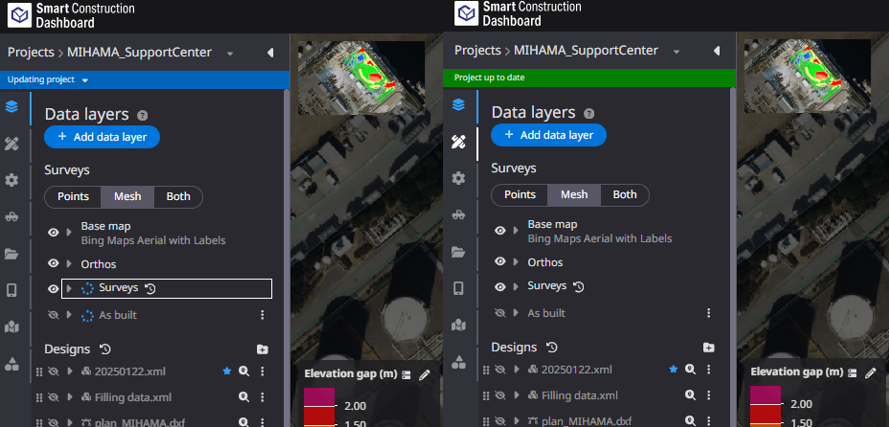

4)  If the status bar is blue, it indicates that data is being updated.
 When all data has finished loading, the status bar will turn green.
If the update is not complete after a few hours, please contact our support team.
