What's the range of AsBuilt data acquisition?

Issue

What's the range of AsBuilt data acquisition?

Answer / Cause

Even if there is no design data, the data will be acquired within a rectangular area that surrounds the target design surface parallel to the latitude and longitude lines, as long as survey data exists.

Explanation / How to deal

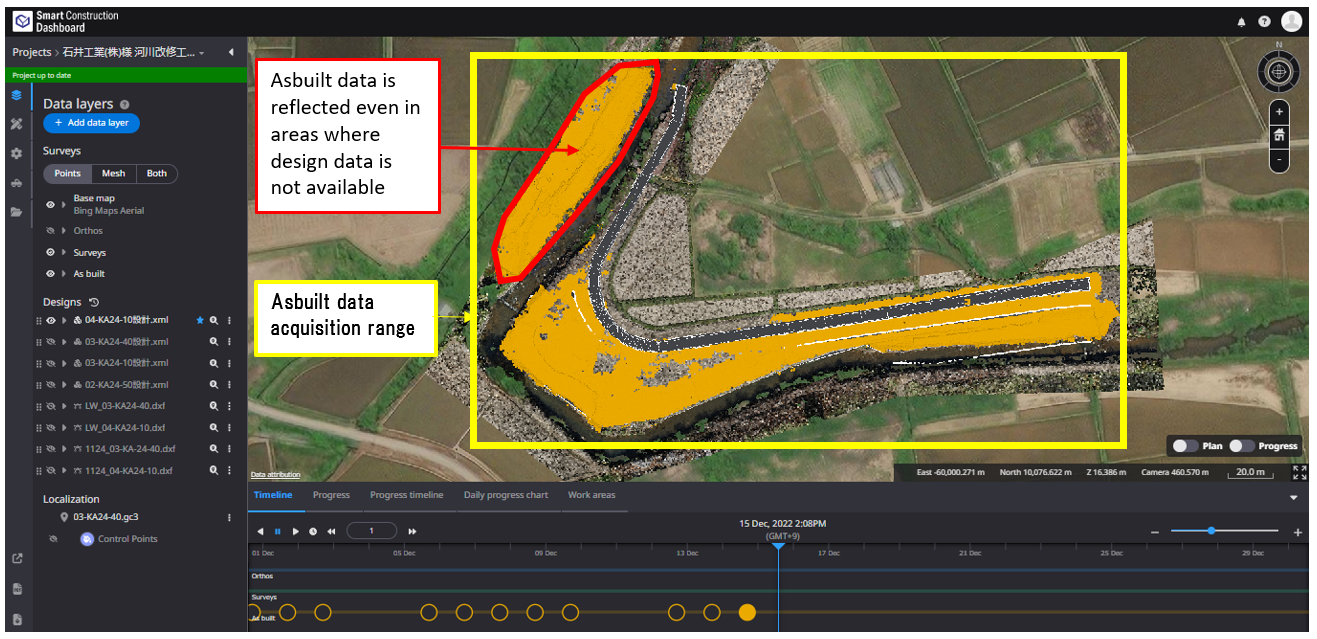

The acquisition range of AsBuilt data in Smart Construction Dashboard is the yellow range shown in the image below.

As-built data performs acquisition and calculation within internally defined ranges, executing this work in several block units.

To ensure complete coverage of the design data, execution may require multiple passes for large-scale projects, potentially increasing processing time.

The starting position of the rectangle defining the design scope and the block acquiring As-built data do not necessarily coincide.

Depending on the data geometry, acquisition may extend beyond the design data.
Additionally, acquired areas may exhibit behavior where they appear cut off midway; this represents traces of the block area where As-built data was acquired.
