How to register and set up design data

Introduction

This article provides a detailed explanation on how to register and set up design data (target design surface).

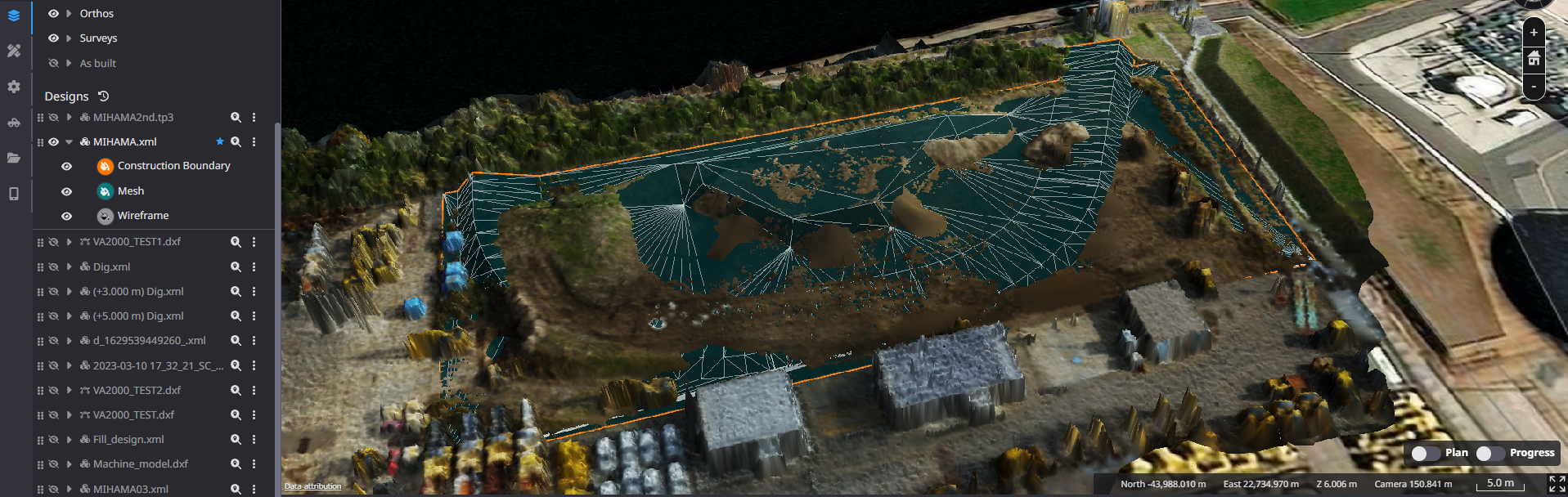

By registering the survey data as the pre-construction topography (reference topography) and inputting the design data as the target design surface, it becomes possible to calculate the soil Volume.

In addition, by surveying and registering the topography as the construction progresses, the overall progress can be calculated.

Procedures and Explanation

1. Click  【"1"Add data layer.】

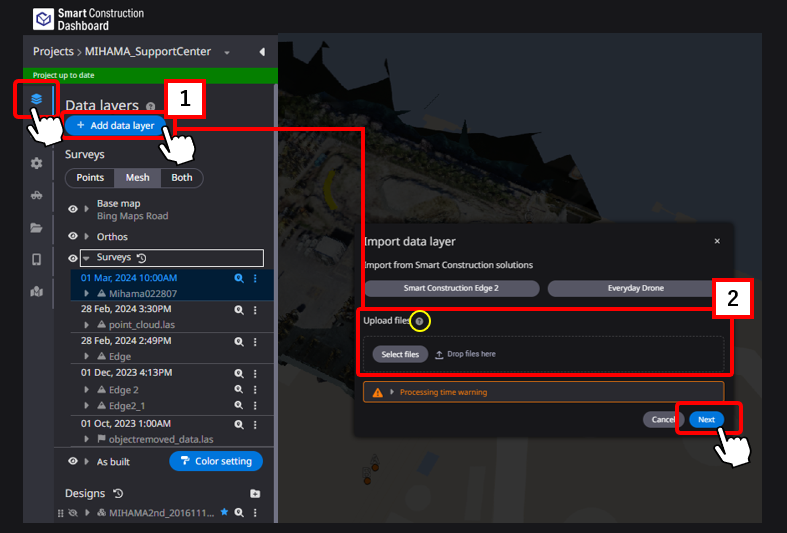

2. 【"2"Upload design data files by drag & drop or from a local folder.】

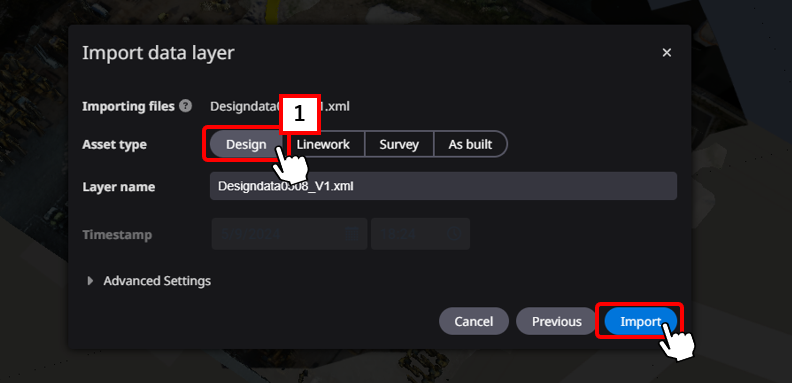

3. Select 【"1"Design】 for the type of data to be registered.

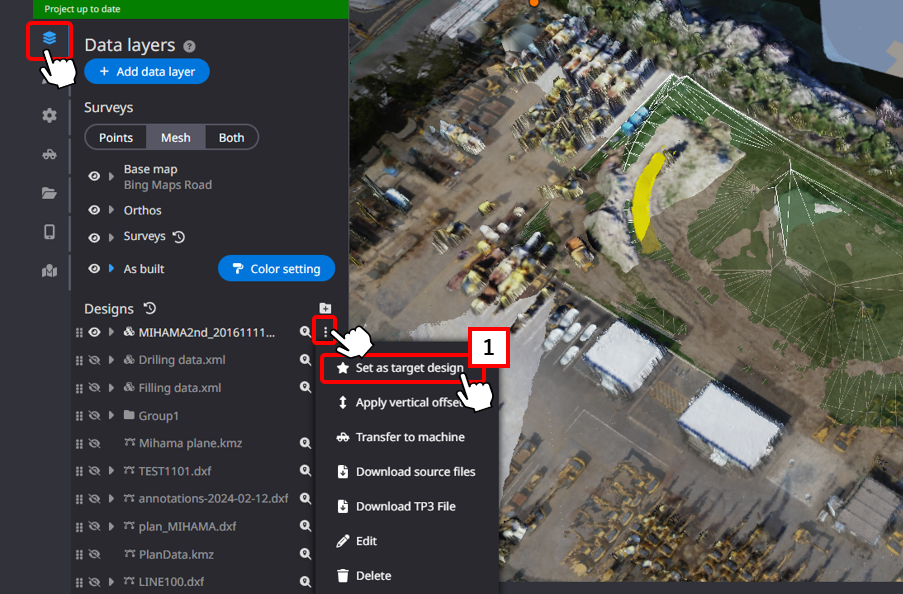

4. 【"1"Set the target design】 if you want it to be a target design surface (shape).

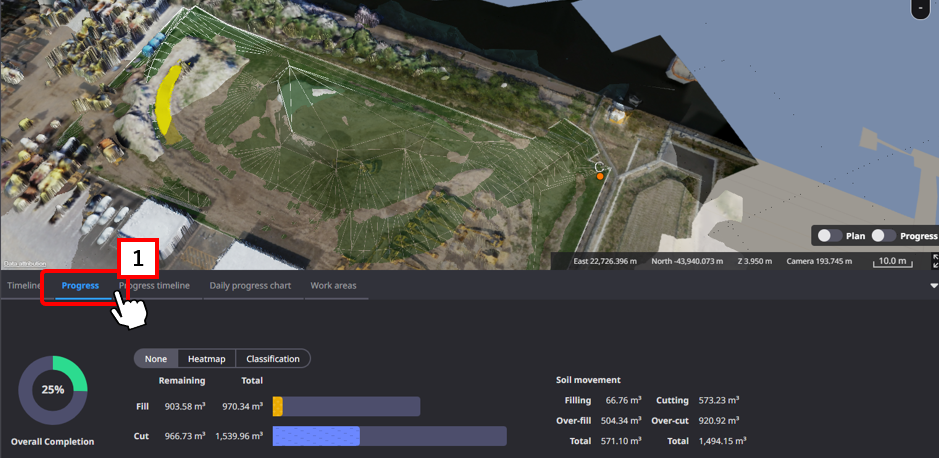

*When the registered design data is set as the target design, the soil volume can be calculated using the 【"1"Progress】 in the under panel.

Reference: For more information on soil volume calculation, click here.

Supplementation

Displaying and hiding design data, changing colors and transparency

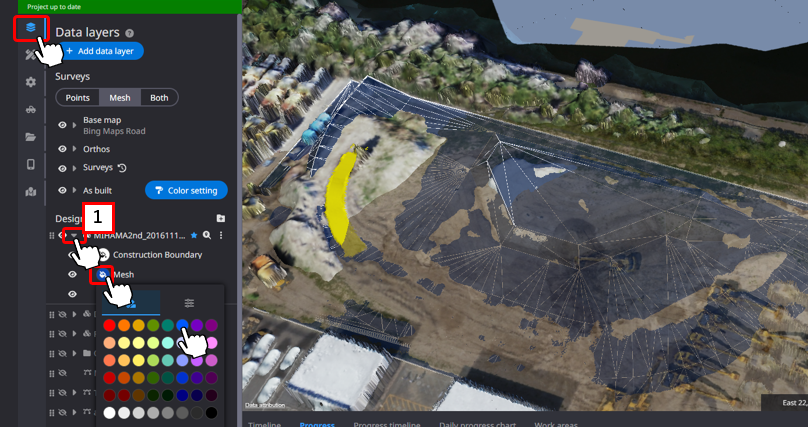

Clicking on the 【"1"▼ button】 of the target data allows you to change the color and transparency of each item in the 3D data.
You can change to display or non-display by clicking the Eye icon.

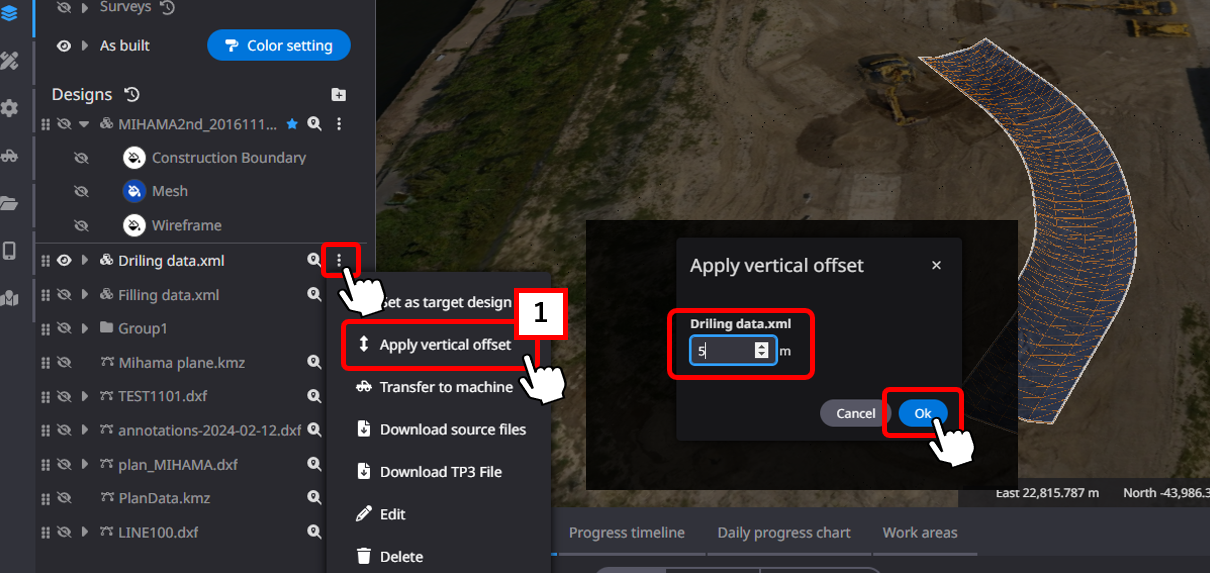

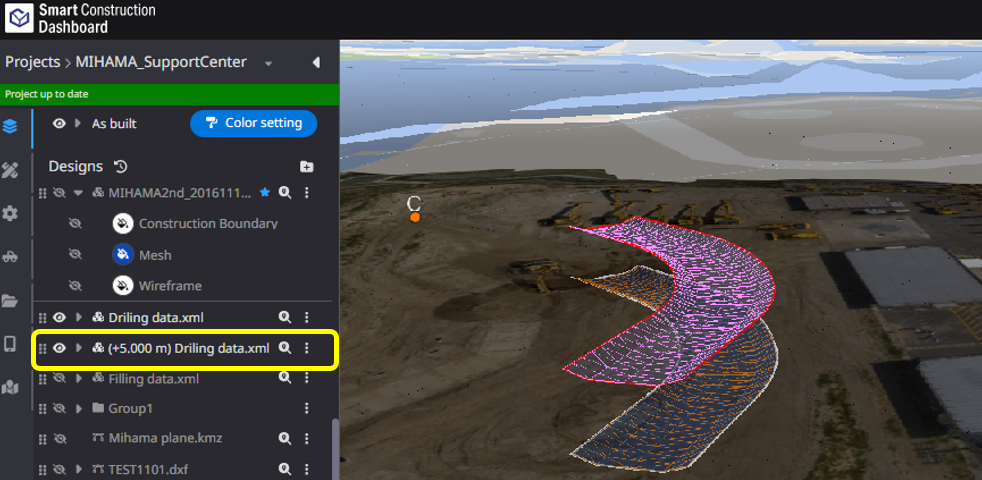

Edit Vertical Offset" (± adjustment is possible)

Select 【"1" Apply vertical offset】 to edit the adjustment.


The data name after offsetting reflects the changed value.

Measurement area setting for construction area

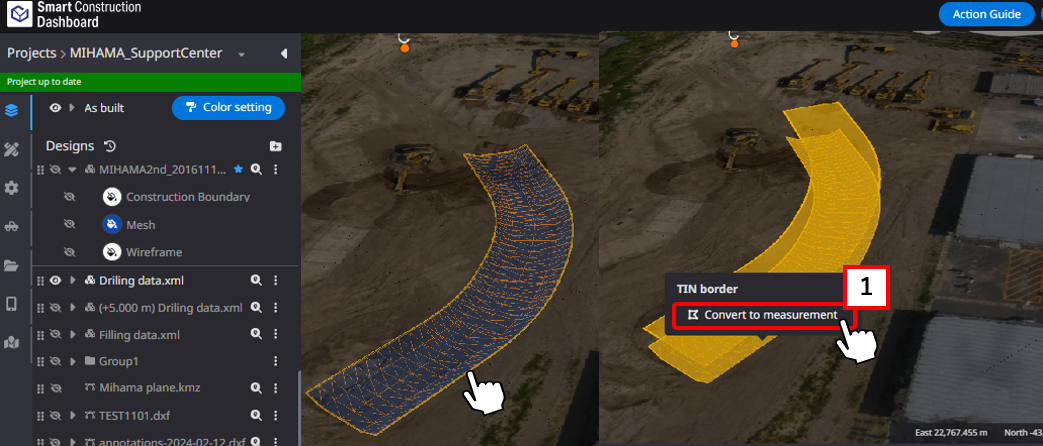

When the mouse is over the design area, the construction area can 【"1"convert to measurement.】
