How to register and set up floor plan data

Introduction

This article provides a detailed explanation on how to register and set up floor plan data.

The floor plan data can be registered and overlaid with the design data for use in the study of the next step of construction.

Procedures and Explanation

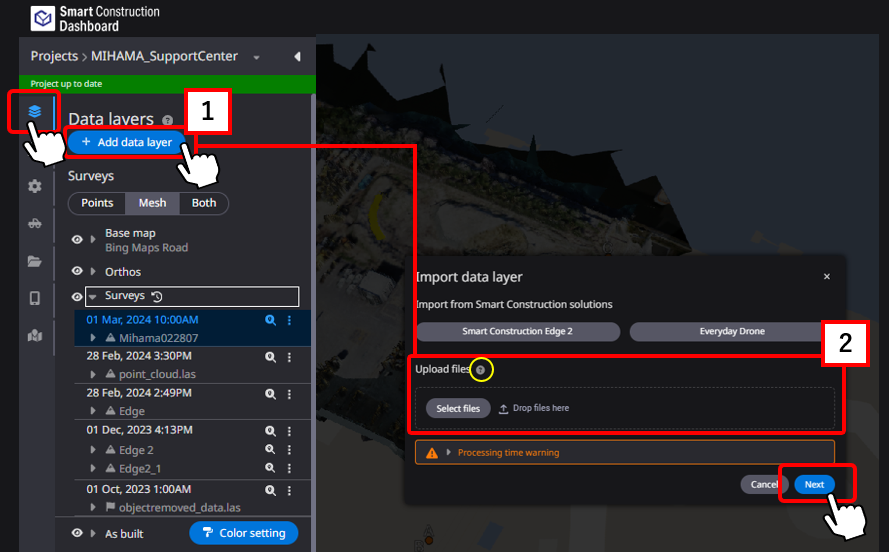

1.  Click 【"1"Add data layer.】

2. 【"2"Upload the design data file by drag & drop or from a local folder.】

To check the extension of the data that can be registered, click on the ? mark.

Please make sure that the scale, unit (m), and coordinate system of the floor plan data to be imported match the project settings in advance.
AutoCAD 2010 or higher is recommended for the version of the DXF output data.

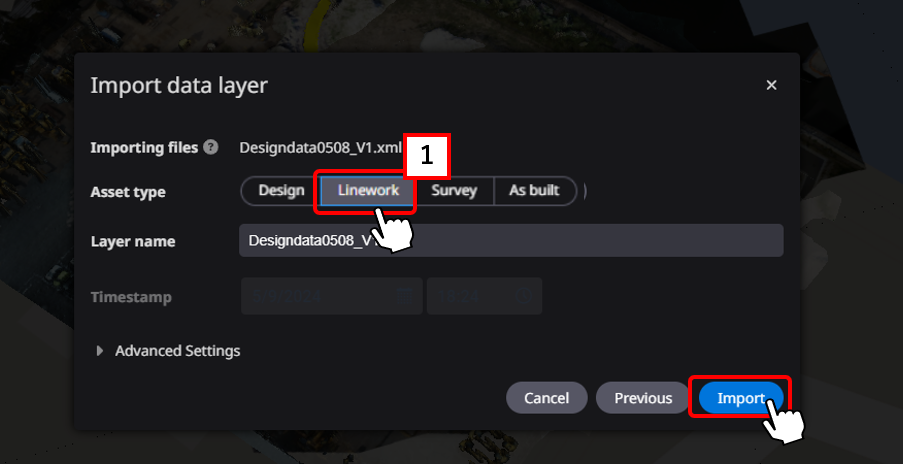

3.  Select  【"1"Linework】for the registration data type.

4. Set up the floor plan.

1) Check the registered plan data in the "Setup Data" in the side panel.

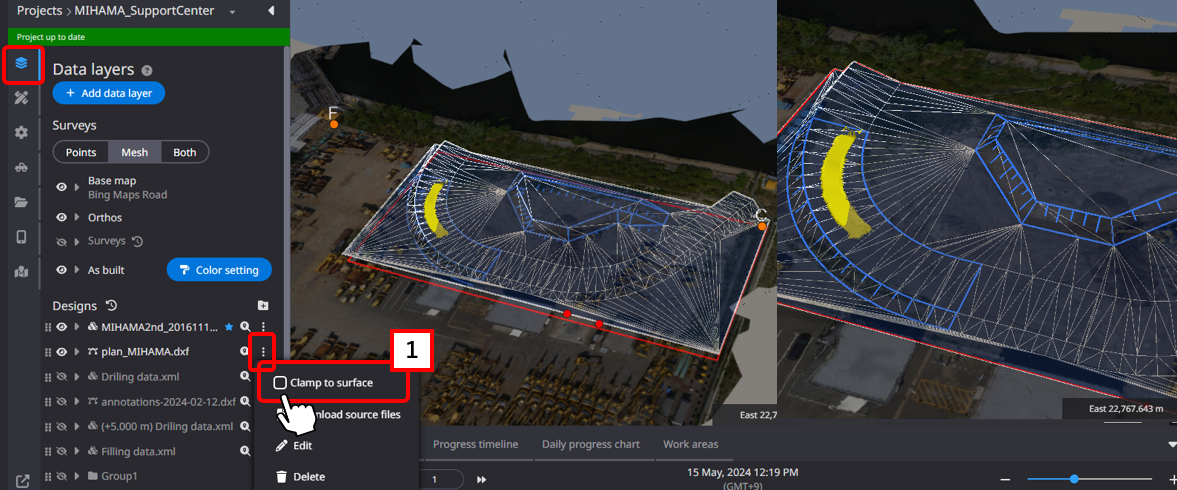

2）Click setting mark of the plan data which you want to superimpose on the target design surface.

3)  Check 【"1"Clamp to surface.】

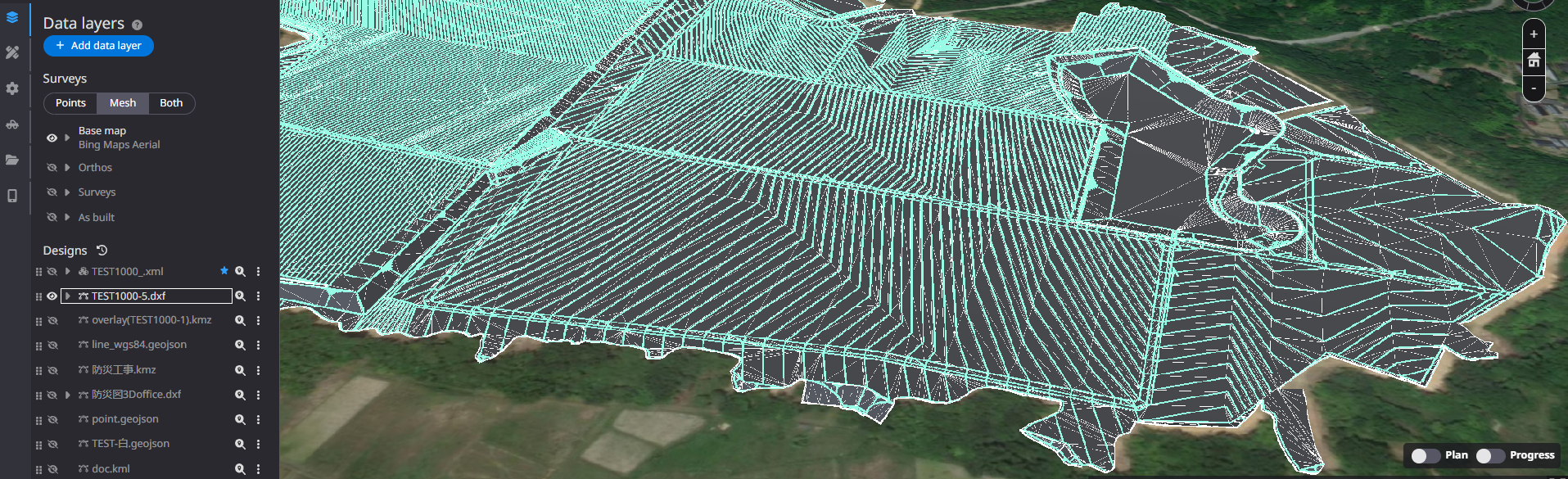

5.The floor plan data will be displayed.

1) When only the survey data is displayed, the floor plan will follow the terrain.
*When “Display design data on” is selected, the order of priority is changed in consideration of the elevation.

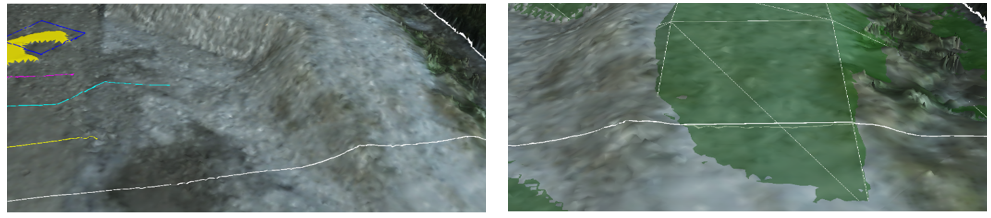

　　　Ex: Display - only survey data 　　　　　　　　　　Ex: Display - survey & linework data

2) When the survey data display is off, the floor plan is attached in the order of priority of ortho data and background map.

When ortho data display is on, ortho data takes precedence over the background map and the floor plan is displayed.
*Design data alone is not displayed.

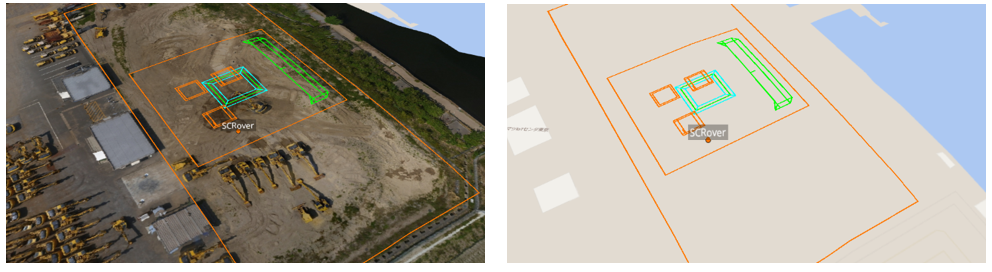

Ex: Display -Ortho only 　　　　　　　　　　　　Ex: Display - base map only
