How to change the time zone for acquisition of As Built data

Introduction

This article provides a detailed explanation on how to change the retrieval time of as-built data.

If the machine has a data synchronization time set, the synchronization time of the as-built is initially set at 17:00. As a result, data that has been installed after 17:00 will be updated on the following day.

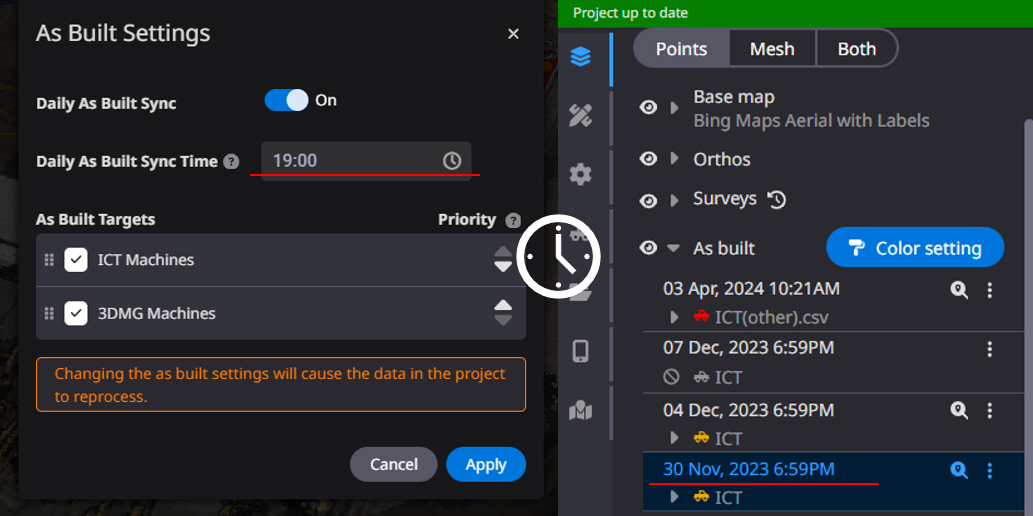

For example, by changing the synchronization time to 19:00, the as-built from 17:00 to 19:00 will be reflected.

Please adjust the settings according to the operational hours of the construction site.

Procedures and Explanation

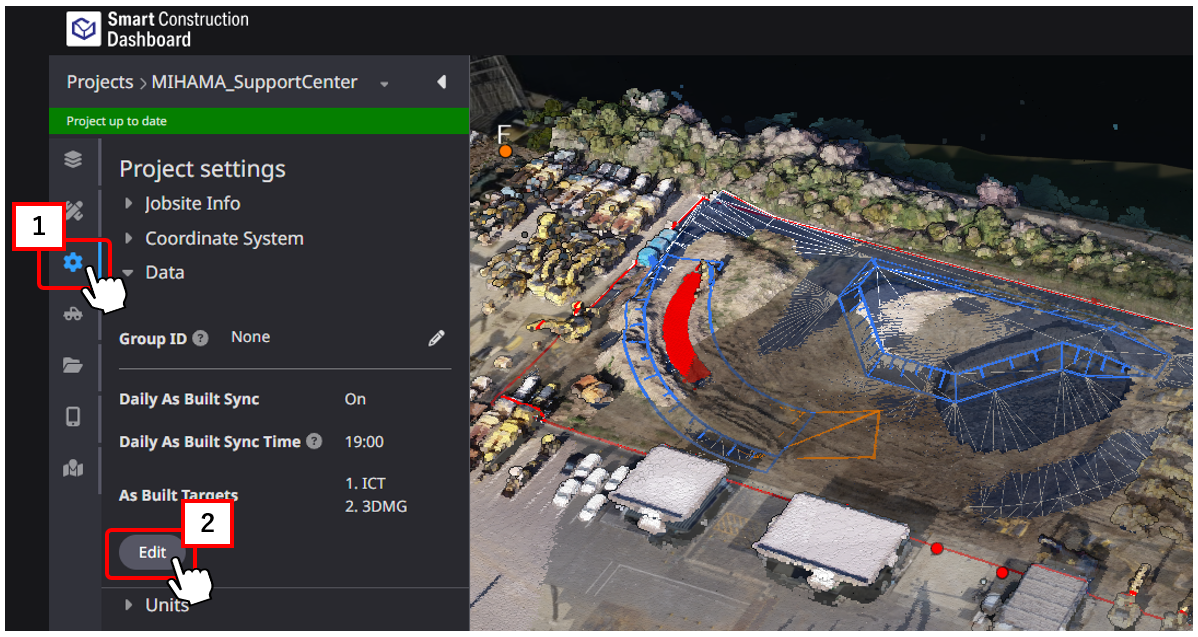

1. Click on the 【"1"Settings icon】 in the side panel.

2. Click "Data" and then select 【"2"Edit.】

3. Edit the data linkage.

Settings for data linkage of construction history
Confirm that "Daily As Built Sync" is "On".

When "On" is selected, the construction history data will be retrieved from the linked ICT construction machine.

Settings for the construction history acquisition time

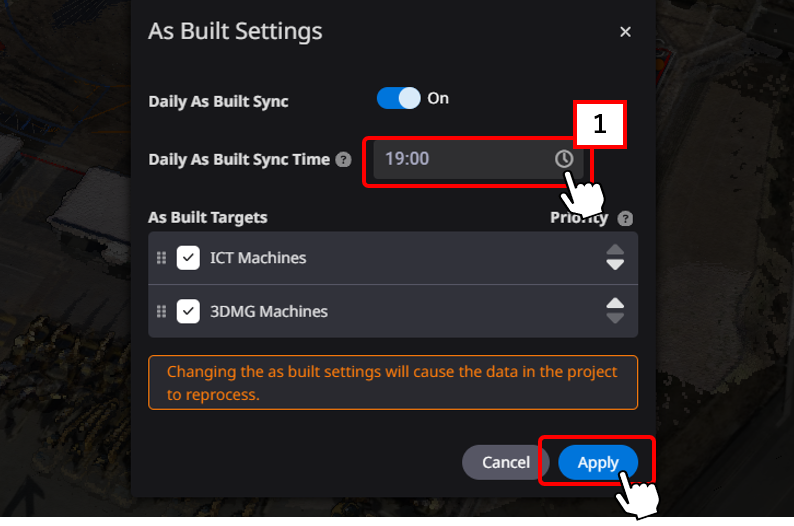

Set the 【"1"Daily As Built Sync Time.】

*The default synchronization time is 17:00 (daily update).

*Synchronize the construction history data acquired from the linked construction machine in the past 24 hours at the set acquisition time.

*In areas where daylight saving time is introduced, data acquisition will start one hour later than the actual local time during the daylight saving time period.

*When the synchronization time is changed, data acquisition is retroactively started from the initial terrain date, so it may take a long time to complete data acquisition at long-term sites.
