IntroductionThis article provides a detailed explanation of the setup process for linking Smart Construction Dashboard Edge2 with your project site to directly upload data after measurement processing.
You must first join the members of the site information where the data will be uploaded.
ProcedureMarch 25, 2026
By updating the Smart Construction Edge device to the latest software version,
after generating survey data in the tablet app settings, it is now possible to automatically reflect the data in Smart Construction Dashboard.
How to sett up Automatic Reflection Settings
How to import Survey Data ：Application: Smart Construction Edge2

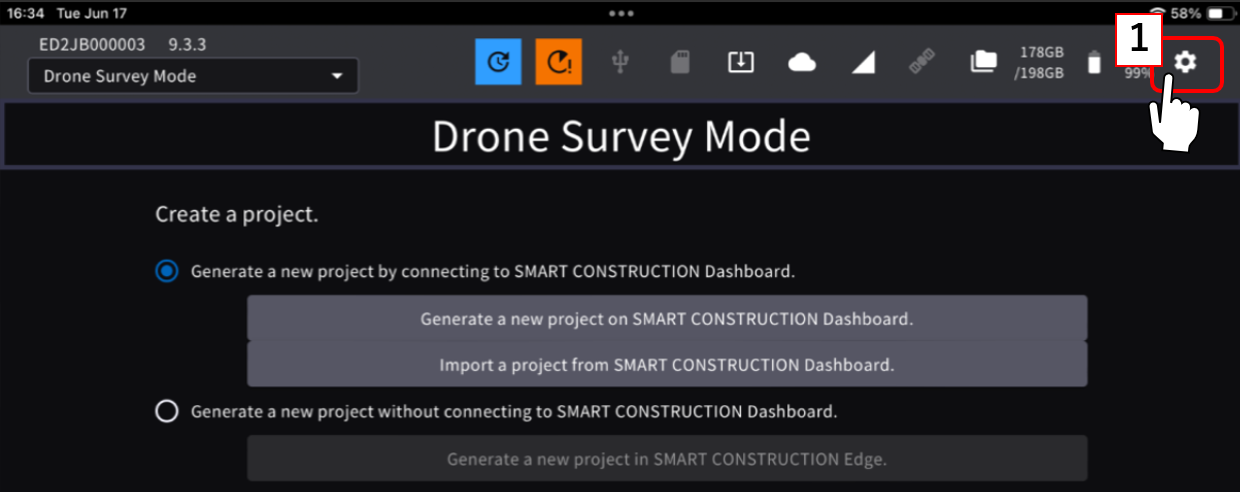

1． 1. Launch the Smart Construction Edge2 application and tap the “Settings icon”.Tap the “SMART CONSTRUCTION Account” login button in the settings.

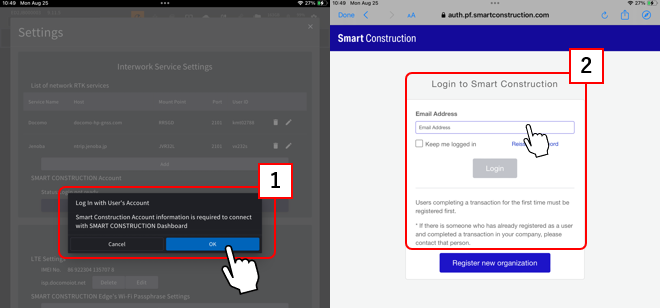

2. Click “OK” to proceed to the login screen and log in using your existing Smart Construction account.
No new company registration is required.

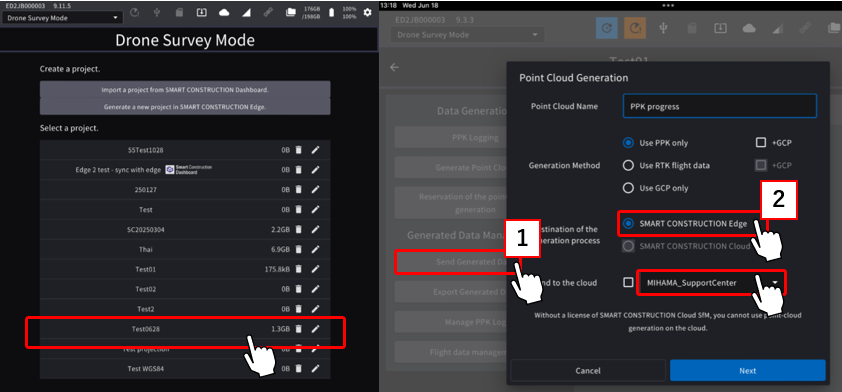

3．To transfer processed data, select the project with processed data, choose “Send to Cloud,” select Smart Construction Edge, and tap the displayed project.
After transfer: Application: Smart Construction Dashboard

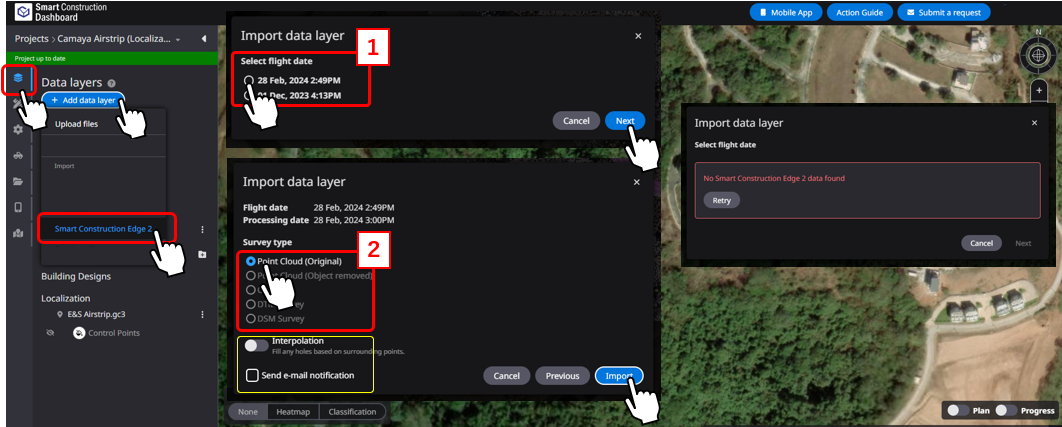

1. Click the Data Layer icon, then click "Add Data" and then click "Smart Construction Edge2".
After a few seconds, the list will finish loading and display the processed survey data list within Smart Construction Edge2.
２. Select the survey data you wish to upload from the list, click “Next,” choose the type of survey data to upload, and click “Import.”
Depending on your purpose, please use the optional point cloud interpolation feature or data upload notification feature.
If in case data cannot be found, one possible reason is that the user has not yet joined the project site.
For information about the “Interpolation” option feature, please refer to : How to use Advanced setting in survey data
SupplementationHow to sett up Automatic Reflection Settings
Survey Data Transfer Application: Smart Construction Edge

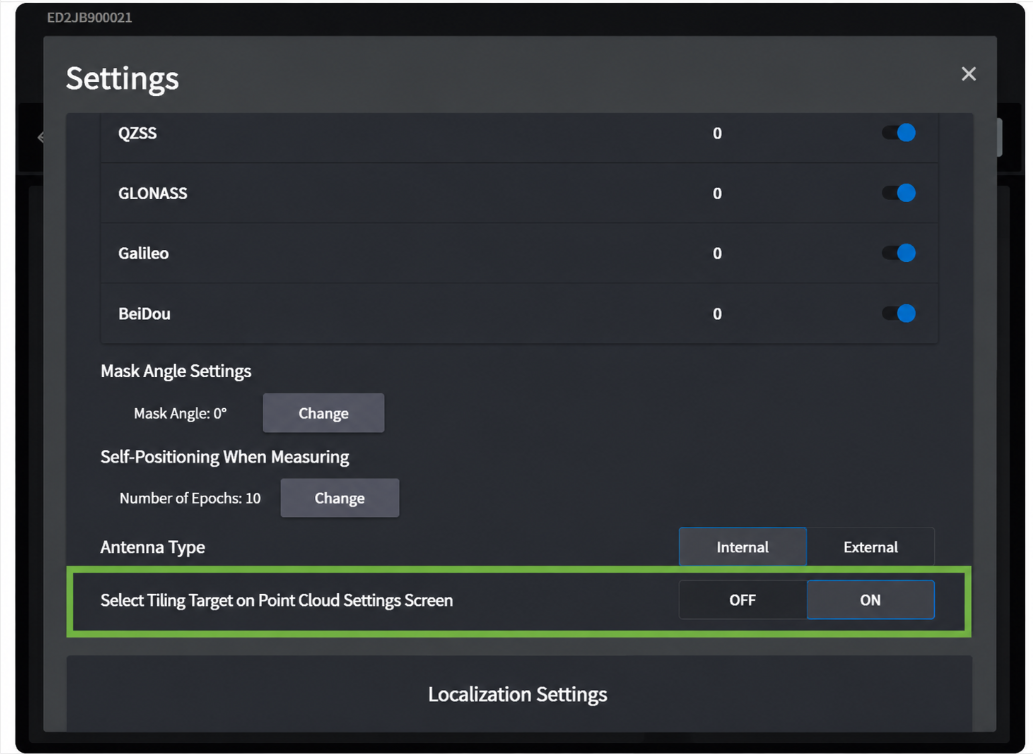

On the settings screen, you can set “Select the tiling target on the point cloud settings screen” to “OFF” or “ON.” (The default is OFF.)
Only users who want terrain updates to be automatically reflected should set this to “ON” and select the tiling target.
For users who set this to “OFF”
If unnecessary object removal is set to OFF in the point cloud settings, or if point cloud unnecessary object removal is set to ON, the unnecessary object removal point cloud will be the tiling target.
For users who set this to “ON,” the tiling target can be selected on the point cloud settings screen.
example

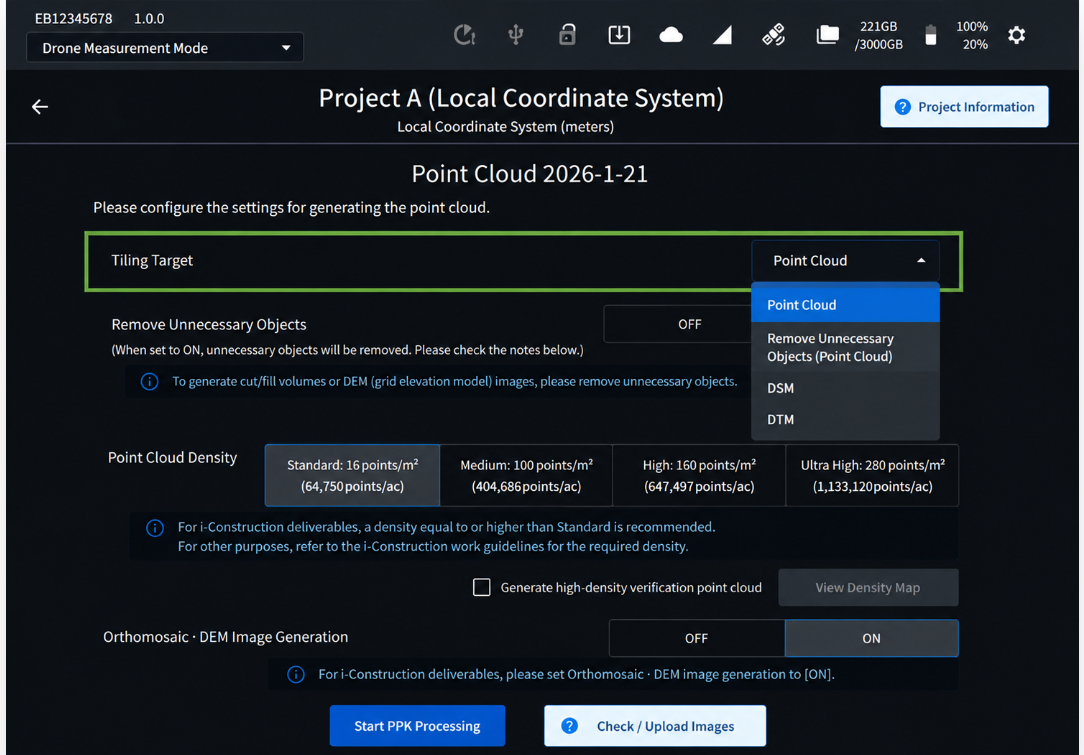

If “Select the tiling target on the point cloud settings screen” is set to “ON” on the settings screen, you can select the “Tiling Target.”
If it is set to “OFF,” it will not be displayed.
The options are as follows.
・You can select from the following four options: point cloud, unnecessary object removal point cloud, DSM, and DTM.
In addition to these four options, orthomosaic images will be automatically uploaded when they are generated.
