Registering 'Top View' (Plane data)data

Issue

What you should do when registering top view data (DXF format) in Smart Construction Dashboard:

Answer

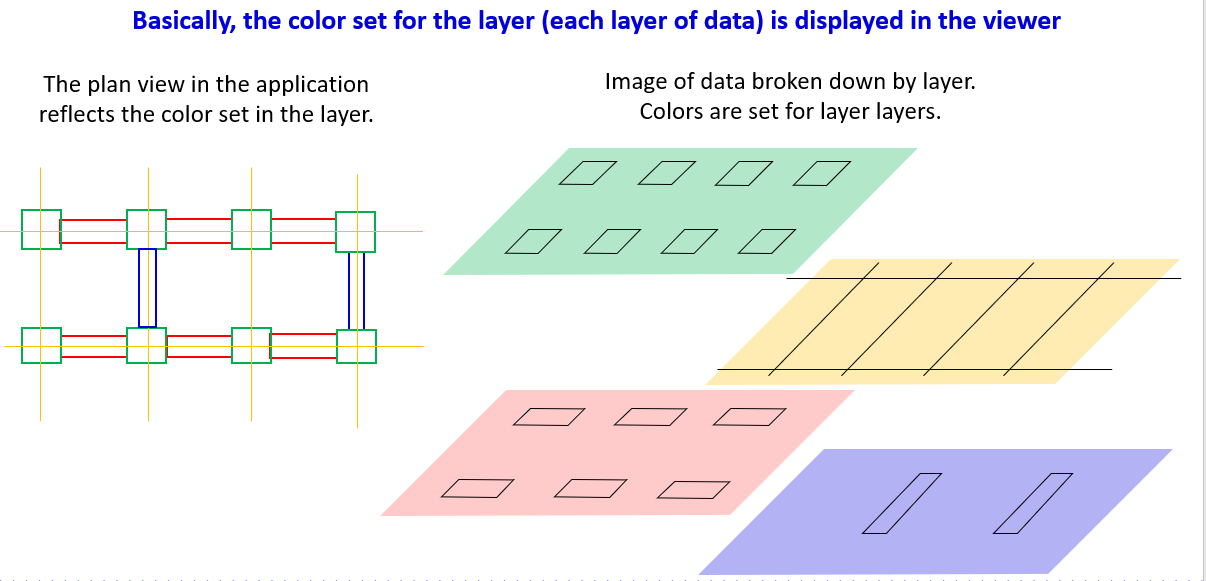

• When registering top view data (DXF format), please set colors in the "Layer" section on the CAD data.
• Keep in mind, color settings for lines and polylines cannot all be reflected, only the ones on the layer are effective.



Explanation

For more information, please refer to the following:

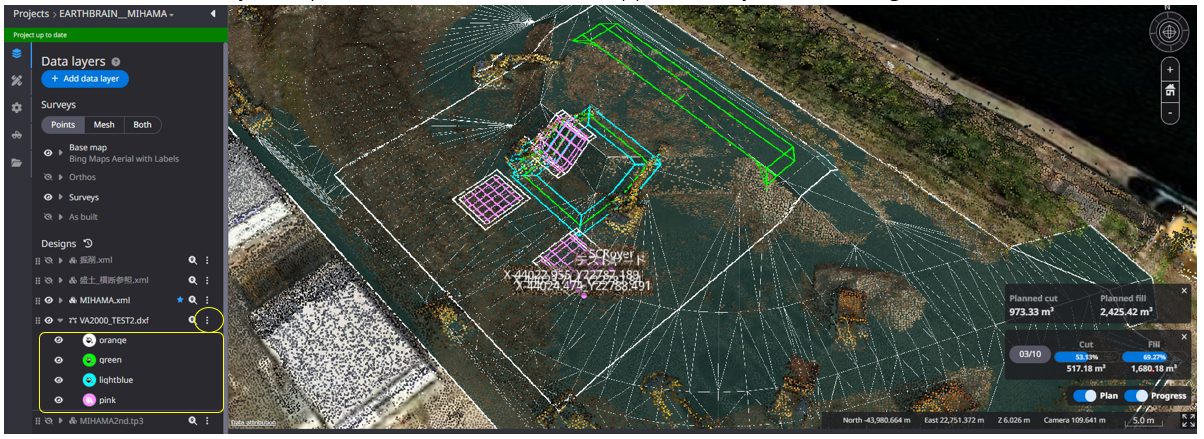

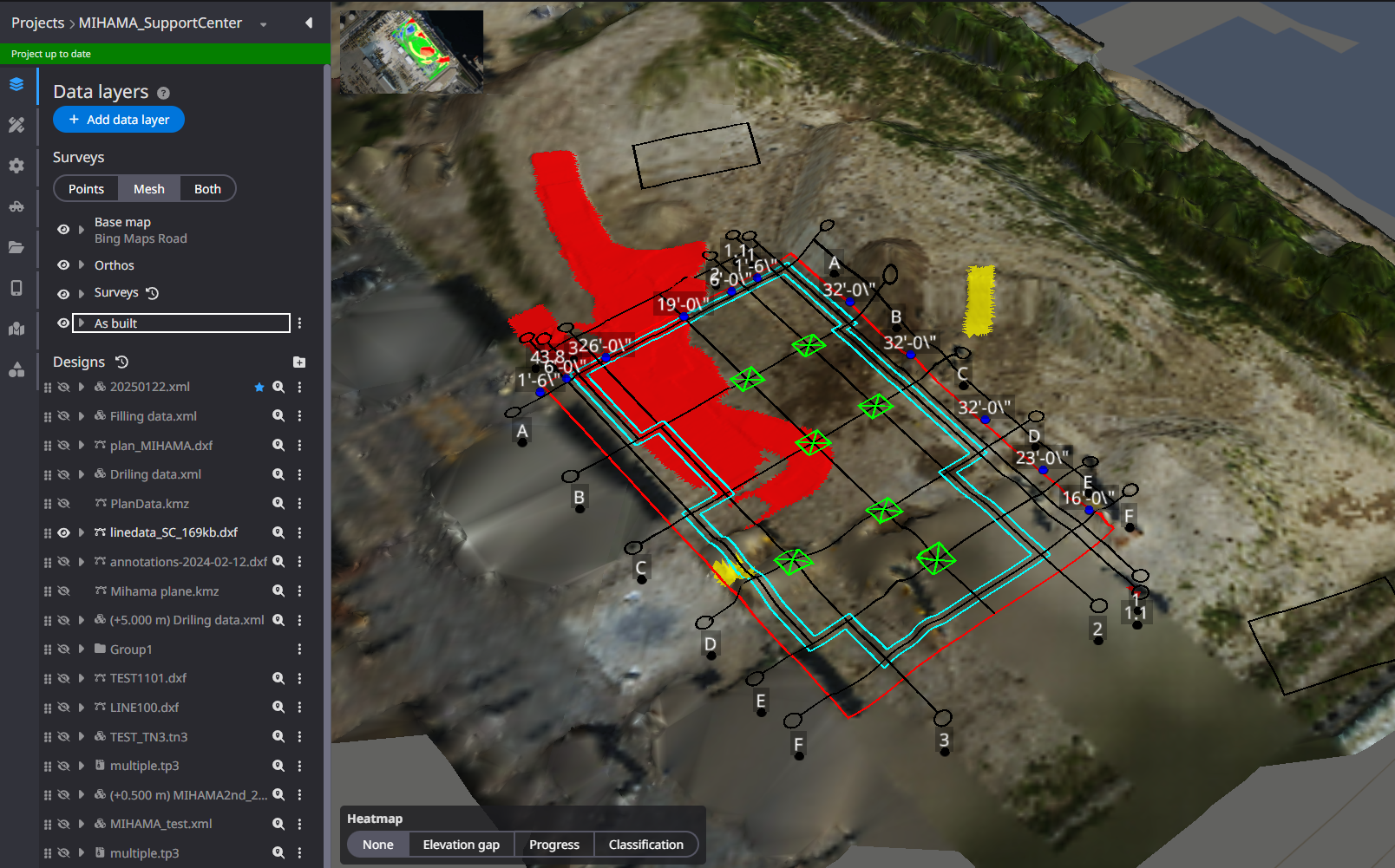

About the color display of top views in the Smart construction Dashboard

Notes
If a color is set for the line itself in a layer, the first color set in each layer will be reflected.
Not all layer colors can be read.
If the expected color is not reflected, you can change it in the application.
