As-Built Data

For the as-built data to display properly, you need 3 things: -Registered SL3 file -Selected target design -Pre con survey+survey data *Also ensure as-built is within the site start & end dates that are selected in Jobsite registration*

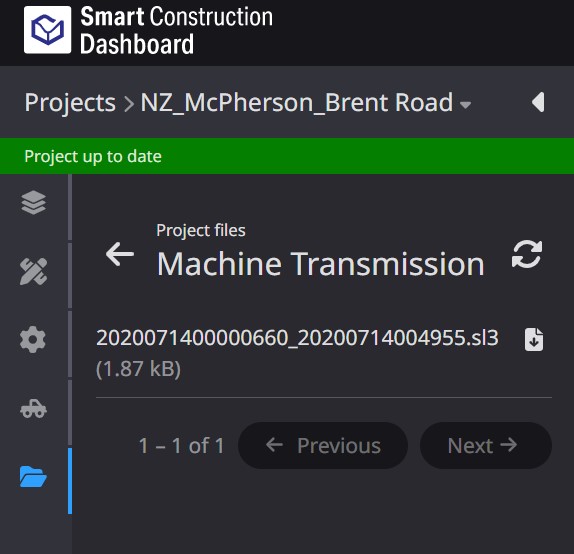

1. Ensure the SL3 file is registered in the machine. Project Files --> Machine Transmission. See the sl3 file saved here. It will look like the picture below.

   Note: The SL3 is unique to the jobsite, so if a machine is used outside of the designated jobsite, you will not receive as-built. You MUST be within the jobsite area with the machine to receive as-built data.

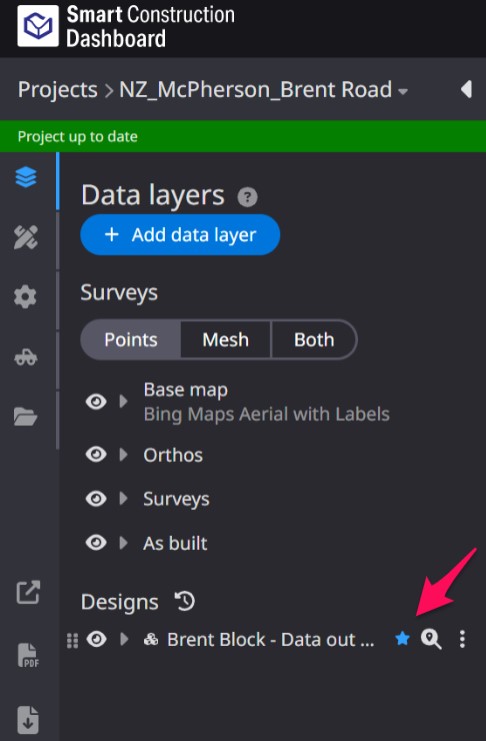

2. Ensure the site has a target design selected. The target design will have a star next to it (see pic below) If there is no blue star, there is no selected target design.

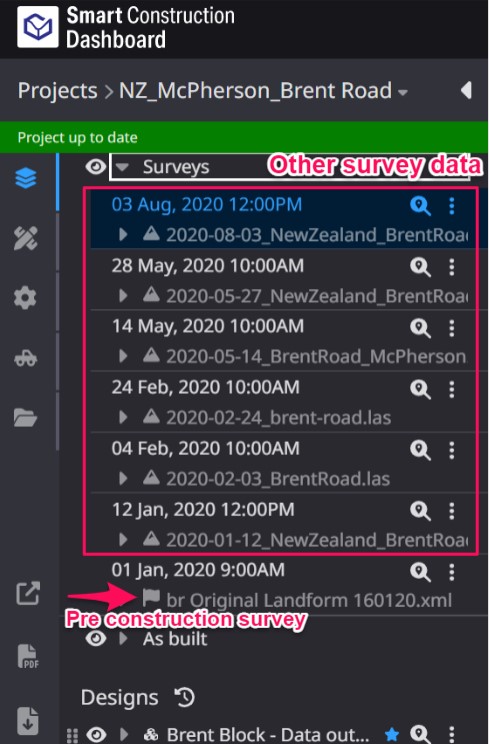

   3. Ensure the site has survey data and that a pre construction survey selected. The selected pre construction survey will have a flag to the left of it (see pic below). Be sure the pre con is the earliest/oldest survey dataset Ensure there are other surveys uploaded other than the pre con.
