【Process drone data】How do I use Filtering setting?

Question

How do I use Filtering setting?

Answer/Cause

This function removes objects from the output processed 3D data that are not required for measuring stockpiles or accurately comparing to design, such as construction equipment, buildings and vehicles.

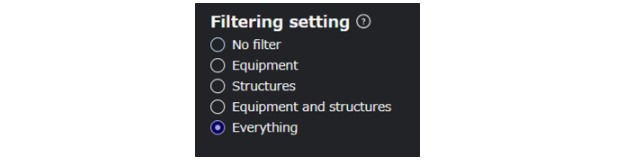

There are five filtering available as follows.

1. No filter
This setting does not delete objects.

2. Equipment
Equipment such as construction equipment and vehicles are removed from the processed 3D data.

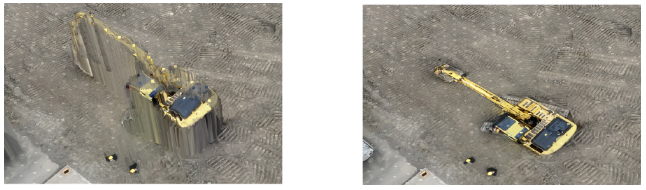

　　　　　　　　No filter　　　　　　 　　　　　　　　　　　　Equipment filter

3. Structures
Structures such as buildings are removed from the processed 3D data.
　　　　　　　　No filter　　　　　　 　　　　　　　　　　　　Equipment filter

4. Equipment and structures

“2. Equipment” and “3. Structures” are both applied to the processed 3D data.

5. Everything

Equipment, Structures and Plant are removed from the processed 3D data.
