2026/07/08 Release Note

We are pleased to announce the release of the Smart Construction Dashboard periodic update with the following dates and details.

No	Type	Function	Description
1	Enhancement	Project settings	The "Add Member" button has been added to the Site members section in the project settings. Project members can now be added directly from within the project.
2	Enhancement	Measurement	Improved polygon area measurements so that the value of the selected measurement is displayed above its icon on the 3D map. This makes it easier to identify measurement results directly on the map.
3	Enhancement	Project settings	When a new As built was added, some terrain data near the boundary between the existing terrain and the new As built could occasionally be lost. To address this issue, a new “Overlap filter scale” setting has been added to “Advanced Settings” in the “As Built Settings”. Reducing this value makes data near the boundary less likely to be removed. (Default: 1.0, Minimum: 0.01, Maximum: 2.0) [Notes] -Applying a new value triggers re-tiling. It may take some time before the changes are reflected. -Setting the value too low may cause unnecessary data to remain. We recommend adjusting the value gradually. -This setting is available only for projects that contain As built data.
4	Bug fix	Data layer	Fixed an issue where downloading a 3D design file in LandXML format could fail if a layer name contained a colon ( : ). The file can now be downloaded correctly in LandXML format.
5	Bug fix	Data layer	Fixed an issue where Ellipsoidal height was incorrectly displayed as Elevation when viewing the details of a control point registered in the localization file. It is now displayed correctly as Ellipsoidal height.

1. Reduced terrain data loss when merging As built

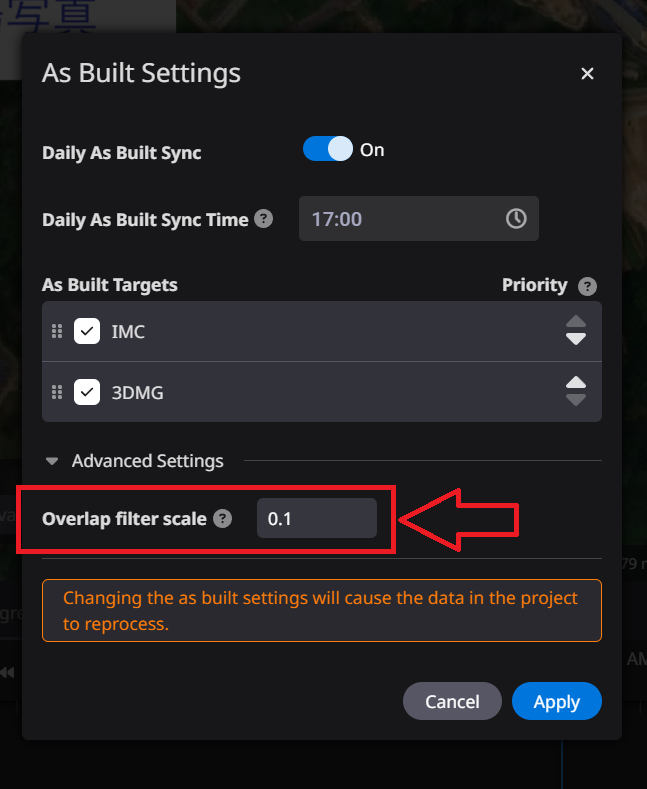

Added the Overlap filter scale setting to Advanced Settings in the As Built ****Settings dialog.
Reducing this value makes terrain data near the boundary less likely to be removed. (Default: 1.0, Minimum: 0.01, Maximum: 2.0).
