How to customize the measurement result

Introduction

This article provides a detailed explanation on how to customize of the created measurement information.

By customizing it, you can use the information obtained from terrain data for sharing and construction study.

Procedures and Explanation

Customize progress threshold and color information
Target: Progress management of measurement results

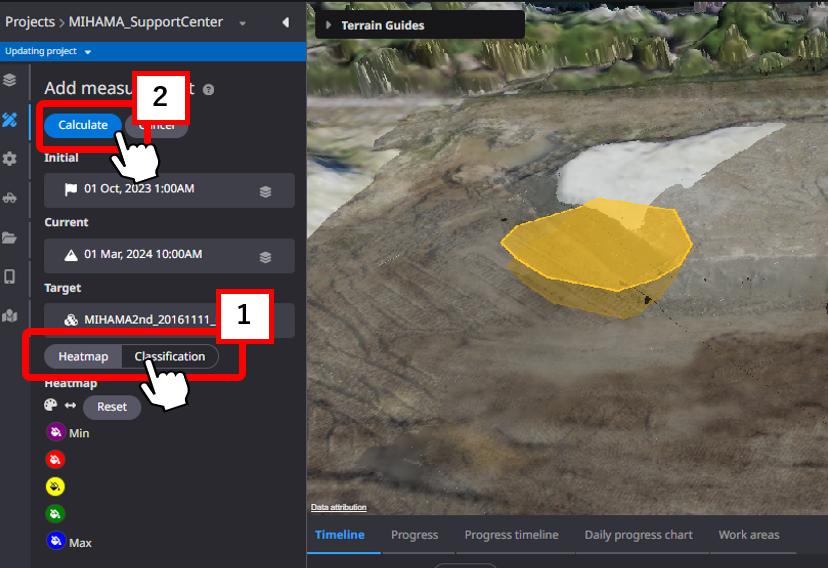

1) Select 【"1" Heat Map or Classification】and 【"2" Calculate.】

Heatmap

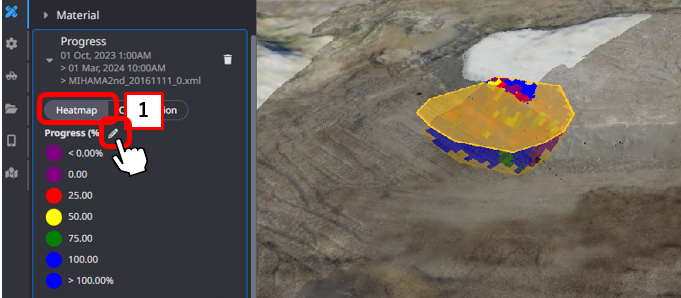

1-1) Click the 【"1"Edit button of Progress (%)】

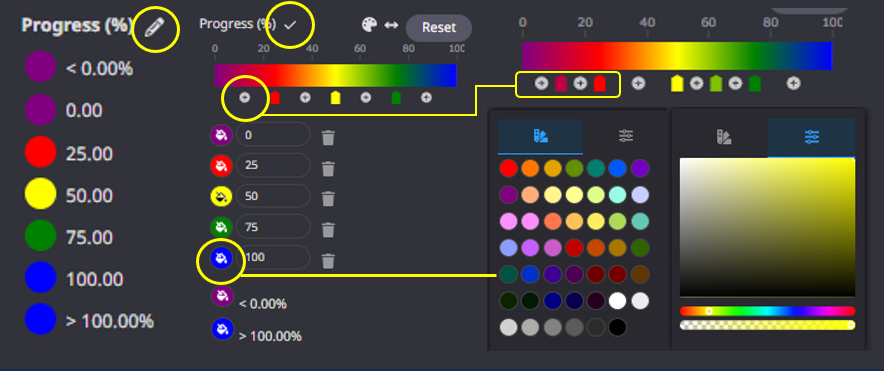

1-2) You can add threshold values, change the color information to be visualized, and adjust the transparency rate.
After making any adjustments, click the check mark to save the edited content.

Classification

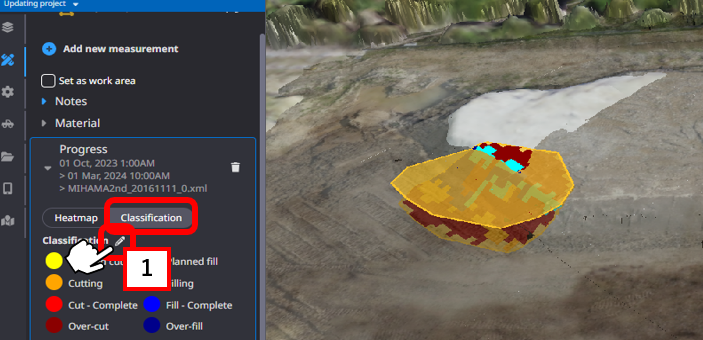

2) Click the 【"1"Edit button of Classification.】

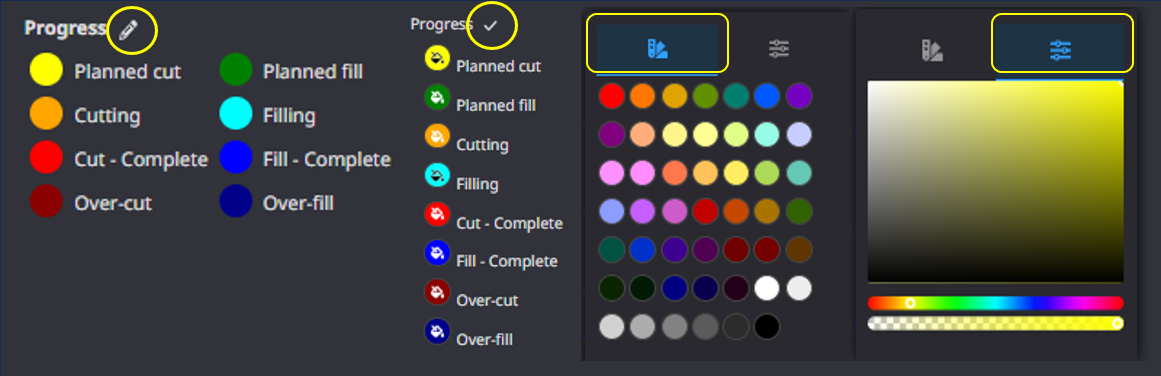

2-1) You can add threshold values, change the color information to be visualized, and adjust the transparency rate.


Customize the threshold and color information of the amount of cut and fill
Target: Result of calculation of cut and fill volume, optional reference height cut and fill volume, and optimal cut and fill volume

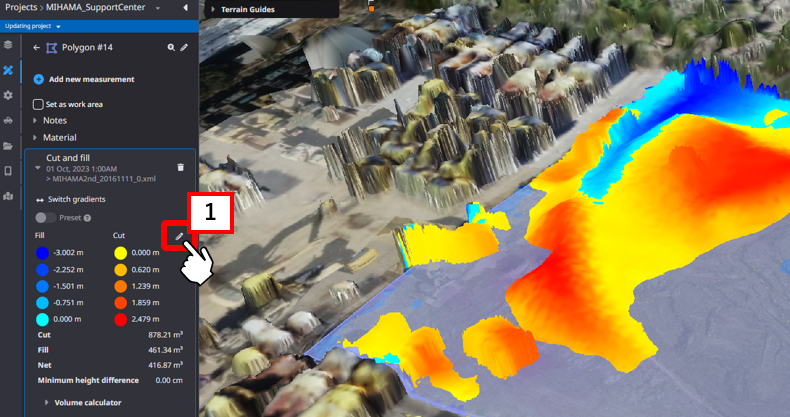

3) Click the 【"1"Edit button】 of "Cut and fill".

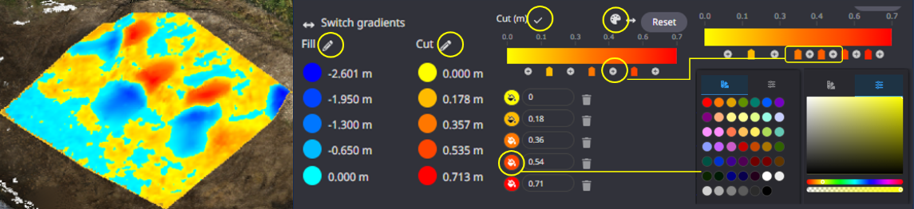

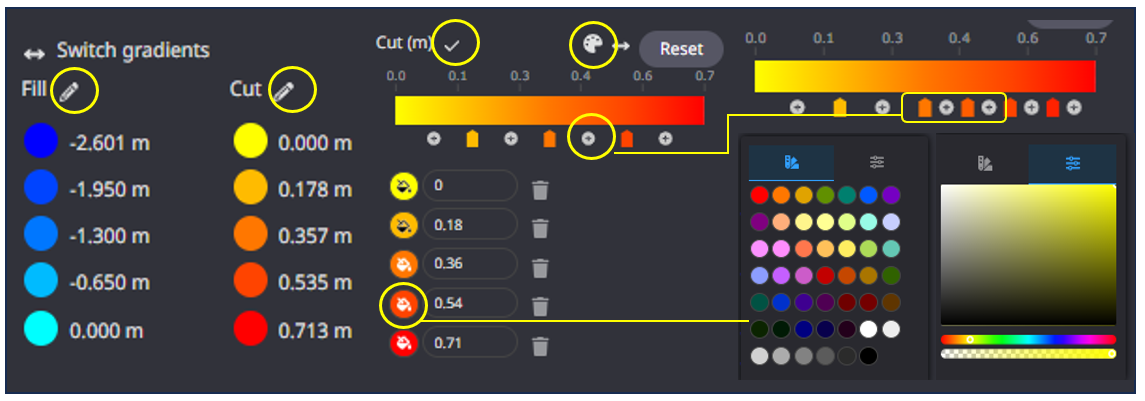

3-1) You can add threshold values, change the color information to be visualized, and adjust the transparency rate.

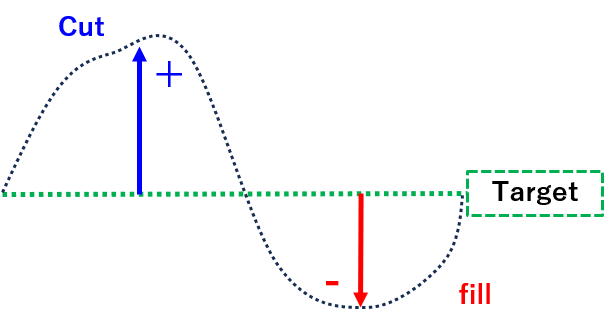

3-2) Threshold values are displayed by the following calculations based on the target shape.

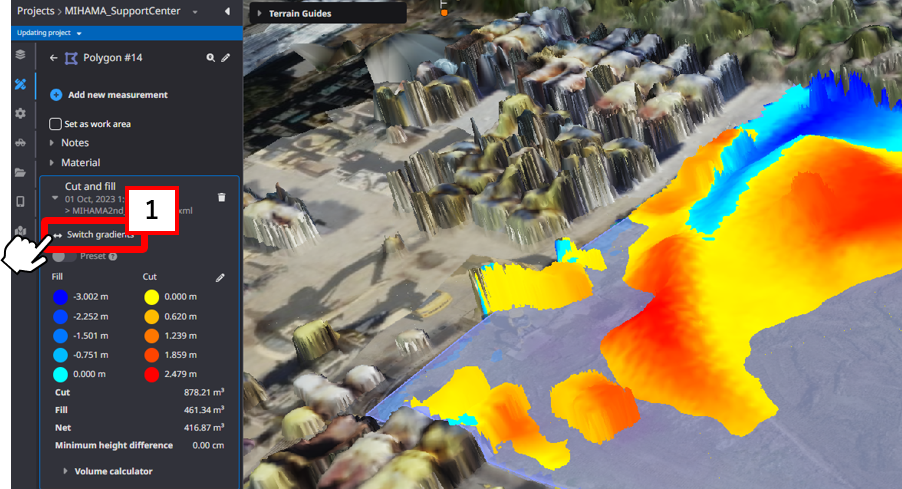

4) The color information of cut and fill can be switched by clicking 【"1"switching the gradients.】

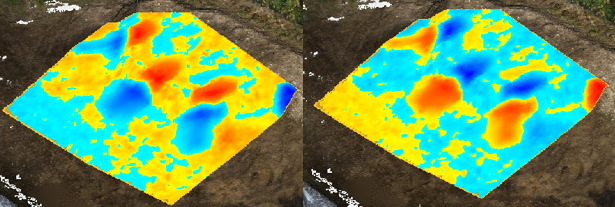

Fill = warm color　Cut = cold color　　　　　　       Fill = cold color　Cut = warm color

Customize slope and elevation threshold and color information
Target: Result of slope and elevation calculation

4) Click the edit button of "Slope" or "Elevation".

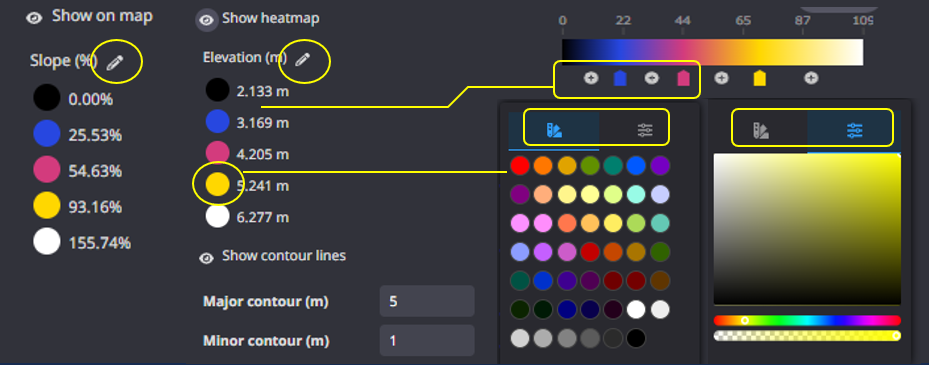

4-1) You can add threshold values, change the color information to be visualized, and adjust the transparency rate.


Preset Function

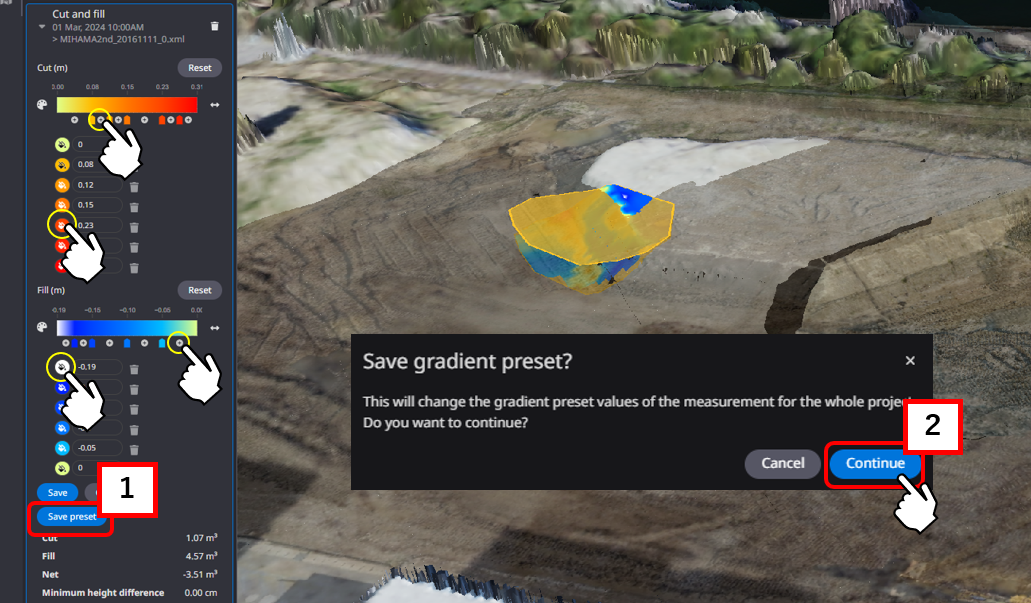

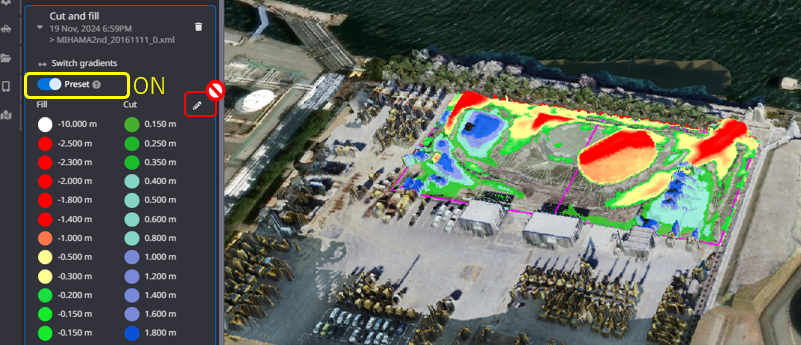

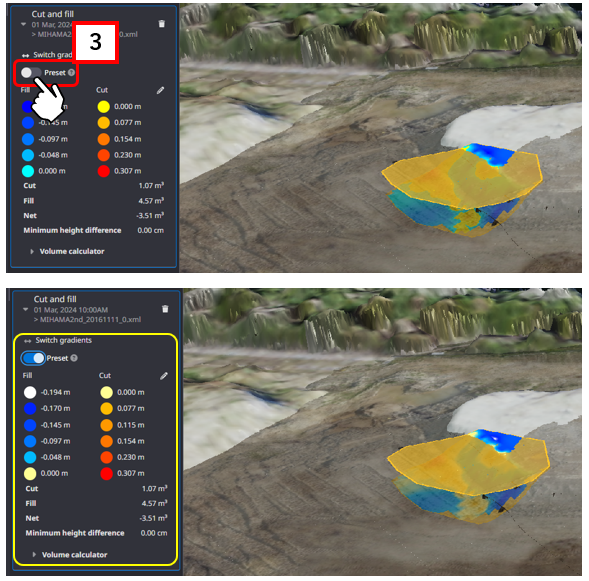

After saving the changed threshold and color settings【"1", "2"】, click the 【"3" Preset】 when displaying other measurement results to reflect the saved settings.
