What is Smart Construction Dashboard？

Introduction

This article provides a detailed explanation on the ERATHBRAIN Smart Construction Dashboard.
This will give you an overview of the product so that you will be able to use it smoothly in the site.

Explanation

Product Features

By importing 3D design data and measured point cloud data into the web application, the amount of soil required for completion can be calculated instantly.

Furthermore, by linking with ICT construction equipment, progress management can be visualized, and the amount of remaining soil and accumulated soil can be grasped at a glance.

・Data is stored in the cloud for smooth sharing with related parties.

・Progress management is possible by integrating the construction history data of ICT construction equipment with terrain data*1,2.

*1 When linked with our 3D Machine Guidance and Komatsu ICT construction equipment, the history data is automatically reflected.

*2 Data from other companies' ICT construction equipment can be integrated by uploading manually.

Data to be prepared for using Smart Construction Dashboard

Data required for site management　　　　　　　　　　　　Blue: Recommended extension

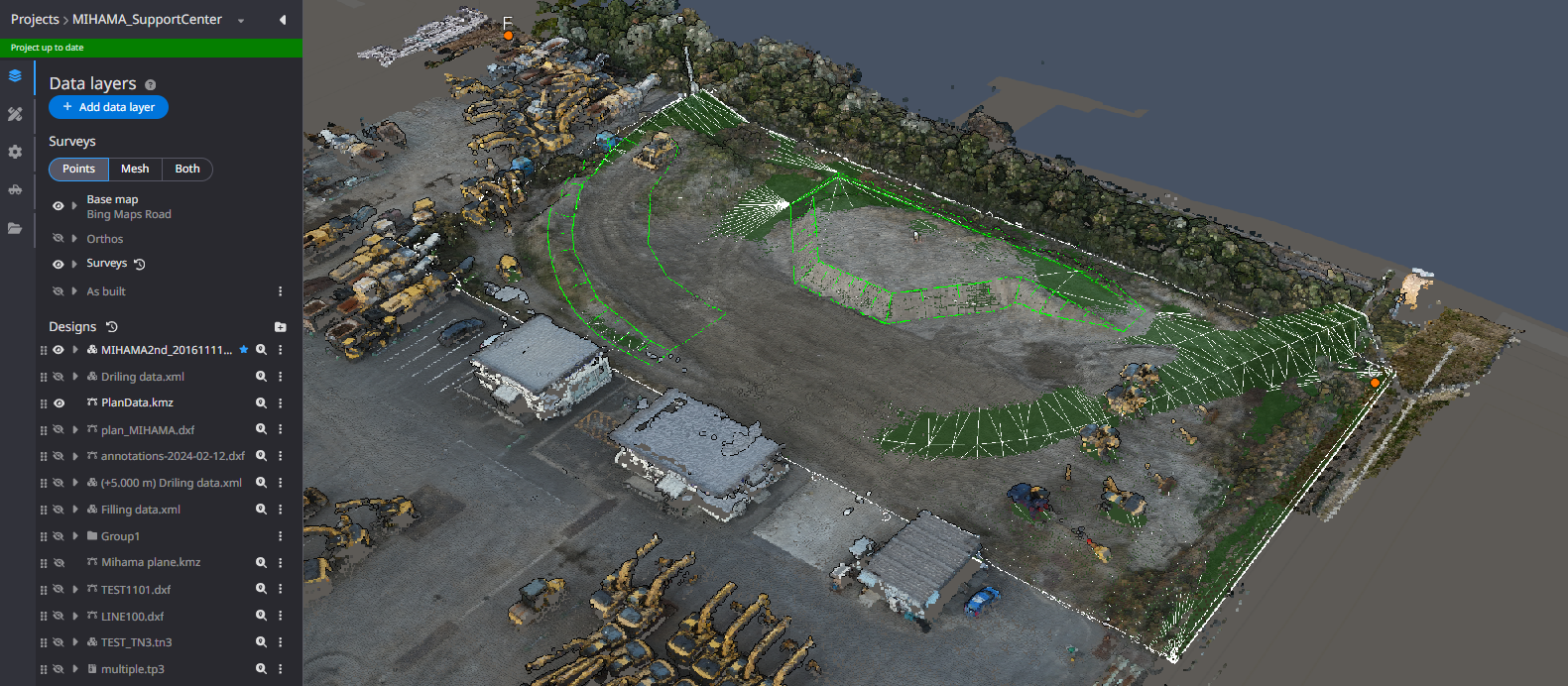

• 3D design data (dxf xml tp3 tn3 ttm svd dsz)
• 3D surveying data (dXf xml txt csv las laz)

Data more useful for site management

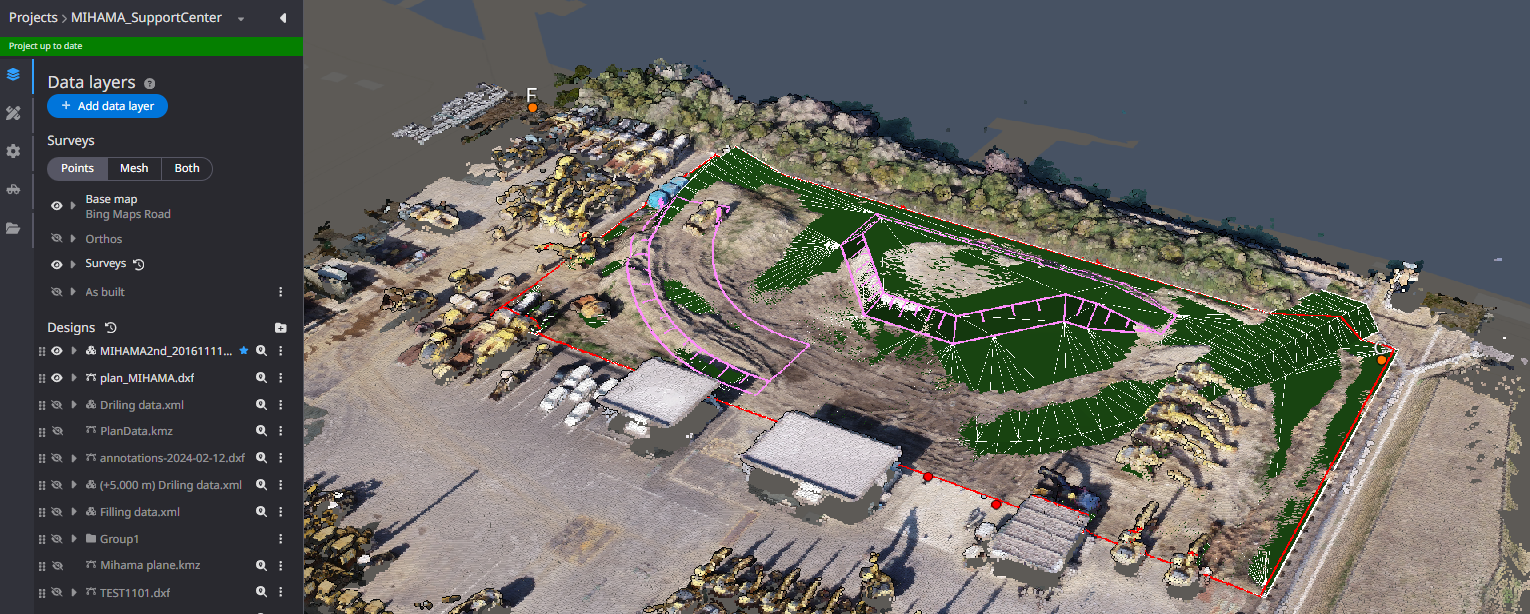

• Plane data (dxf xml tp3 svl dsz)

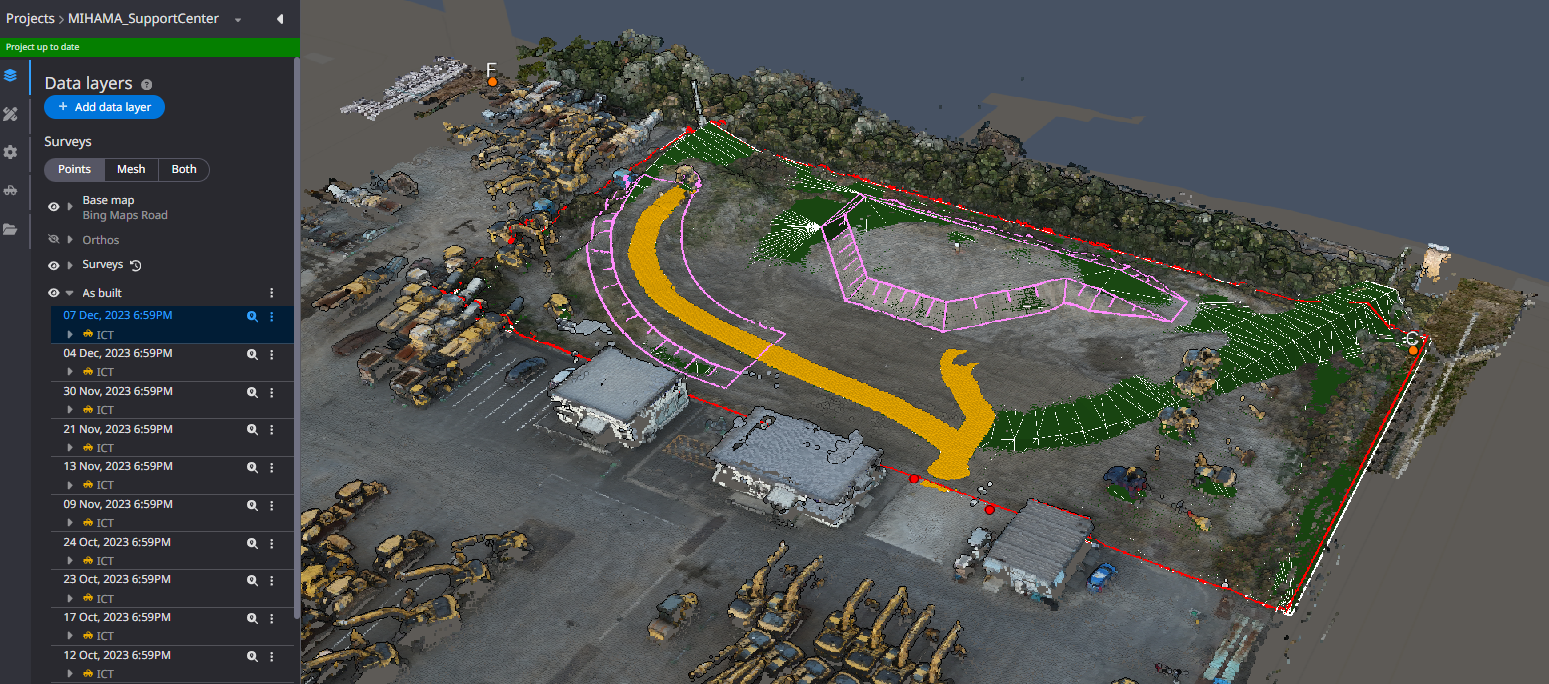

Construction history of ICT construction equipment operating on site

• Construction history data (dxf xml txt csv svl dsz)

ICT construction equipment manufactured by Komatsu (automatically reflected after linkage)
Construction equipment with 3D Machine Guidance by EARTHBRAIN (automatically reflected after linkage)

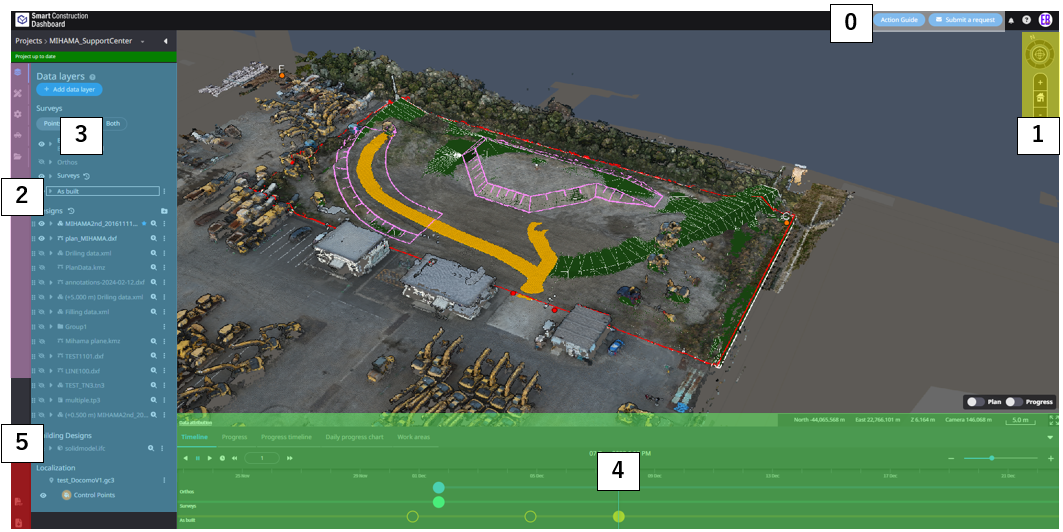

Display guide of Smart Construction Dashboard

#0 Action Guide and Inquiry Form (White area)

Please use these when you have trouble with the operation.

#1 Viewer operation (Yellow area)

Use home button and viewer rotation for zoom adjustment and operation.

＃2 Side menu (Purple area)

Use for accessing measurement, construction equipment connection, basic settings, and shared files.

#3 Side panel (Blue area)

Use for importing data and checking the list of registered assets.

＃4 Under Panel (Green area)

Displays time line of registered data, results of soil calculation set for progress management, daily progress, etc.

＃5 Output function menu (Red area)

Use this menu to access report functions.

How to use Smart Construction Dashboard

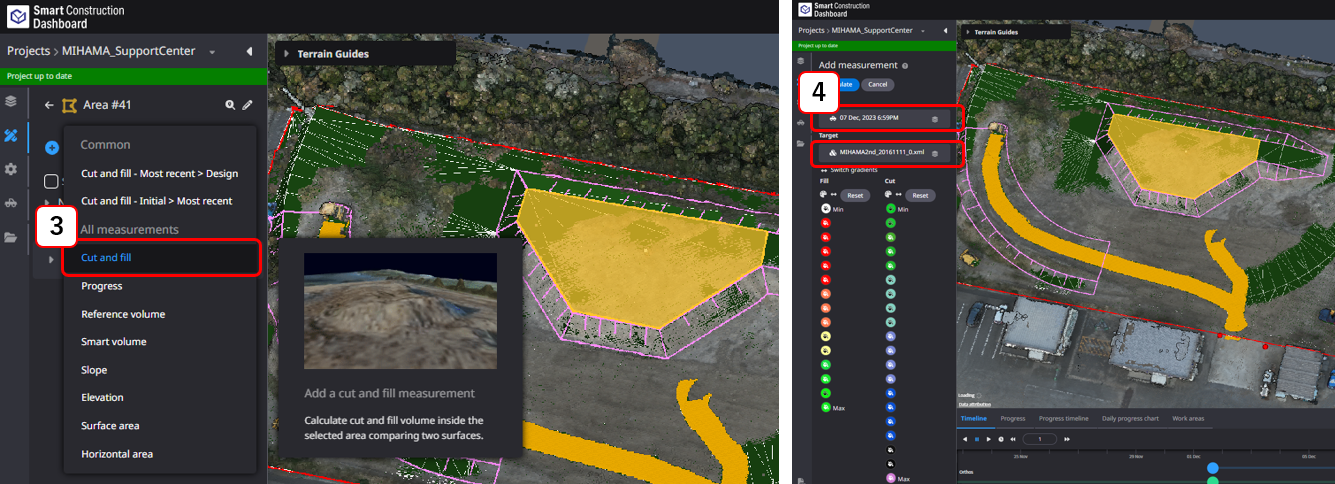

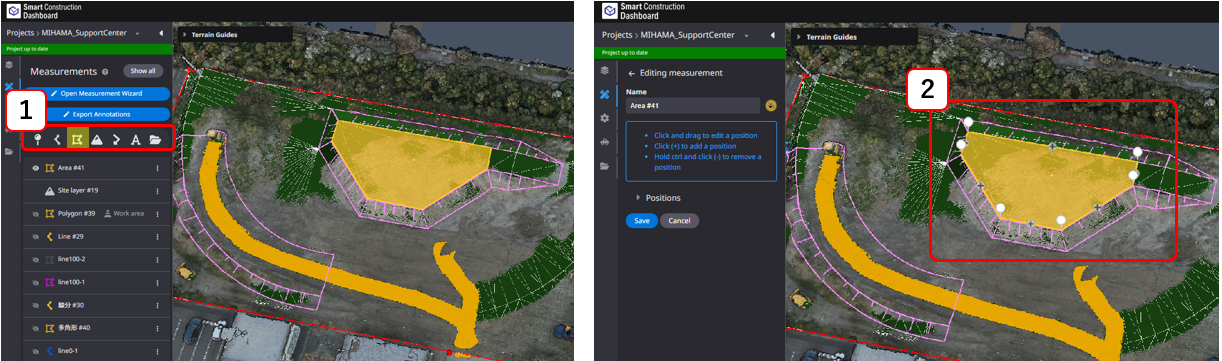

Example: Soil volume calculation (design range or partial range)

Select or enclose the area to be calculated, choose the function to be used from the menu, select the topography or data to be compared, and perform the calculation.

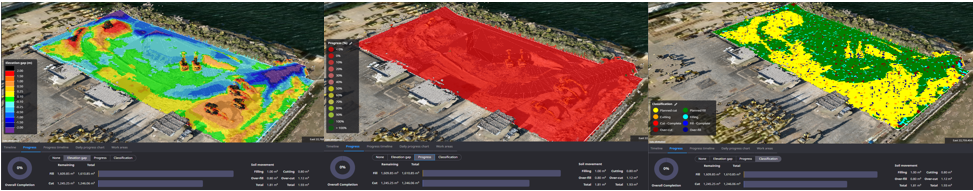

Example: Progress check

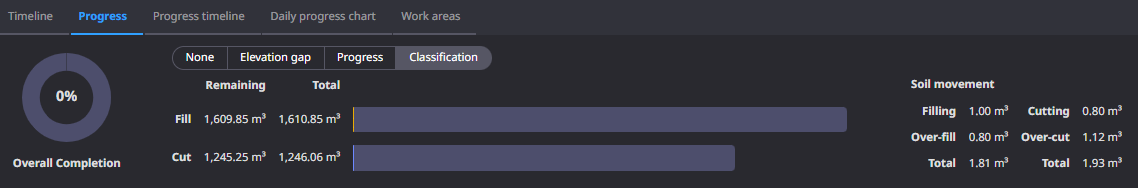

Check the progress of the construction work on a site efficiently from the under panel, and daily quantities can also be monitored by switching menus.

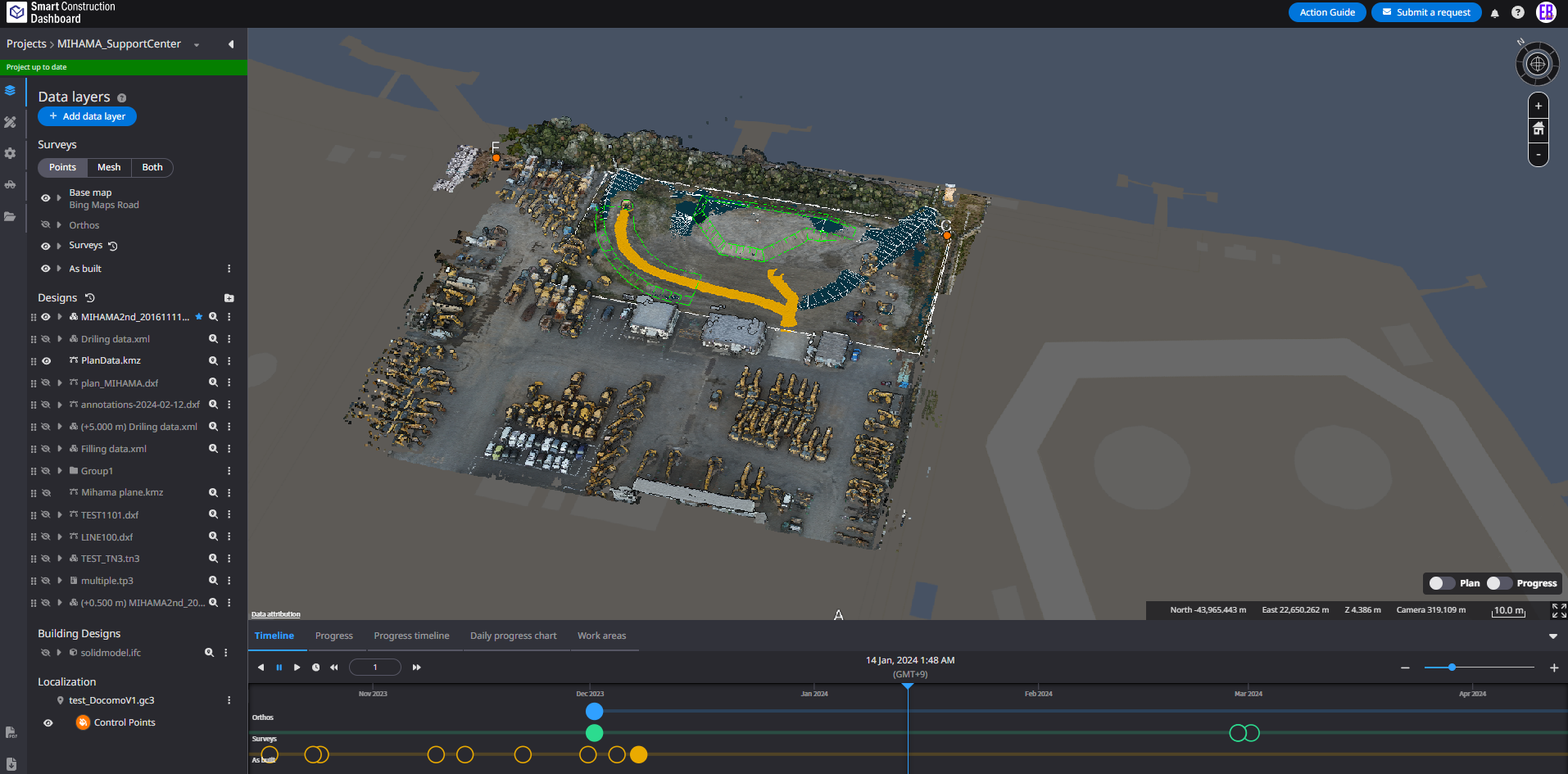

Example: Linkage with ICT construction equipment and 3D Machine Guidance

Construction history data is automatically uploaded from the linked Komatsu ICT construction equipment or EARTHBRAIN 3D Machine Guidance, and the topographical data is updated.

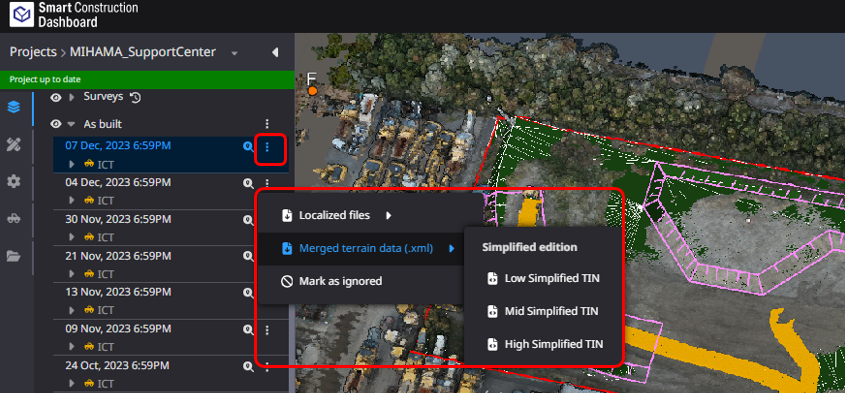

In addition, the constructed area can be extracted in csv format, etc.
