Site Measurement Workflow

Site Measurement processes calculations within the Target design of your project.

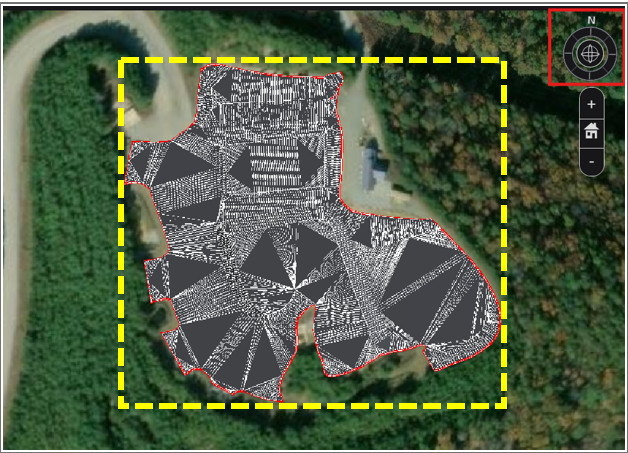

(Dashboard will calculate data in north-up large rectangular that covers the target design).

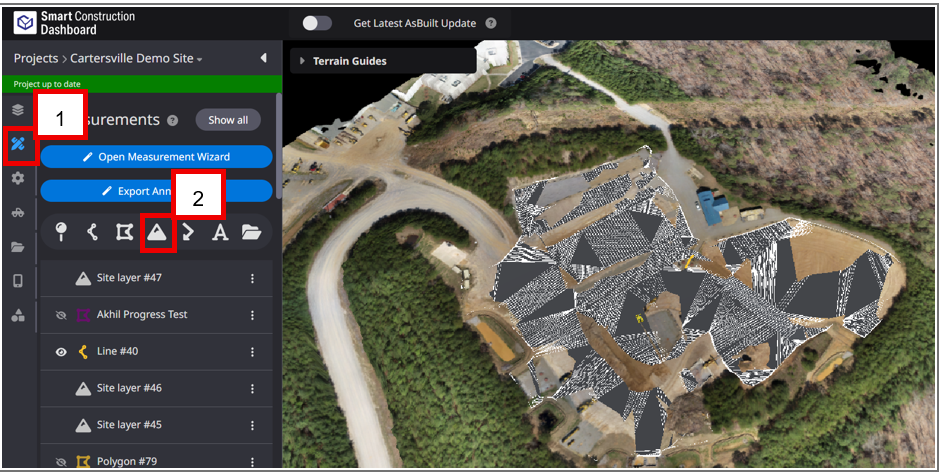

1. Click on the measurement tool in the side panel.
2. Select SITE measurement from the annotations.

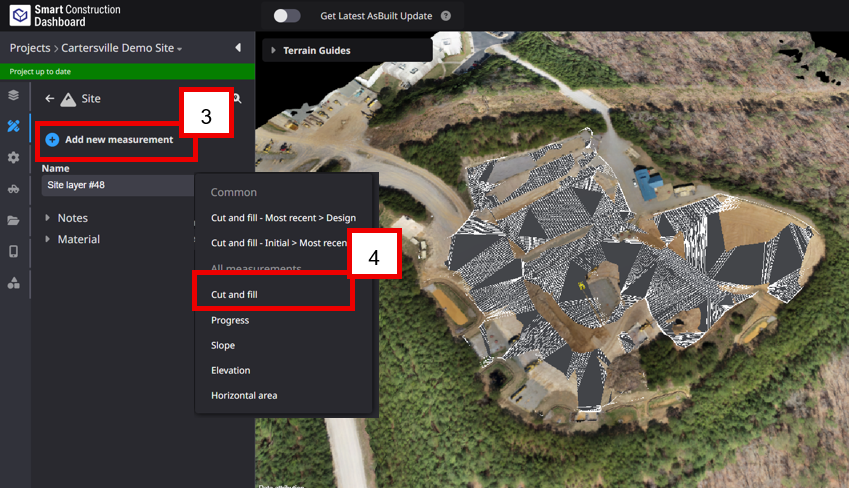

3. Click “Add Measurement”.

4. Select “Cut and Fill”.

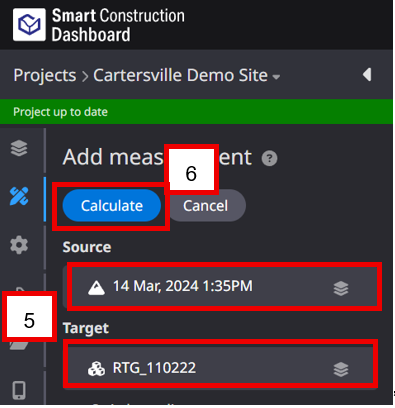

5. Select “Source and “Target” surface you would like to compare.

6. Click “Calculate”

7. The calculation result will be displayed.
